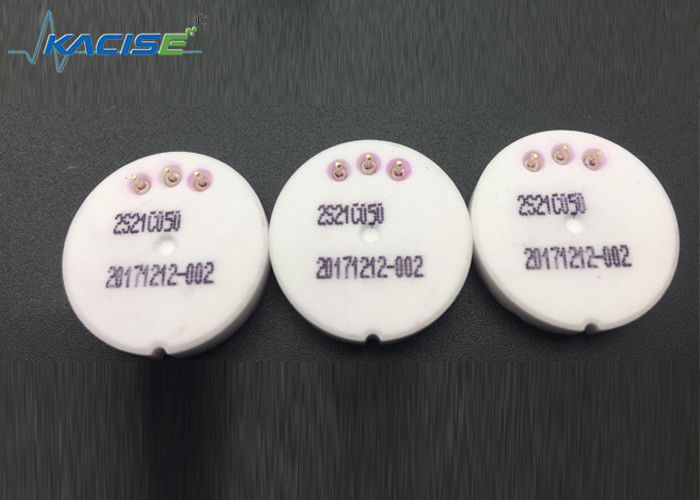

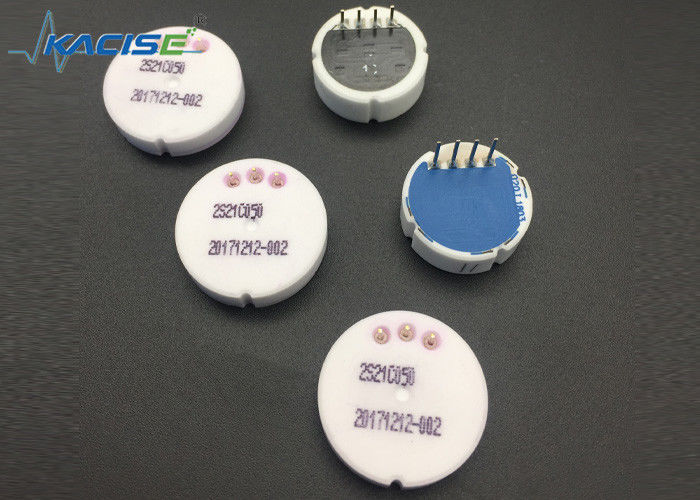

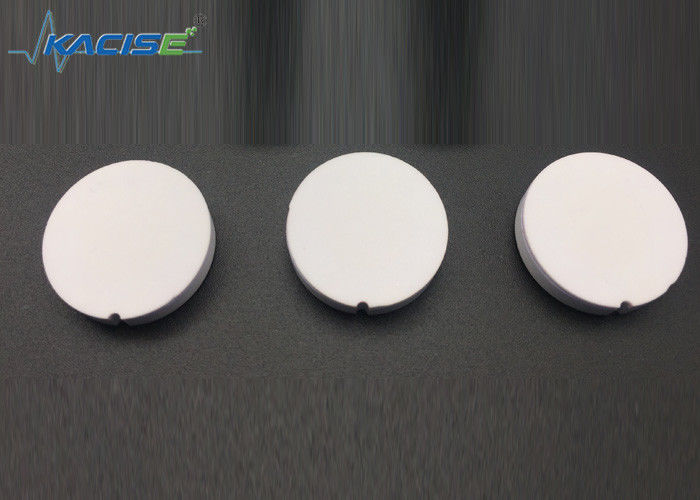

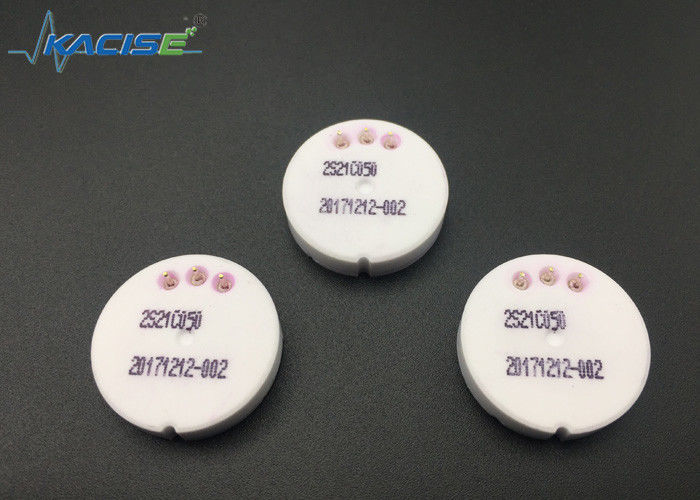

CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors

CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors

piezoresistive pressure transmitter

explosion proof pressure transmitter

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

CE

Model Number:

CCP serices

Contact Us
Request A Quote
Product Details
Model Number::
CCP Series
Accuracy::
±0.5%FS,±1.0%FS,±1.5%FS
Pressure Range::
0.5MPa,1.0MPa,10MPa
Type Of Pressure::
Gage,Absolute
Shape::
Circular
Dimensions Of Chip (mm)::
21
Highlight:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
2000 Pieces per Week
Product Description

CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors



1. Product Description



CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors 0



Pressure sensors are crucial components employed in various industries, and among the three main sensor types, ceramic capacitive pressure sensors stand out. Traditional silicon piezoresistive products face challenges in maintaining measurement accuracy and long-term reliability in high-temperature and corrosive testing environments due to their structural and material characteristics. Ceramic capacitive pressure sensors address these drawbacks, ensuring accurate measurements and long-term reliability in such challenging conditions.



These sensors utilize ceramic as the sensitive element, employing a capacitive structure for non-intermediate liquid dry measurement. The pressure-induced changes in capacitance values serve as the basis for pressure measurement. In contrast to conventional silicon piezoresistive sensors, ceramic capacitive sensors excel in adapting to diverse measuring media environments. They maintain high measurement accuracy over a broad temperature range (-40℃ ~ 125℃). Applications for these sensors span across automotive systems (oil pressure, transmission pressure), petrochemical (air conditioning pressure), pipeline pressure, and industries such as food and medical intake pressure, as well as water pipe pressure.



2. Details



Shape and Dimensions



CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors 1



Product Identification



CCP serices capacitive ceramic pressure elements circular 21mm chip Pressure sensors 2



Techinical parameters



Pressure range 0.1~10Mpa
Response time <1mS
Total error(Nu-linertiy+hysteresis+repeatibility) 0.1...0.2FS%
Isolation >4KV
Isolation resistor@100VDC >500M
Temperature drift ±0.01 %FS/℃
Long term stability <0.1% FSO/year
Working temperature -40~125℃



3. Feature



● Ceramic capacitor type

● Measurement without intermediary liquid
Fast response and high accuracy
● High reliability
● AEC-Q200D verified



4. Typical Application



● Pressure instrumentation

Pneumatic and hydraulic equipment

Automobile and air compressor

Biomedical instrument

Refrigeration and HVAC control

Household appliances and consumer electronics

Ships and marine systems

Aircraft and avionics systems
