Screw Thread Connection ±0.25 Accuracy Small Size Differential Pressure Sensors with ±5kPa……±10000kPa pressure Range

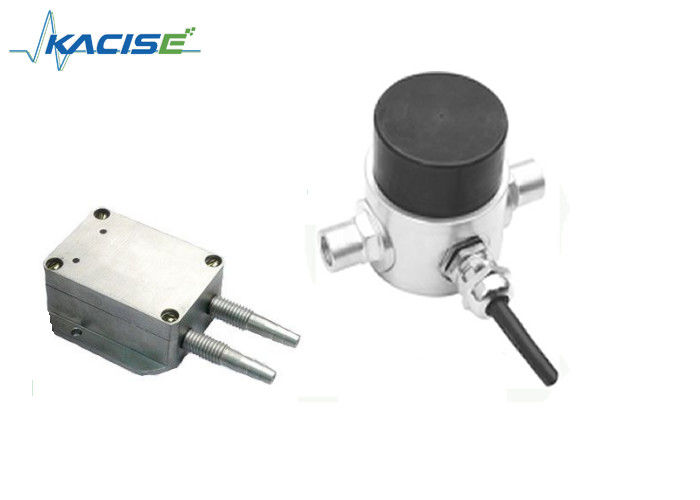

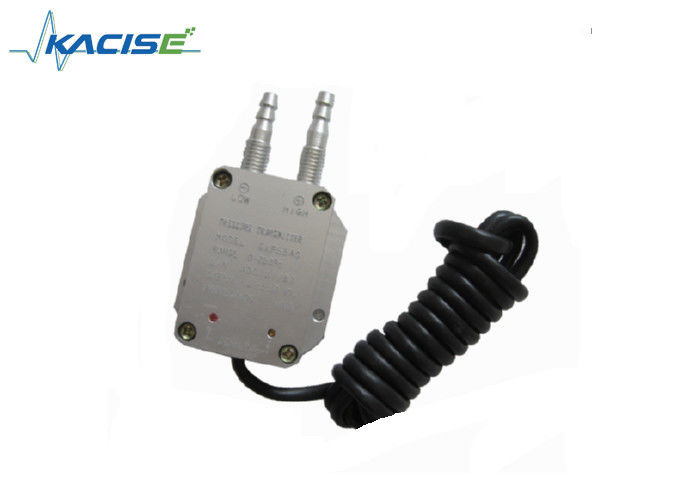

GXPS500D Multiple inner/outer screw thread connection Type ±0.25 accuracy  Small size Differential Pressure Sensors with ±5kPa……±10000kPa  pressure Range
Introduction

The GXPS 500D series differential pressure transmitter is a highly reliable, high stability,

high-precision range differential pressure transmitter. Widely used in the differential detection of

liquids, gases. This product uses the 1Cr18Ni9Ti stainless steel or brass shell structure,

zoom in imports of oil-filled differential pressure cores, specially designed to convert electrical specific

anti-high voltage, high current, high magnetic field, non-polarized outlet and other features.

Passed the intrinsically safe certificate; Isolation explosion-proof; CE certificate.

Controlled mode can be designed according to user needs in order to change the zero and span

depending on the circumstances at the scene.
Two-wire system circulation output leads non-polar; three-wire system the voltage output of the AC and DC.


Feature
​

• AC, DC output
• Accuracy : ±0.25,±0.5%F.S
• Diffused-silicon oil filled core
• Non polarized and 2 wire system output
• Multiple pressure range and output signal
• Intrinsically safe mode, explosion-proof, CE
• Multiple inner/outer screw thread connection type
• Against severe electromagnetic interference,lighting protection


Electronic interface and signals definition


Parameter




Application

• The city flood protection and water logging drainage project
• Air supply system for cogeneration plant
• Ventilation system testing for under pit
• Hydropower station ‘s water-head
• Underwater engineering
• Groundwater monitoring
• Sewage disposal
• Oil-field flooding


Ordering information

Ordering information
GX- -Range-Output-Accuracy-Power-Structure-Cable length-Package

• Range: 0~±5kPa……10000kPa = the upper limitation of the range
• Output:: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
• Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
• Power: 24VDC, 11~30Vdc
• Pressure port : GF=G1/4 female thread, G=G1/4, NF=NPT1/4Female thread, N=NPT1/4
• Electric connection: C=Cable, CW=waterproof joint outlet
• Cable length: XXm=XX meter 1-150m
• Static pressure: 3, 5, 10 times nominal pressure, 20MPa (note: pipeline pressure)

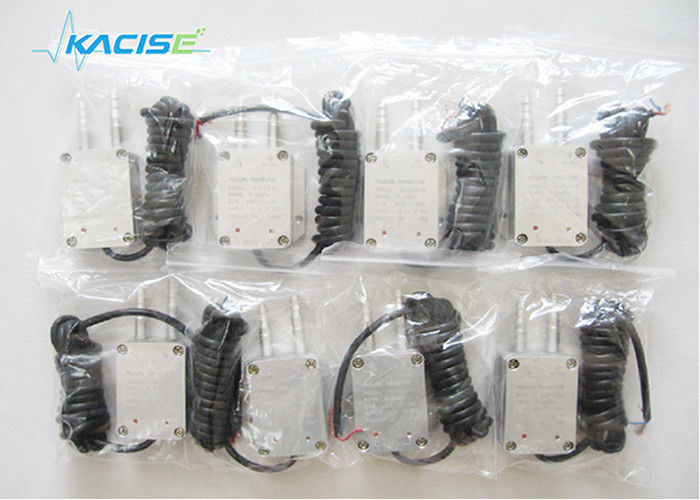

• Package: Bb, Foam
