Place of Origin: | Shaanxi, China (Mainland) |
Brand Name: | KACISE |
Certification: | CE |
Model Number: | GXPS400M |
Minimum Order Quantity: | 1PIECE |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Supply Ability: | 2000 Piece/Pieces per Week negotiable |
Pressure Range: | 0~1......200mH20 | Accuracy: | 0.1%F.S, 0.25%F.S, 0.5%F.S |
---|---|---|---|
Operating Temperature: | -40°C~85°C | Output Signal: | 4~20mA 0/1~5Vdc 0~10V |
Power Supply: | 10~30Vdc 6~24Vdc/ac 11~30Vdc/ac | Medium Compatibility: | All Caustic Medium Compatible With 1Cr18Ni9Ti |
High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |
Application
Feature
Introduction

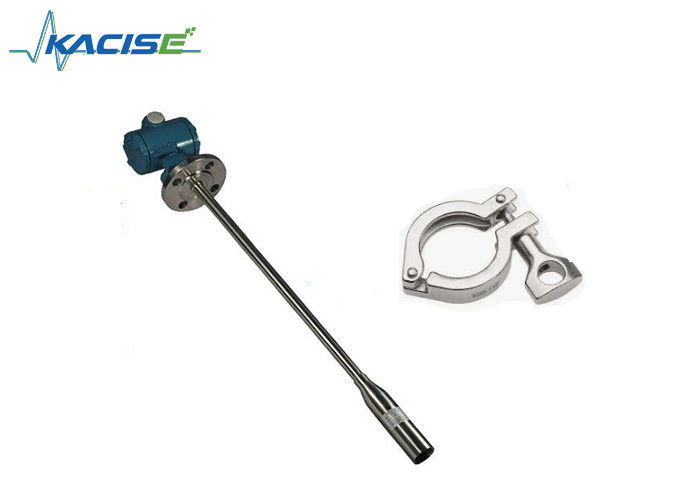

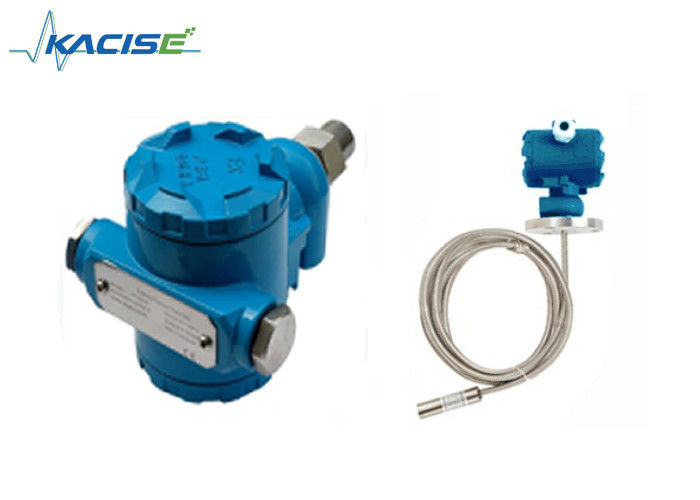

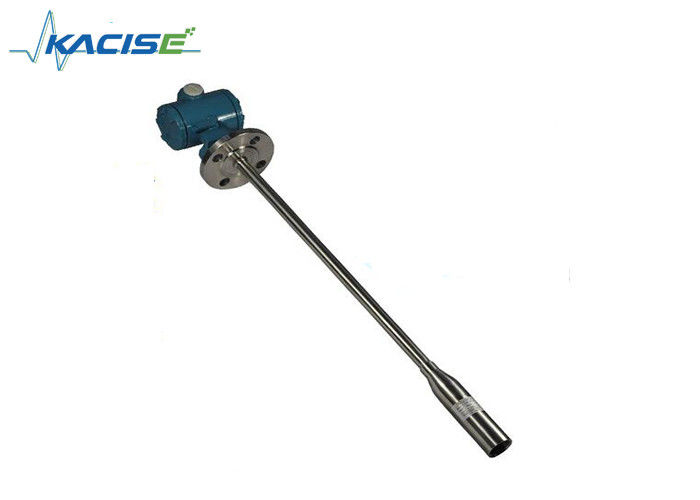

GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.
The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
The intrinsically safe certificate; explosion proof; CE certificate.
Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
Electronic interface and signals definition
Rear cover inside connection terminal definition | ||||
Mark | + | - | ||
Current | 24Vdc | 4~20mA | Shielded | |
Voltage | 24V(+) | Vout | 24V(-) | Shielded |
Parameter
Spec. | Value | |||
Pressure range |
0~1......200mH20 9.8KPa…1900KPa 0.09bar…19.6bar 0.09atm…19.3atm 1.4psi… 284psi 2.8inchHg…579inchHg |
|||
Load pressure | 1.5 times nominal value pressure | |||
Rupture pressure | 3 times nominal value pressure | |||
Accuracy | 0.1%F.S, 0.25%F.S, 0.5%F.S | |||
Stability | Typical value 0.1%F.S/year, Max. 0.2% F.S | |||
Operating temperature | -40°C~85°C | |||
Compensation temperature | -10°C~70°C | |||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
Electrical performance | 2 wire system | 3 wire system | ||
Output signal | 4~20mA | 0/1~5Vdc | 0~10V | |
Power supply | 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac | |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
Insulation | >100M Ω@50V | |||
Electric strength | 500V@60 second | |||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Electrical connection | Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68 | |||
Pressure port | Submersible type, transmitting box wellhead connection dimension M27×1.5 | |||
Pressure type | G | Response time: 10ms | ||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
