| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KXPS01 |
| Minimum Order Quantity: | 1 Piece/Pieces negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Week |
| Environment Temperature: | （25±1）℃ | Atmospheric Pressure: | (86~106) KPa |
|---|---|---|---|
| Power Supply: | 1.5mADC | Housing Material: | SS 316L |
| Range: | -100kPa…0kPa～20kPa…70MPa | Power Supply: | （1.5±0.0015）mA DC |
| High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |
||

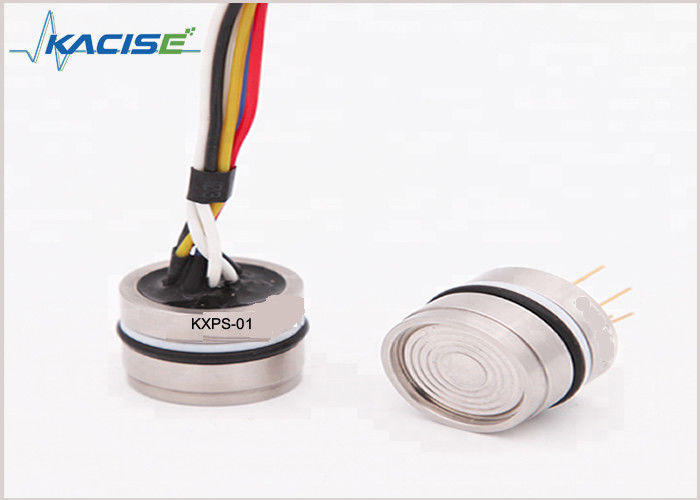

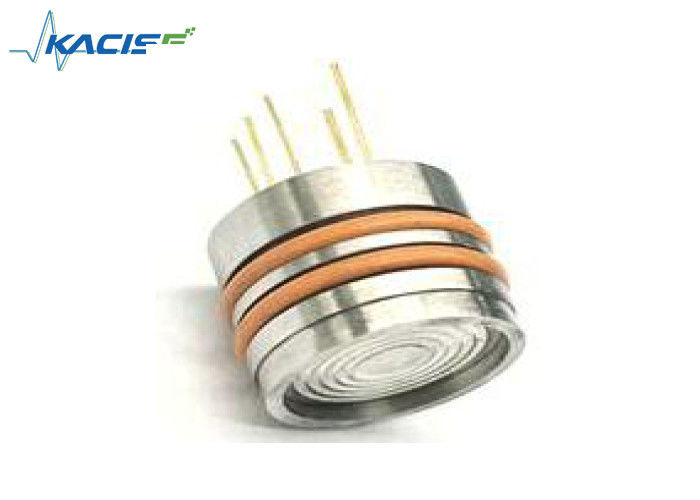

Temperature And Pressure Double Parameter Output Pressure Sensor With Imported Chips
Instruction
OEM temperature pressure double output metal film isolation pressure
The sensor core, with precise measurement of temperature and pressure, has a strong mutual Transmutability, the overall size is φ19mm.This series can be reliably applied to hydraulic systems, industrial process control and application in the hydrological industry..
Feature
Pressure measurement range -100kPa...0kPa～20kPa...70MPa
Temperature pressure double parameter output
Imported chips, laser trimming Φ19mm×15mm universal
Outline structure(unit: mm)
Parameter
Installation recommended(unit::mm):
Electrical connection
Parameters
Selection
