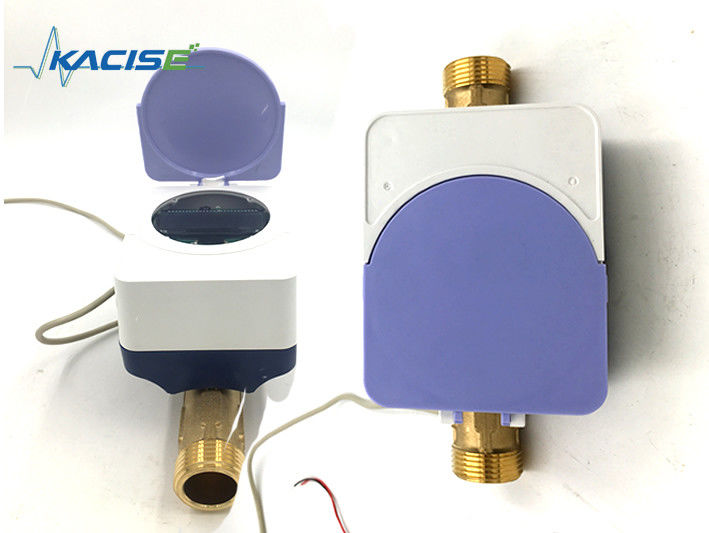

Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500

Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500

  • Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500
  • Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500
Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE / ISO / Explosion-proof
Model Number: KUHM2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton / Wooden Box
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
DN(mm): DN15~DN40 Pressure: 1.6MPa
Connection: DN15~DN40 Threaded Communication: M-bus / Impulse Output / Radio 434 / 868MHz
Range Ratio: 250 / 400 / 500 Protection: IP68
Accuracy: Class 2 Power Supply: High Power Lithium Battery
Battery Life: >10 Years
High Light:

ultrasonic water flow meter

,

m bus water meter

ODM / OEM Range Ratio R250 / R400 / R500 Ultrasonic Water Meter Battery Life Exceed 10 Years





Description



The ultrasonic water meter represents an innovative category of water meters designed to assess changes in speed by detecting the time difference as ultrasonic beams propagate both downstream and upstream in water. Subsequently, the device analyzes and processes the flow rate of water, enabling precise calculations of water discharge. This technology offers a more advanced and accurate method for measuring water consumption compared to traditional water meters.



The KUHM2100 is an advanced and highly precise ultrasonic water meter designed for residential tap water consumption measurement. Distinguished by its absence of moving parts, this meter utilizes the transit time method for ultrasonic water measurement. The entirety of the measurement process, including references, readings, calculations, and data communication, is overseen by a sophisticated, specially designed electronic circuit.

Noteworthy features of the Cube ultrasonic water meter include its lack of moving components, an IP68-rated register for enhanced durability, and a large and informative LCD display. The display makes it easy to read data and promptly identify any alarms or notifications. Overall, the KUHM2100 represents a cutting-edge solution for accurate and efficient residential water consumption measurement.





Features



Low initial flow rate, wide range ratio, high measuring accuracy and stable operation.

Internal no moving parts open flow element, not affected by impurities in water, long service life. The output communication function is complete, Meeting all kinds of communication and wireless networking requirements.

With excellent small flow detection ability, it can solve many problems of traditional water meters. It is more suitable for gradient water charge, More suitable for saving and rational utilization of water resources, and has a broad market and use prospect.





Specifications

Parameter Unit Data value
Nominal Diameter   DN 15                     DN20                     DN25

Start flow rate M3/h 0.002                      0.002                      0.005
Qmin (Q1) M3/h 0.010                      0.010                      0.016
QTransitional (Q2) M3/h 0.016                      0.016                      0.025
Qmax/permanent (Q3) M3/h 2.5                          2.5                          4.0
Qoverload(Q4)   3.125                      3.125                      5.0
Range ratio=Q3/Q1   250                         250                         250
Metrology accuracy   2 class                    2 class                    2 class
Q1~Q2 error   <3%                        <3%                        <3%
Q2~Q4 error   2%                           2%                          2%
Max working pressure MPa 1.6MPa                   1.6MPa                   1.6MPa
Pressure loss KPa <25                          <25                         <25
Temperature 4℃-65℃                  4℃-65℃                 4℃-65℃
humidity range %RH <95                          <95                          <95
Channel length mm 165mm                    195mm                    215mm
Maximum registration (LCD) M3 99999.999
Min instant-flow reading (LCD) M3/h 0.001
Max instant-flow reading (LCD) M3/h 9.999
Battery
Battery type   Lithium
Battery life Year >10
Smart function
Communication   M-bus/Impulse output/868 LoRa
Temperature compensation   YES
Mechanics
Channel material   Brass body
Water & dust proof   IP68
Thread pattern mm 33*2.309 33*2.309 33*2.309

Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500 0

Dimensions



Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500 1






Communication Way:Mbus (CJ188),

RS-485, RS232, IR (optical),

Customized extension: FM, GPRS, LoRa, etc. wireless.

Ultrasonic Battery Powered Water Meter , Digital Water Meter Range Ratio R400 / R500 3
