Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
KACISE
Certification:
CE,ISO
Model Number:
KWS-800

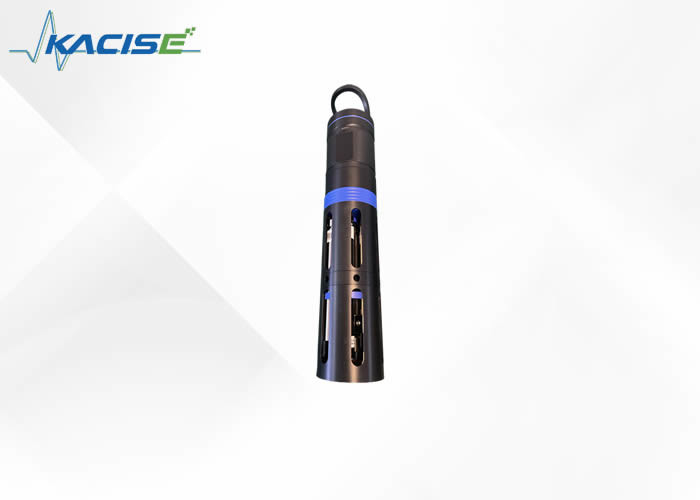

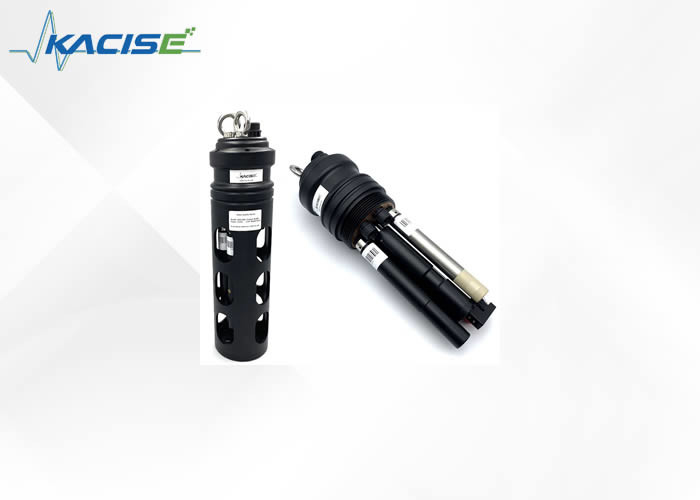

Online multi-parameter Water Quality Sensor
Applications
The Kacise KWS-800 series of multi-parameter water quality sensors (with seven selectable parameters) is designed in an all-in-one style. Each sensor is equipped with a waterproof connector. Calibration data is saved in the sensor for on-site calibration and replacement. Up to 6 Kacise digital sensors can be connected simultaneously, including optional fluori-dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, and oil in water sensors. It is equipped with an automatic cleaning device to remove air bubbles and prevent microbial growth, and can easily meet the requirements of various water environment monitoring such as rivers, lakes, oceans, and groundwater. Extremely reliable, it can operate for months without maintenance in an unmanned environment.
Feature
Dimension
Technical Specifications
| Multi-parameter sensor other information |
Main body information |
Support up to 6 sensor access, 1 central cleaning brush. Probe and brush can be disassembled, free combination. |
|
| Size | Φ84mm*476mm | ||
| Operating temperature | 0~50℃ | ||
| Calibration data | The calibration data is stored in the probe, which can be disassembled for calibration. | ||
| Output | RS485 Modbus | ||
| Power supply | Complete machine:DC 12-24V,≥1A；probe:9-24V,≥1A | ||
| Full load power consumption |
0.8W (not rotating brush), 2W (rotating brush) | ||
| Cable length | 10 meters (default), customized | ||
| Self-clean brush | Default cleaning interval is 30 minutes, adjustable cleaning interval settings available. | ||
| Casing | POM, titanium alloy, anti-fouling copper | ||
| Cable length | Standard 10m, customizable 5m, 15m and 30m | ||
| Alarm | Internal power supply abnormal alarm, internal communication abnormal alarm, cleaning brush abnormal alarm. |
||
| IP Grade | IP68 | ||
| Fluorescent Dissolved Oxygen probe |
Range | 0-20mg/L or 0-200% saturation | |
| Accuracy | <1% or ±0.3mg/L | ||
| Max. water depth | 40m | ||
| Turbidity Probe (90°Scattered Light) |
Range | 0.1-1000 NTU | |
| Accuracy | <5% or 0.3NTU | ||
| Max. water depth | 40m | ||
| Four-electrode Conductivity Probe | Range | 0~5000µS/cm | 0-100mS/cm |
| Salinity Range | 0-2.5ppt or 0-80ppt | ||
| Max. water depth | 40m | ||
| Fluorescent Chlorophyll Probe | Range | 0~500 ug/L | |
| Accuracy | <5% or 0.5 µg/L | ||
| Max. water depth | 40m | ||
| Digital PH probe (glass electrode method) |
Range | 0-14pH | |
| Accuracy | ±0.02pH | ||
| Max. water depth | 20m | ||
| Oil-in-water Probe (UV Fluorescent) |
Range | 0-150ppm | |
| Linearity | R²>0.999 | ||
| Max. water depth | 40m | ||
| ORP (Platinum electrode method) | Range | -1999~1999mV | |
| Accuracy | ±20mV | ||
| Max. water depth | 20m | ||
| Fluorescence Blue-green Algae | Range | 0-300,000cells/mL (0-2,000,000 cells/mL customized) |
|
| Linearity | R²>0.999 | ||
| Max. water depth | 40m | ||
| Built-in temperature probe | Range | 0~50℃ | |
| Resolution | 0.1℃ | ||
