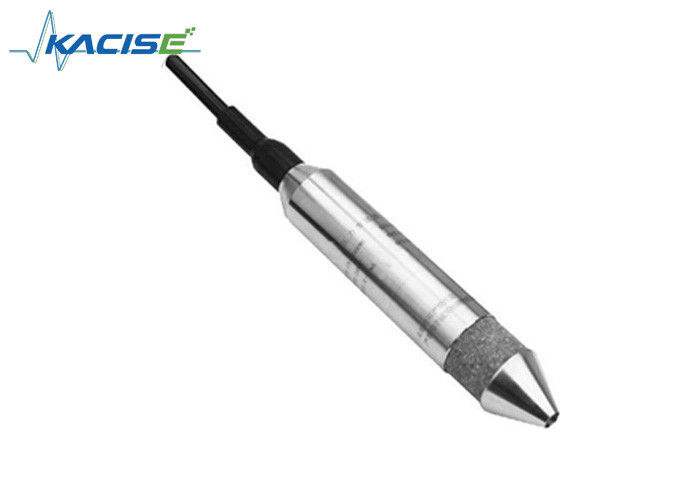

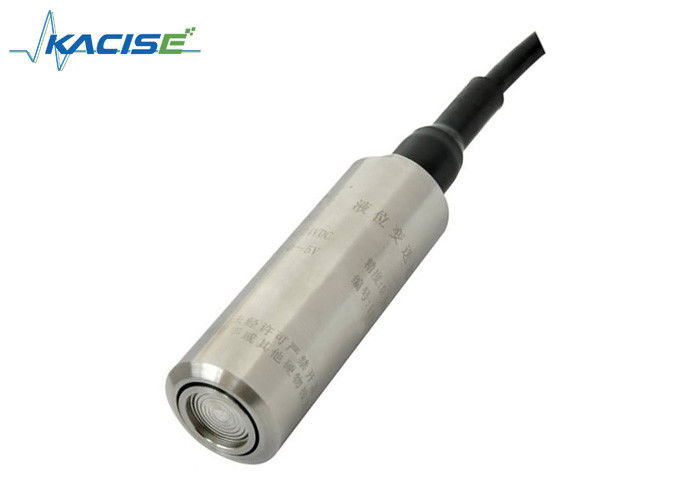

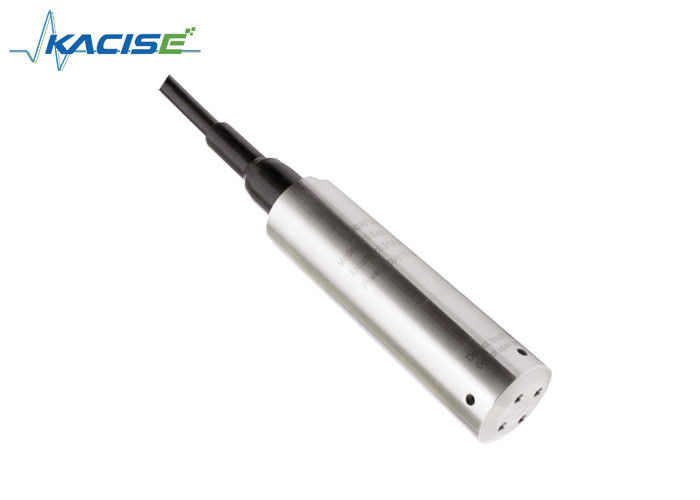

High Accuracy Submersible Multiple Liquid Level Sensor GXPS400 Series

GXPS400 Series High Accuracy Submersible Liquid Level Sensor

Description
 GXPS400 series liquid level sensor is an input type liquid level sensor, the liquid level gauge measured by the liquid is proportional to the height of the liquid principle, the use of advanced pressure sensitive components made, the static pressure into electrical signals, and then through temperature compensation and linear correction, converted into standard electrical signals. Its characteristics are wear resistance, oil resistance, acid and alkali resistance, high pressure resistance, it has a high strength cable, widely used in the ocean, lakes, rivers, groundwater, sewage treatment, water plants and other hydrological monitoring of various fields of liquid level measurement.
GXPS400 has passed the intrinsically safe test, explosion-proof test and CE.

1. Technical Features:

• High accuracy: ±0.25%F.S, ±0.5%F.S
• Adopts diffused silicon oil-filled core
• Submersible type for flexible use;
• Multiple range and signal output for choose;
• Lightning electric protection can be adopted (optional)
• Intrinsically safe and explosion proof can be adopted (optional)

​
2. Electrical Interface and Signal Definition:


3. Technical Specification:



4. Model Selection:



5. Applications:


• Deep well level measuring
• Hydrologic measurement for river, lake, sea
• Sewage treatment
• Cloudy level measuring
• Fluid reservoir level measuring
• Water-saving irrigation
• Circulating liquid consumption monitoring
• Diversion project
