| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KCZ-301 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton / Wooden box |
| Delivery Time: | 7 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Capacity: | 10, 20, 30, 50, 100, 200N | Sensitivity: | 2.0±10%mV/V |
|---|---|---|---|
| Zero Balance: | ±0.02%F.S | Non-linearity: | 0.05%F.S |
| Material: | Aluminum Alloy Or Alloy Steel | Theory: | Resistance Sensor |
| Structure: | Compact | IP Class: | IP69 |
| High Light: | load cell weight sensor,Tension Load Cell,strain gauge weight sensor |
||

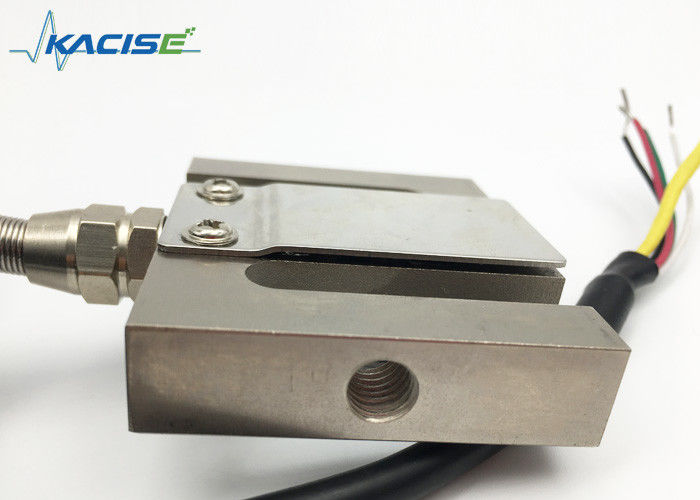

KCZ-301 S type load cell
Features
Model:KCZ-201
Small size, easy to use
Made of Aluminum alloy or Alloy steel
Capacity:1kg~200kg
Tension and compression load cell
High comprehensive precision, high stability
Simple structure, easy to install
Applications
Automotive press ift, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system.
Technical Specifications
| Capacity | 10, 20, 30, 50, 100, 200N |
| Sensitivity | 2.0±10%mV/V |
| Zero balance | ±0.02%F.S. |
| Non-linearity | 0.05%F.S |
| Hysteresis | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Creep (30min) | 0.05%F.S |
| Temp.effect on output | 0.05%F.S/10℃ |
| Temp.effect on zero | 0.05%F.S/10℃ |
| Input impedance | 350±310Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 300%F.S |
| Cable size | Φ2x4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless steel |
| IP class | IP67 |
| Cap (N) 5, 10, 20 | Need casing |
| Cap (N) 30, 50, 100, 200 | Casing is optional |
Dimensions and Connection
Mounting dimension
| Model | Load Deflection | Natural Frequenc | Weight |
| T318-10N | 0.18mm | 11kHZ | 106g |
| T318-50N | 0.18mm | 14kHZ | 106g |
| T318-100N | 0.18mm | 17kHZ | 106g |
| T318-200N | 0.18mm | 26kHZ | 106g |
| T318-500N | 0.18mm | 50kHZ | 106g |
| T318-1000N | 0.18mm | 64kHZ | 106g |
