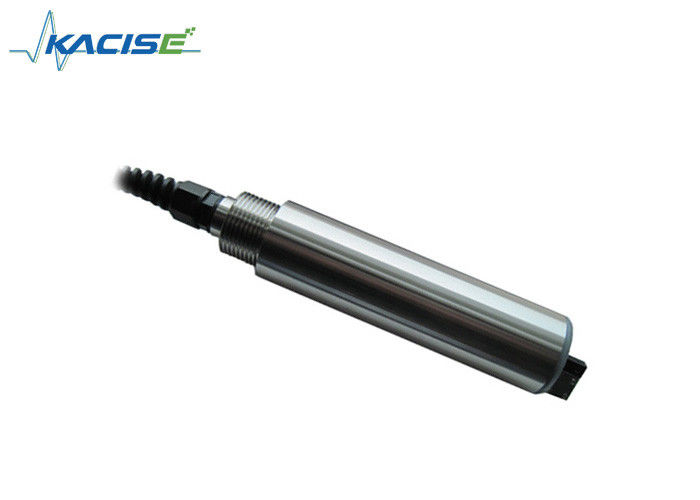

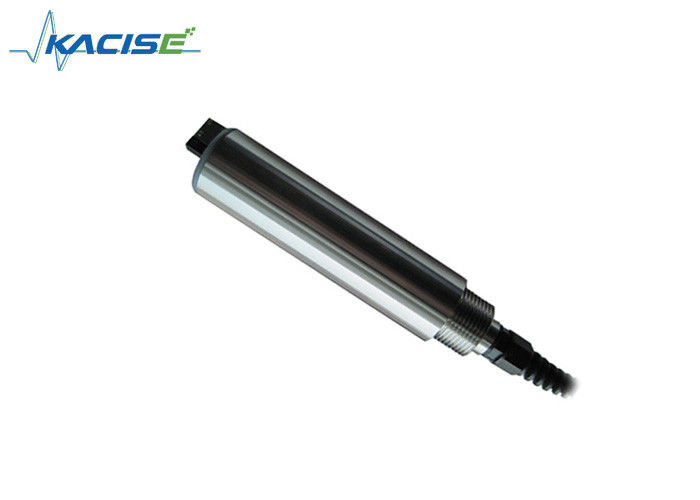

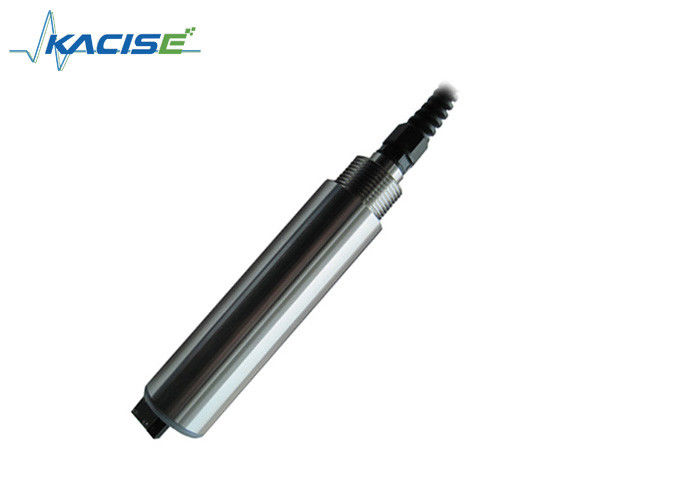

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output

  • Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output
  • Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output
  • Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output
Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output
Product Details:
Place of Origin: china
Brand Name: Kacise
Certification: ce
Model Number: Kws-400
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~400ug/L Resolution: 0.1 µg/L
Accurate: 1% Output: Support RS-485, MODBUS Protocol
Power Supply: DC 5~12V, Current <50mA Probe Cable Length: 10 M, Customizable 5 M, 15 M And 30 M Cable
High Light:

water turbidity sensor

,

oil in water sensor

Online Fiber optic chlorophyll sensor



1. Applications

Chlorophyll and metallic chlorophyll are choroid organic substances which can effectively capture light energy and play important biological activities. Because chlorophyll and metallic chlorophyll have many application prospects, their electrochemical properties have received extensive attention and research.

The fiber chlorophyll sensor uses the principle of fluorescence to illuminate the water body through a high-energy LED light source according to the spectral absorption characteristics of chlorophyll a, to stimulate the water body chlorophyll a to generate fluorescence at a specific wavelength and measure the concentration of chlorophyll a in the water. The sensor fiber structure has excellent repeatability and stability and is not susceptible to ambient light. Eliminate air bubbles with an automatic cleaning brush and reduce the impact of contamination on the measurement, long-term online use, longer maintenance intervals and better stability



2. Introduction

Kacise chlorophyll sensor, developed based on advanced fluorescent sensing technology, has the advantages of high sensitivity, high linearity, low noise and other indicators compared to the international mainstream similar products; especially the KWS-400B online self-cleaning chlorophyll sensor is integrated with an automatic cleaning brush , Integrated design, with solid structure, efficient power management, stable data performance, free from frequent maintenance and calibration; can be used online for a long time.

It can be widely used in the monitoring, investigation and research of algae and phytoplankton in rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources and other scenes.

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 0

3. Feature



Digital sensor, RS-485 output, support MODBUS

With automatic cleaning brush to prevent contamination and eliminate air bubbles

Direct measurement is easier than traditional analysis methods

Continuous online monitoring and real-time control of water quality



Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 1

Integrated sensor field application example



4.Technical Specifications



Item Fiber Chlorophyll Sensor Self-Cleaning Chlorophyll Sensor
Model KWS-400A KWS-400B
Principle fluorescence principle
Measuring Range 0~400ug/L or 0~100RFU
Resolution 0.01 µg/L
Protection Rate IP68
Max. pressure 6 bar 3 bar
Temperature Range 0 ~ 50℃
Output Support RS-485, MODBUS protocol
Power Supply DC 9~24V, 1A
Working current <50mA (when not brush); <200mA (when brush)
Installation Input type, circulation type Input type
Size Φ22mm*175.5mm Φ36mm*198.2mm
Cable Length 10 m, customizable
Self-Cleaning System NO Yes
Calibration 0-point, one-point or two-point calibration
Casing Material Stainless or Titanium



                   KWS-400A                                      KWS-400B

Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 2Digital Sensor Fiber Optic Chlorophyll Sensor Kws-400 RS-485 Output 3
