| Place of Origin: | CHINA |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measuring Range: | -999~999mV | Accurate: | ±20mV |
|---|---|---|---|
| Output: | Support RS-485, MODBUS Protocol | Power Supply: | DC 5~12V, Current <50mA |
| Probe Cable Length: | 10 M, Customizable 5 M, 15 M And 30 M Cable | Temperature Range: | 0 ~ 50℃ |
| High Light: | water turbidity sensor,oil in water sensor |
||

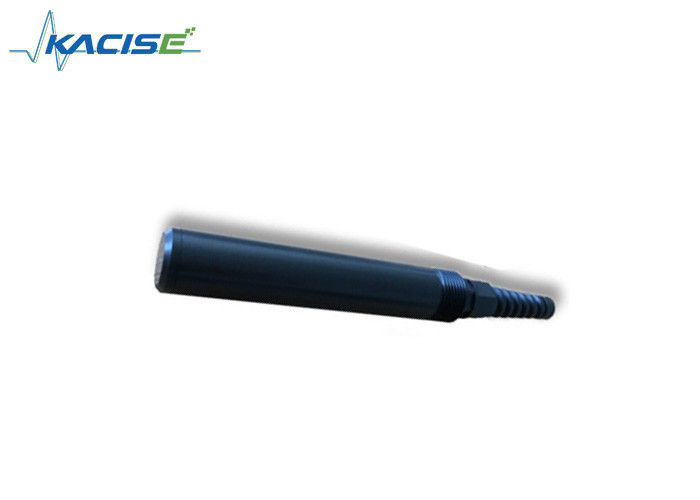

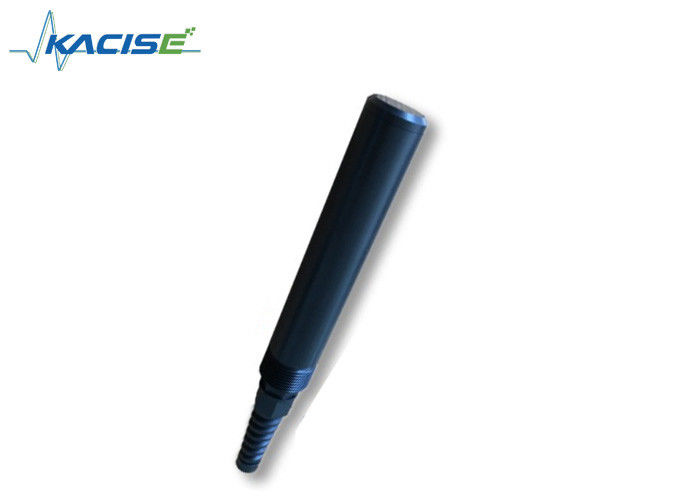

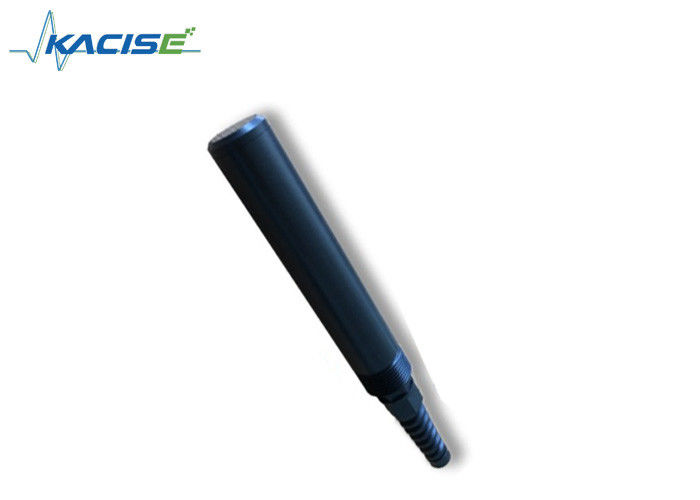

kws-500 Online digital ORP sensor
1. Applications
The Kacise ORP sensor features an industrial in-line electrode with a flat front end for easy cleaning. Built-in temperature sensor for online long-term monitoring environment. The sensor adopts RS485 output and supports Modbus, which can realize networking and system integration without controller.
2. Feature
Digital sensor, RS-485 output, support MODBUS
Unaffected by transmission distance for better stability
Built-in temperature sensor, automatic temperature compensation
3.Technical Specifications
| product | parameter | |
| principle | Ultraviolet fluorescence method | |
| Measuring range | -999~999mV | |
| Response time | 10 sec | |
| accurate | ±20mV | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | |
| size | Φ26*177.5 mm | |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
