Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm

Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm

    • Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm
    • Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm
    • Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm
  • Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm

    Product Details:

    Place of Origin: China
    Brand Name: Kacise
    Certification: CE,ISO9001
    Model Number: KBU601

    Payment & Shipping Terms:

    Minimum Order Quantity: 0-100
    Price: Negotiable
    Packaging Details: Carton / Wooden Box
    Delivery Time: 5~8 working days
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Supply Ability: 100
    Contact Now
    Detailed Product Description
    Principle: Ultraviolet Fluorescence Method Measuring Range: 0~20mg/L
    Response Time: 10 Sec Accurate: 1%
    Protection Level: IP68 Power Supply: DC 5~12V, Current <50mA
    Output: RS-485/MODBUS Maximum Working Pressure: 6bar
    Product Material: POM Or Ss316
    High Light:

    water turbidity sensor

    ,

    oil in water sensor

    Dissolved Oxygen Sensor In Shrimp Farm / KACISE OEM Dissolved Oxygen Sensor For Water



    Description



    The fluorescence dissolved oxygen sensor uses a new generation of fluorescence lifetime technology. Kacise independently develops high performance fluorescent materials. No anaerobic consumption, no flow restrictions, no electricity required. The solution requires no maintenance and calibration, no hydrogen sulphide, and excellent stability. Built-in temperature sensor and automatic temperature compensation. The RS485 output is suitable for networks without a controller.



    Features

    Digital sensor, RS485 output, support MODBUS, no membrane, no electrolyte, no interference, no need for frequent calibration, no oxygen, no flow restriction, built-in temperature sensor, automatic temperature compensation.



    Specifications



    product

    Online fluorescence dissolved oxygen sensor



    principle Ultraviolet fluorescence method
    Measuring range 0~20mg/L
    Response time 10 sec
    accurate 1%
    Protection level IP68
    Deepest depth Underwater 60 meters underwater 10 meters
    temperature range 0 ~ 50℃
    Output Support RS-485, MODBUS protocol
    Power supply DC 5~12V, current <50mA
    size Φ26*177.5 mm
    Probe cable length 10 m, customizable 5 m, 15 m and 30 m cable
    Fluorescent cap life 1 year
    Maximum working pressure 6bar
    product material POM or ss316



    Production



    Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm 0



    Product Picture

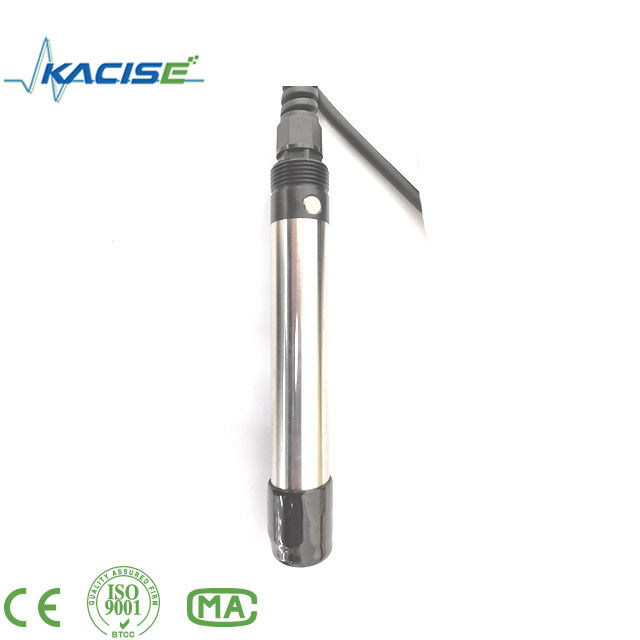

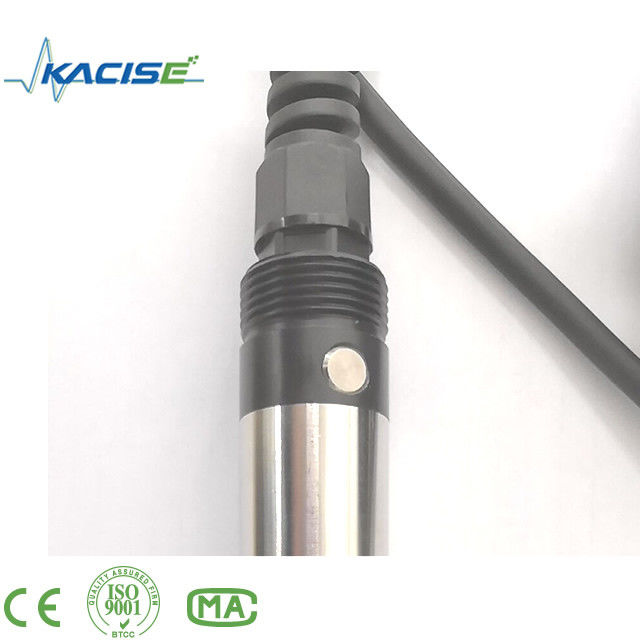

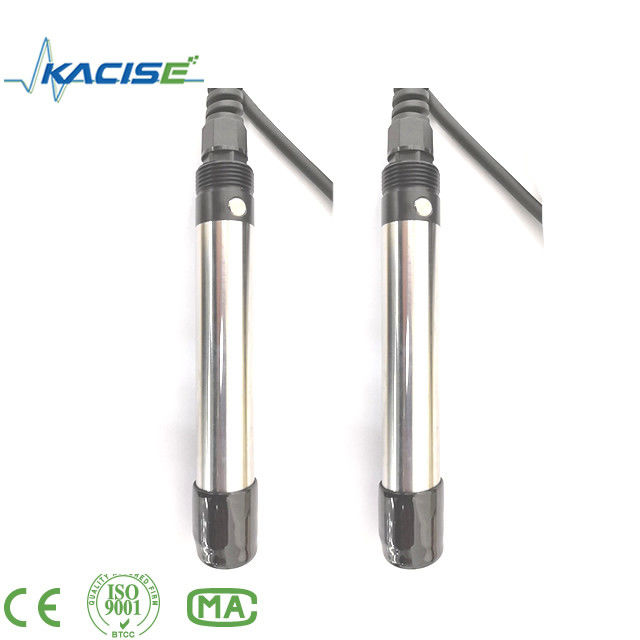

    Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm 1



    Cases



    Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm 2





    Certificate

    Optical Fluorescence Dissolved Oxygen Sensor 0-20mg/L For Shrimp Farm 3
