Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | GXPS353 |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
Supply Ability: | 1000 Pieces per Week |
Pressure Range: | 0~2bar ......600bar | Load Pressure: | 1.5times Nominal Value Pressure (1.5X) |
---|---|---|---|
Rupture Pressure: | 3times Nominal Value Pressure (3X) | Accuracy: | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S |
Operating Temperature: | -40°C~125°C | Storage Temp.: | -40~120℃ |
Compensation Temperature: | -10°C~ 80°C | Output Signal: | 4~20mA, 0.5~4.5V |
Power Supply: | 10~30Vdc | Pressure Port: | G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2 |
High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |

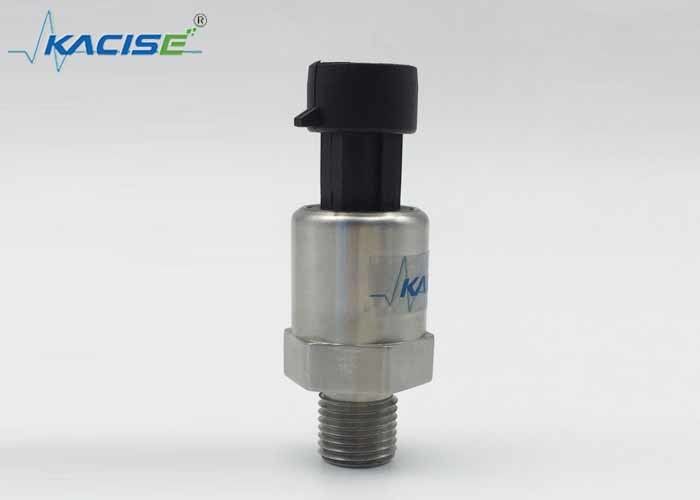

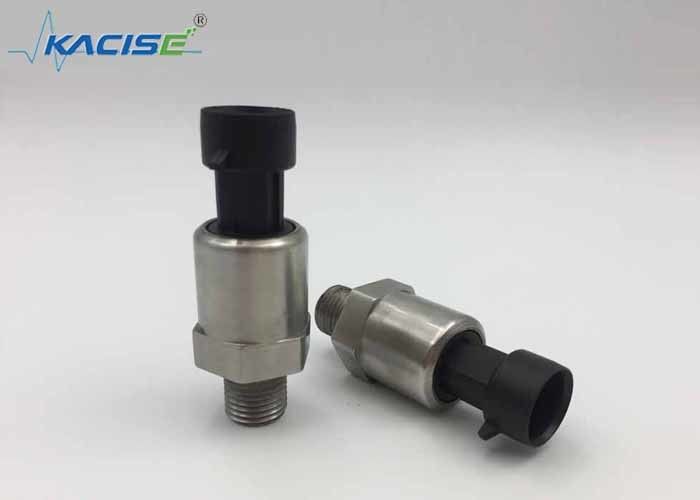

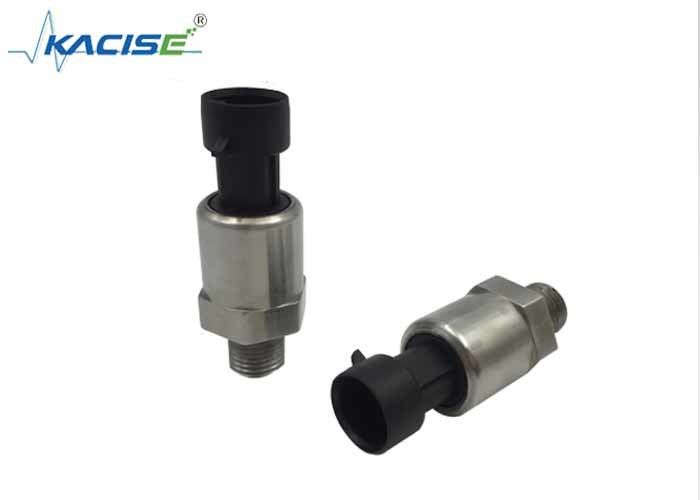

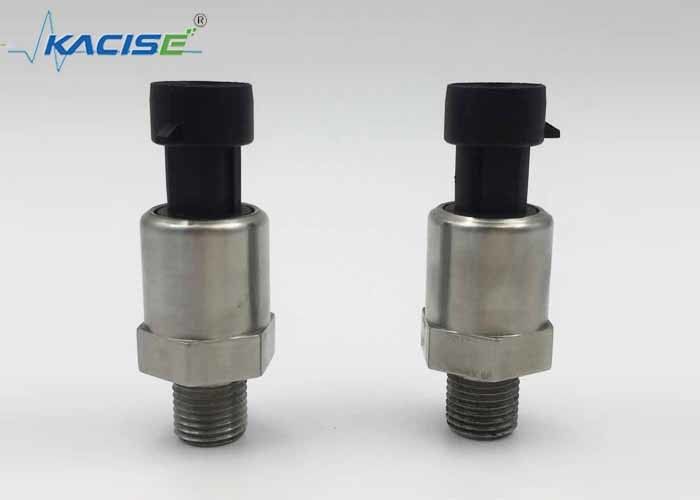

GXPS353 Refrigeration Industry pressure transmitter
1.Product Description
GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.
Standard voltage current output mode.
2. Product features:
3. Parameter
Spec. | Value | |||
Pressure range | 0~2bar ......600bar | |||
Load pressure | 1.5times nominal value pressure (1.5X) | |||
Rupture pressure | 3times nominal value pressure (3X) | |||
Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | |||
Stability | Typical value 0.5%F.S, Max. value: 1%F.S | |||
Operating temperature | -40°C~125°C | |||
Storage temp. | -40~120℃ | |||
Compensation temperature | -10°C~ 80°C | |||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
Electrical performance | 2 wire system | 3 wire system | ||
Output signal | 4~20mA | 0.5~4.5V | ||
Power supply | 10~30Vdc | 5Vdc | 10~30Vdc | |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
Insulation | >100M Ω@50V | |||
Electric strength | 500V@60 second | |||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Pressure durable | 2×106pressure circle @25°C | |||
Electrical connection | Packard, Hirsmann , air plugs, fixed cable, water proof cable | |||
Pressure port | G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2, | |||
Pressure type | G, S | Response time: 10ms | ||
Certificate | Intrinsically safe mode E, RoHS; CE | |||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
4.Application
