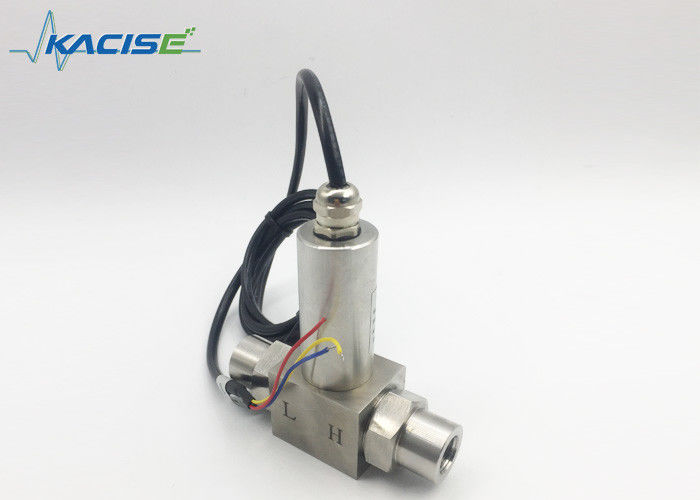

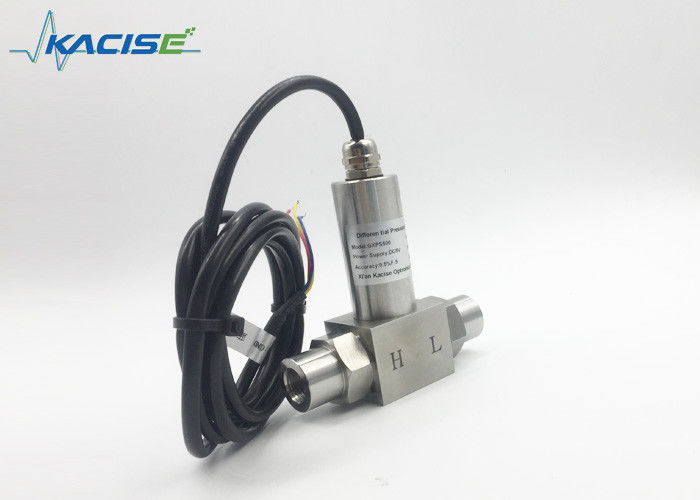

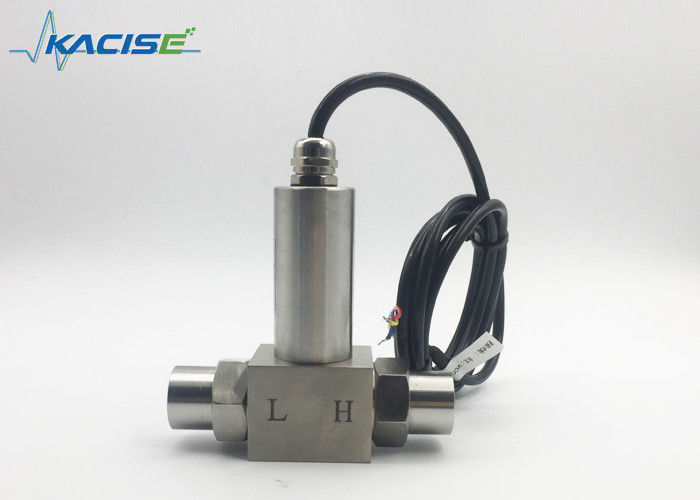

Female Thread Precision Pressure Sensor GXPS550 With Output 0-10V

GXPS550 Female thread Internal thread differential pressure sensor with output 0-10V ​

Introduction

The GXPS 500D series differential pressure transmitter is a highly reliable, high stability,

high-precision range differential pressure transmitter. Widely used in the differential detection of

liquids, gases. This product uses the 1Cr18Ni9Ti stainless steel or brass shell structure,

zoom in imports of oil-filled differential pressure cores, specially designed to convert electrical specific

anti-high voltage, high current, high magnetic field, non-polarized outlet and other features.

Passed the intrinsically safe certificate; Isolation explosion-proof; CE certificate.

Controlled mode can be designed according to user needs in order to change the zero and span

depending on the circumstances at the scene.
Two-wire system circulation output leads non-polar; three-wire system the voltage output of the AC and

DC.

Application

• The city flood protection and water logging drainage project
• Air supply system for cogeneration plant
• Ventilation system testing for under pit
• Hydropower station ‘s water-head
• Underwater engineering
• Groundwater monitoring
• Sewage disposal
• Oil-field flooding

Feature
​

• AC, DC output
• Accuracy : ±0.25,±0.5%F.S
• Diffused-silicon oil filled core
• Non polarized and 2 wire system output
• Multiple pressure range and output signal
• Intrinsically safe mode, explosion-proof, CE
• Multiple inner/outer screw thread connection type
• Against severe electromagnetic interference,lighting protection

Electronic interface and signals definition


Parameter
