    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: KACISE
    Certification: CE,ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: Negotiable
    Packaging Details: carton or customers requests available
    Delivery Time: 5 working days after payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 3000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Output: RS485 Power Supply: 12V ±5%
    Resolution: 0.1mg/L Protection Level: IP68
    Operating Temperature: 0 ~ 50℃ Accurate: 10%

    RS485 output Multiparameter Water Quality Meters & Probes Price



    1,Applications

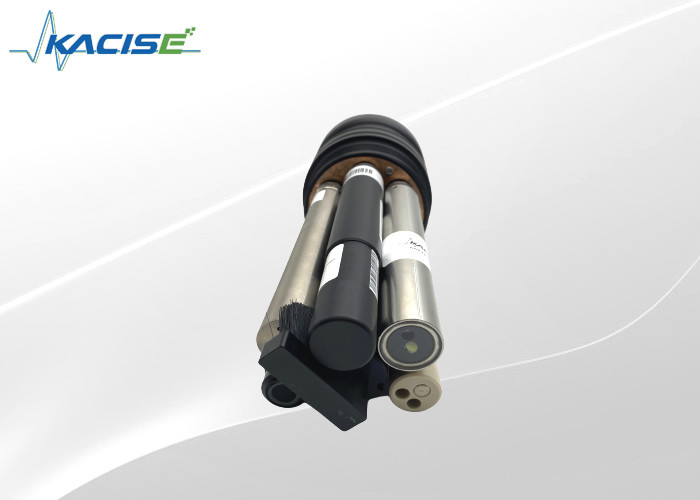

    Multi-parameter water quality sensor (seven parameters)

    Integrated design, each sensor has a waterproof connector, calibration data is stored in the sensor, can be calibrated and replaced in the field. You can connect up to 6 water quality digital sensors at the same time, with optional fluorine dissolved oxygen, four electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors. Equipped with a cleaning device to eliminate air bubbles and prevent microbial growth. Various water environment monitoring needs, such as rivers, lakes, oceans and groundwater. Excellent reliability, no maintenance, and can run for months in an unattended environment.



     2,Feature



    Digital sensor, RS485 output, support MODBUS, all calibration parameters are stored in the sensor, each probe has a waterproof connector, which can be easily plugged and replaced. Equipped with automatic cleaning function, it can effectively remove sensor surface contamination, prevent microbial growth, and be more accurate and less maintenance. Optional fluorescence dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors for long-term online monitoring. The all-in-one design allows for the simultaneous connection of six probes and seven parameters.



    Accurate 10% 	Water Quality Sensor RS485 Output Multi Parameter



    Integrated sensor field application example

    3,Technical Specifications



    Fluorescent dissolved oxygen probe range 0-20mg/L
    accurate ±0.3mg/L
    Resolution 0.01mg/L
    Fiber turbidity probe range 0-1000 NTU
    accurate 0.3NTU
    Resolution 0.1NTU
    Four-electrode conductivity probe range 1Us/cm-200Ms/cm
    accurate 1% FS
    Resolution 0.1mS/cm
    Chlorophyll sensor range 0~400 ug/L
    accurate 0.1 µg/L
    Resolution 0.1 µg/L
    Digital pH probe range 0-14pH
    accurate ±0.1pH
    Resolution 0.01
    Digital ORP probe range -999~999mV
    accurate ±20mV
    Resolution 1mV
    Oil-in-water sensor probe range 0-5000ppb
    accurate 5%
    Resolution 0.1ppb
    Ammonia nitrogen sensor probe range 0-1000mg/L
    accurate ±10%
    Resolution 0.1mg/L

    Multi-parameter sensor

    other information

    power supply 12V ±5%
    Operating temperature 0~50℃
    Protection level IP68
    Output RS485
    cable length Standard 10m, customizable 5m, 15m and 30m cable
