| DN (mm): | DN15 ~ DN1800 | Accuracy: | ±1.0% (Standard) |
|---|---|---|---|
| Power Supply: | 24VDC, 220VAC | Pressure: | 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) |
| Communication: | RS-485 / MODBUS , HART | Installation: | Flange, Clamp On, Thread, Insertion |
| High Light: | compressed air flow meter,insertion type flow meter |
||

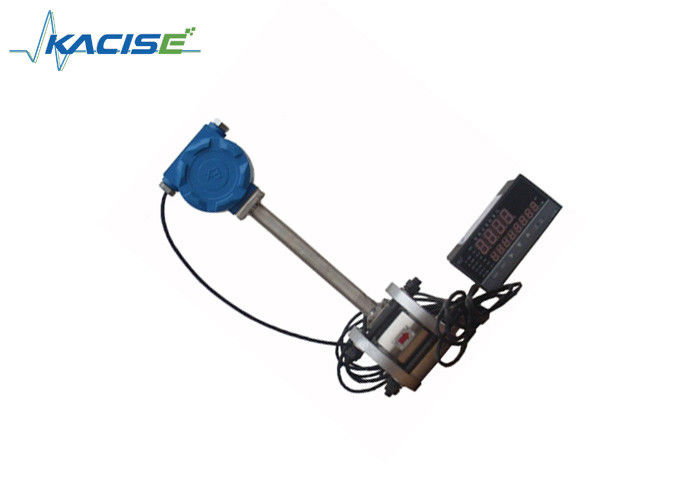

Vortex Compressed Air Flow Meter , Automatic Control Steam Flow Meter
1. General Introduction:
Vortex flowmeter is based on the"Karman vortex" principle, the use of piezo electric crystal as a measuring element of the flow measurement instruments for a variety of gas, steam, liquid flow measurement . LUGB series of vortex flowmeter specifications from DN15 to DN600, vortex flowmeter in accordance with the structural characteristics into full-tube vortex flowmeter and plug-in vortex flowmeter. In accordance with the different output signals can be divided into pulse output mode sensor and the standard current output of the transmitter.The instrument has the advantage of wide flow measurement range,high accuracy,simple structure, small pressure loss, no moving parts, etc.It is applied to the measurement of instantaneous flow and total flow of fluid in a closed pipeline.
Measurement is independent of fluid density ,viscosity,humidity, temperature pressure and conductivity There are no obstacle parts in the measuring tube no pressure loss to the tube of which the straight part is of low requirement The sensor with grounded electrode gurantees the grounding wellThe sensor with advanced processing technology is of nice resistance to the negative pressure.
2. Technical Features:
3. Structure:
4. Technical Specifications:
| Pipe Diameter | DN15~DN1800 |
| Meter Materials | 1Cr18Ni9Ti |
| Nominal pressure (Mpa) | 1.6Mpa; 2.5Mpa; 4.0Mpa |
| Measured medium temperature (℃) | -40~+250℃; -40~+350℃ |
| Environmental conditions | Temperature:-10~+55℃, humidity 5%~90%, pressure: 86~106Kpa |
| Accuracy class | liquid: reading ±0.5 |
| Measuring gas or steam: | reading±1.0,±1.5 |
| Turndown ratio | 1:10;1:15 |
| Pressure loss coefficient | Cd<2.6 |
| Output signal | 4-20mA or Pulse |
| Power supply |
sensor: +12VDC, +24VDC transmitter: +24VDC On site display: 3.2V battery |
| Signal transmission lines | STVPV3×0.3(three-wire), 2×0.3(two- wire) |
| Installation | Integrated clamping flange or flange connection |
| Transmission distance | ≤500m |
| Signal line interface | Male threadM20×1.5 |
| Explosion levels | ExdIIBT6 |
| Protection class | IP65 |
| Allow vibration acceleration | 1.0g |
