KUFS2000A2 Wall Mount Inline Ultrasonic Flow Meter
Introduction
The ultrasonic flow meter operates on the "velocity difference method," measuring liquid flow in pipes. Utilizing advanced multi-pulse technology, digital signal processing, and error correction, this flow meter adapts to industrial environments, offering convenient, economical, and accurate measurement. With high accuracy, even reaching ±0.5% with clamp installation, it is largely unaffected by various parameters of the measured medium. Notably, it addresses challenges in measuring strong corrosive, non-conductive, radioactive, and inflammable/explosive media, which other meters may struggle with.
The KUFS2000 series separated type ultrasonic flow meter is versatile, suitable for various liquids, and supports long-term online measurement without the need to cut the pipe during installation. The host comes in wall-mount, panel-mount, and explosion-proof types, while sensors include clamp-on, plug-in, and pipe types. It can also measure heat when equipped with a temperature sensor.

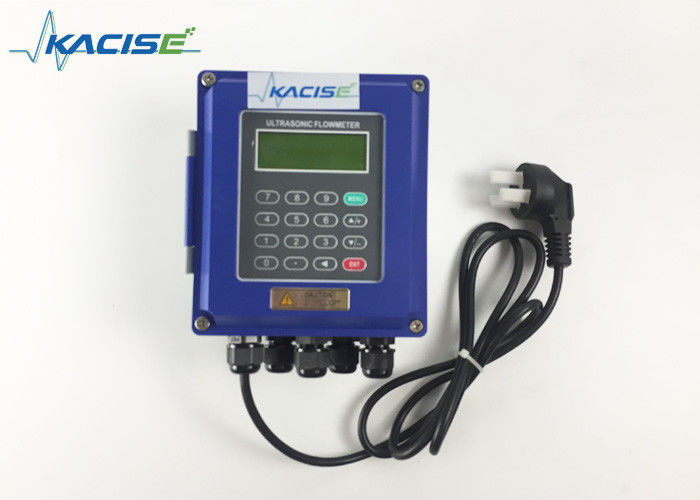

The KUFS2000A2 flow meter, designed for wall or instrument box installation, has a protection grade of IP67 and is suitable for pipe sizes ranging from DN15mm to DN6000mm.
Working Condition
| |
Main Unit |
Sensor |
| Protection |
IP67 |
IP68 |
| Humidity |
≤85%RH |
| Temperature |
-20~60℃ |
-30~160℃ |
Basic Parameters
| Accuracy |
±1% |
| Velocity Range |
0~±10m/s, Bi-directional measurement |
| Pipe Size |
DN15~DN6000 |
| Temperature |
- 30~160℃ |
| Type of Liquid |
Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material |
Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94 |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms)
1 way relay output
|
| Signal Input |
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface |
RS485, support MODBUS |
| Data Storage |
SD card regularly store the pre-set results (optional) |
| Power Supply |
DC8~36V or AC85~264V |
Sensor selection
Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.
