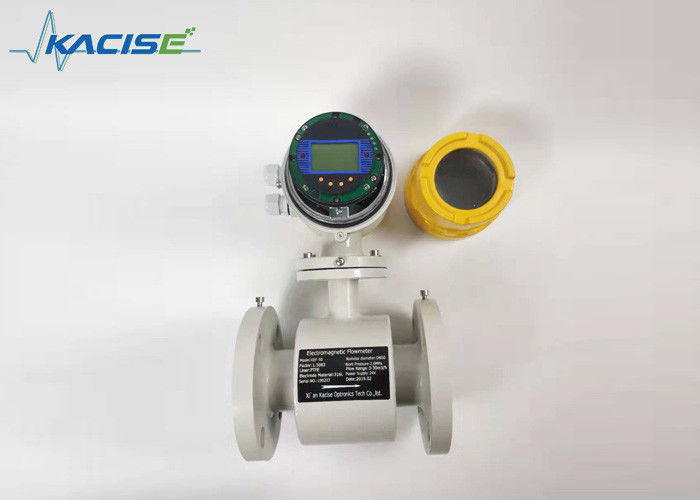

High Accuracy Electromagnetic Flow Meter Battery Operated SS304 / SS316 Housing

High Accuracy Electromagnetic Flow Meter Battery Operated SS304 / SS316 Housing

wastewater flow meter

electromagnetic water flow meter

Place of Origin:

China

Brand Name:

KACISE

Certification:

ISO / CE

Model Number:

KEF Series

Contact Us
Request A Quote
Product Details
Pressure:
1.6 Mpa ,2.5Mpa ,4.0Mpa (Special)
Temperature:
-20°C - +160 °C
Power Supply:
24VDC, 220VAC, Battery
Communication:
RS-485 / MODBUS , HART
Accuracy:
±0.2% (Customize), ±0..5% (Standard)
Electrode:
SUS316,HC,HB,Titanium, Tantalum, Etc.
Output Signal:
4~20mA / Pulse / 0~10V / Wireless
Installation:
Flange, Clamp On, Thread
Housing Material:
SS304 / SS316
Liner:
PTFE, F46, PFA
High Light:

wastewater flow meter

,

electromagnetic water flow meter

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
Negotiable
Packaging Details
Carton / Wooden box
Delivery Time
7 Working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

High Accuracy Electromagntic Water Flow Meter Battery Operated



1.Introduction



Electromagnetic Flow Meter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.
Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.



2.Features





1. No intercepting fluid parts, no pressure loss and fluid clogging.

2. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.

3. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.

4. Supply many styles of flow meters such as inline type and insertion type, etc.Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.

5. Simple structures, firm, no movable parts and long operation life.(Guarantee in 1 years)

6. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.

7. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.



3.Parameters



Pipe diameter DN6~DN2600
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S..
Repeatability Below 0.25%
Power AC: 220V, 50-60Hz; DC: +24V(Option)
Output Signals 4~20mA, Pulse, 0~5V,0~10V
Conduit connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material
Ambient Temperature Sensor -40°C ~80°C. transducer -15°C ~50°C
Ambient Humidity ≤ 85%RH (at 20C)
Cable Outlet Size M20×1.5
Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)
Power Consumption ≤2W
Protection Ratings Remote type: sensor IP68, transducer IP65.
Materials Electrode 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc.
  Liner PTFE, F46, PFA
Measuring tube SS 304, SS316
Flange SS304, SS316
Ground ring 316L (stainless steel), HC, Ti, Ta, Cu.
Connection of Flange

National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.

Tri-clamp for sanitary application

Insertion type.

EX-proof protection Exde ib ii BT2
Quality control

ISO9001-2008, CE































































4.Model selection



High Accuracy Electromagnetic Flow Meter Battery Operated SS304 / SS316 Housing 0
