| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Certification: | CE, ISO |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measuring Range: | 0-14pH | Accuracy: | 0. 1pH |
|---|---|---|---|
| Resolution: | 0.01 | Protection Grade: | IP68 |
| Output: | Support RS-485, MODBUS Protocol | Size: | Φ26*167.5mm |
| High Light: | water turbidity sensor,oil in water sensor |
||

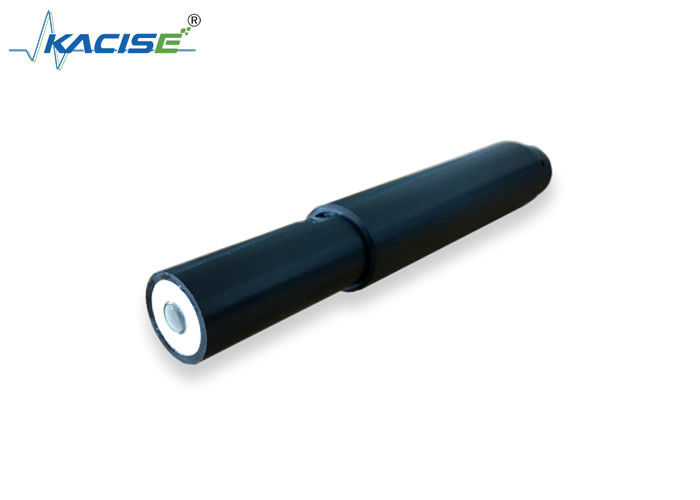

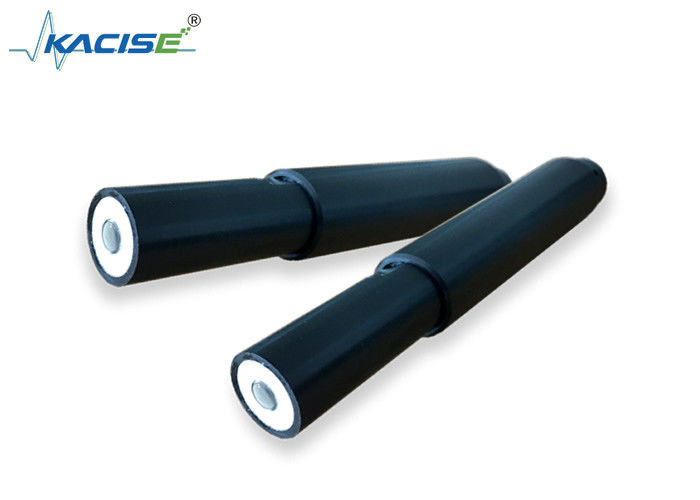

OEM Support Online Digital pH Sensor For Sewage Treatment Or Fish Pond Water Quality
Introduction
Kacise digital pH sensor with industrial wire electrode, flat front end Structure, easy to clean. Built-in temperature sensor for automatic temperature compensation, Use an online long-term monitoring environment. The sensor uses RS485 output to support, Modbus enables network and system integration without a controller.
Feature
Digital sensor, RS-485 output, support MODBUS
Unaffected by transmission distance for better stability
Built-in temperature sensor, automatic temperature compensation
Technical Specifications
| Item | Parameters |
| Measuring range | 0-14pH |
| Accuracy | 0. 1pH |
| Resolution | 0.01 |
| Protection level | IP68 |
| Deepest depth | Underwater 10 meters |
| Temperature range | 0 ~ 50°C |
| Output | Support RS-485, MODBUS protocol |
| Power supply | DC 5V~15V, current<50mA |
| Size | Φ26*167.5mm |
| Installation | Drop in |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable |
| Casing material | POM |
