Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Kacise
Certification:
CEISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates
Model Number:
GXPS400

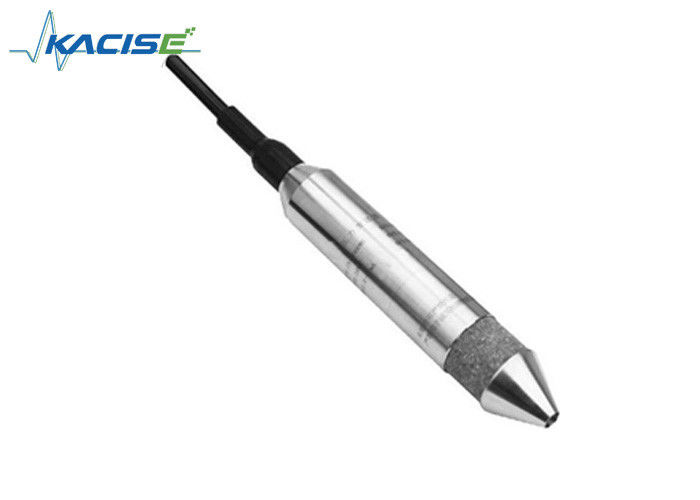

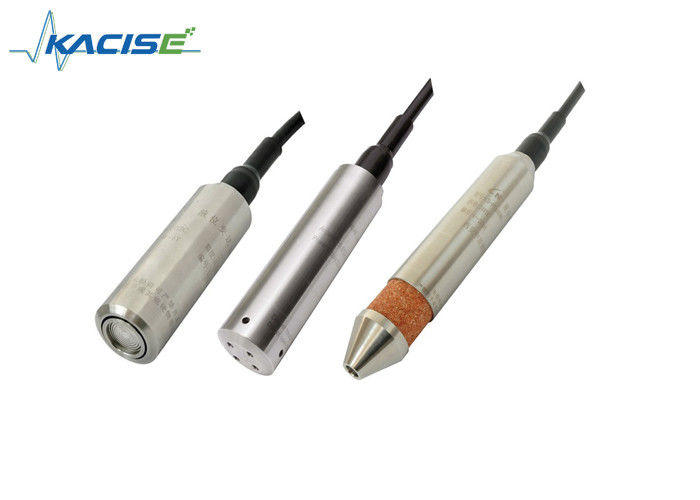

GXPS400 Submersible Liquid level Sensor Stainless Steel With anti-block
Application
Introduction
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and
good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
certificates. Customized solutions for various fluids can be supplied.
Electronic interface and signals definition
Parameter
Spec. | Numerical value | ||
Pressure range |
0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg |
||
Overload pressure | 1.5times Rated pressure | ||
Secondary containment | 3 times rated pressure | ||
Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | ||
Stability | Typical value: 0.1%F.S Max.: 0.2% F.S/year | ||
Operating Temperature | -40°C~85°C or -40 °C ~125 °C | ||
Compensation temperature | -10°C~70°C | ||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L | ||
Electrical properties | 2 line | 3 line | |
Output signal | 4~20mA | 0~5V | 0~10V |
Power supplies | 10~30Vdc | 80~30Vdc/ac | 11~30Vdc/ac |
Load resistance | (U-10)/0.02(Ω) | 〉 100kΩ | |
Insulation | 〉 100MΩ@50V | ||
Electrical Connections | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 | ||
Pressure interface | G1/4,input type | ||
Response time | 10ms | ||
Electric strength | 500Vac@1 second | ||
Graduate Certificate Programs | certificate of explosion-proof, CE | ||
Electromagnetic compatibility | electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2 | ||
Lightning protection | air conduction resistance 8000V,case, cable conduction |
Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package
e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam
PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
