Place of Origin: | China |
Brand Name: | Kacise |
Certification: | Intrinsically safe mode E, RoHS; CE |
Model Number: | GXPS353 |
Minimum Order Quantity: | 1 Piece |
---|---|
Price: | negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 pieces per week |
Electrical Performance: | 2 Wire System 3 Wire System | Operating Temperature: | -40°C~125°C |
---|---|---|---|
Pressure Range: | 0~2bar ......600bar | Storage Temp: | -40℃~120℃ |
Medium Compatibility: | All Caustic Medium Compatible With 1Cr18Ni9Ti | Power Supply: | 10~30Vdc 5Vdc 10~30Vdc |
Accuracy: | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | Output Signal: | 4~20mA 0.5~4.5V |
High Light: | high accuracy pressure sensor,piezoresistive pressure transmitter |
Introduction

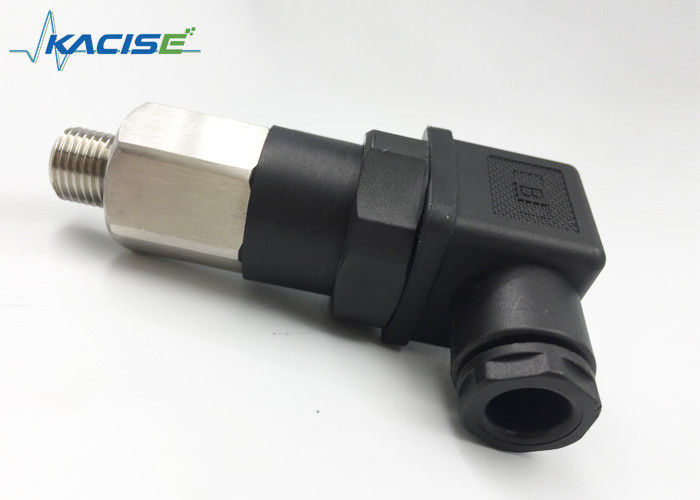

GXPS353 series pressure transmitter is a high-volume, low cost OEM, civil & industrial use, high-quality, high-reliability products. Small size, light weight, compact structure, and widely used in the scene of the compressor, automobile, air conditioning, etc. pressure measurement. The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and by the intrinsically safe certification and CE certification.
Standard voltage current output mode.
Feature
Application
Parameter
Spec. | Value | |||
Pressure range | 0~2bar ......600bar | |||
Load pressure | 1.5times nominal value pressure (1.5X) | |||
Rupture pressure | 3times nominal value pressure (3X) | |||
Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | |||
Stability | Typical value 0.5%F.S, Max. value: 1%F.S | |||
Operating temperature | -40°C~125°C | |||
Storage temp. | -40~120℃ | |||
Compensation temperature | -10°C~ 80°C | |||
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
Electrical performance | 2 wire system | 3 wire system | ||
Output signal | 4~20mA | 0.5~4.5V | ||
Power supply | 10~30Vdc | 5Vdc | 10~30Vdc | |
Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
Insulation | >100M Ω@50V | |||
Electric strength | 500V@60 second | |||
Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
Pressure durable | 2×106pressure circle @25°C | |||
Electrical connection | Packard, Hirsmann , air plugs, fixed cable, water proof cable | |||
Pressure port | G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2, | |||
Pressure type | G, S | Response time: 10ms | ||
Certificate | Intrinsically safe mode E, RoHS; CE | |||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
Electronic interface and signals definition
