Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable

Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable

  • Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable
  • Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable
Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD300-USD1000
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~20μS/cm(0.01cm-1),0~200μS/cm(0.1cm-1),0~5000μS/cm(1.0cm-1),0~600mS/cm Or 0~100PSU (Inductance Electrode) Range Can Be Set By Customer. Accurate: ±1.5%F.S.
Output: RS485 Resolution: 0.01μS/cm(0.01cm-1),0.1μS/cm(0.1cm-1), 1μS/cm (1.0cm-1),1mS/cm Or 0.1PSU
Installation: Input Type Protection Level: IP68
High Light:

water turbidity sensor

,

oil in water sensor

Conductivity Salt Sensor Water Qualtiy Sensor of RS458 Output digital conductivity sensor support Modbus with 5m cable

1. Applications



Kacise digital conductivity sensor, has the advantages of wide measuring range, automatic switching measuring range, built-in temperature sensor, real-time temperature compensation. It has excellent anti-pollution ability. It can make long time monitoring even in the harsh environment. The sensor can realize networking and system integration without controller by RS485 output.



2. Feature

  • Digital sensor, RS-485 output, support MODBUS.
  • Wide range, automatic switching measuring range.

3.Technical Specifications





Range 0~20μS/cm(0.01cm-1),0~200μS/cm(0.1cm-1),0~5000μS/cm(1.0cm-1),0~600mS/cm or 0~100PSU (Inductance electrode) Range can be set by customer.
Accurate ±1.5%F.S.
Resolution

0.01μS/cm(0.01cm-1),0.1μS/cm(0.1cm-1),

1μS/cm (1.0cm-1),1mS/cm or 0.1PSU

Protection level IP68
Max. Operation pressure <0.6MPa
temperature range 0 ~ 65℃
Output Support RS-485, MODBUS protocol
Power supply DC 12~24V±10%
Probe cable length 5 m, customized 10 m, 15 m and 30 m cable

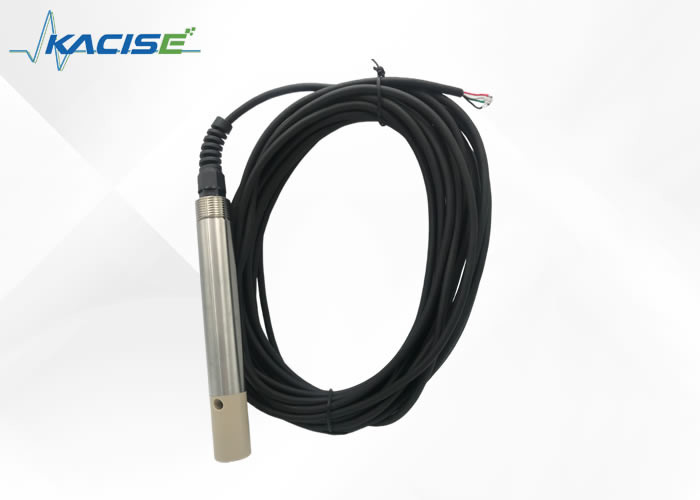

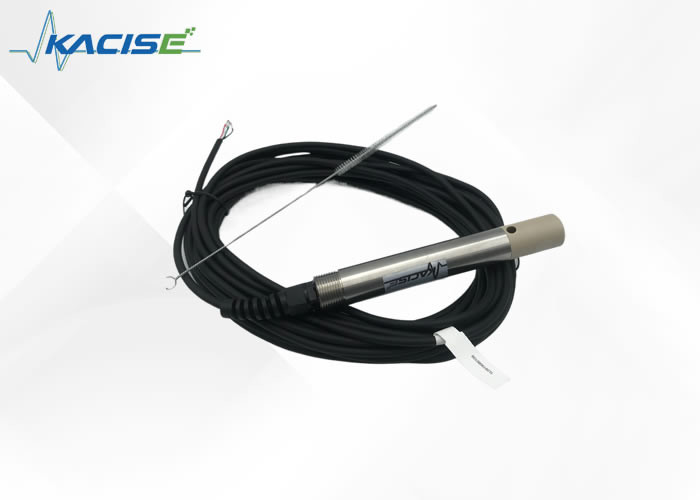

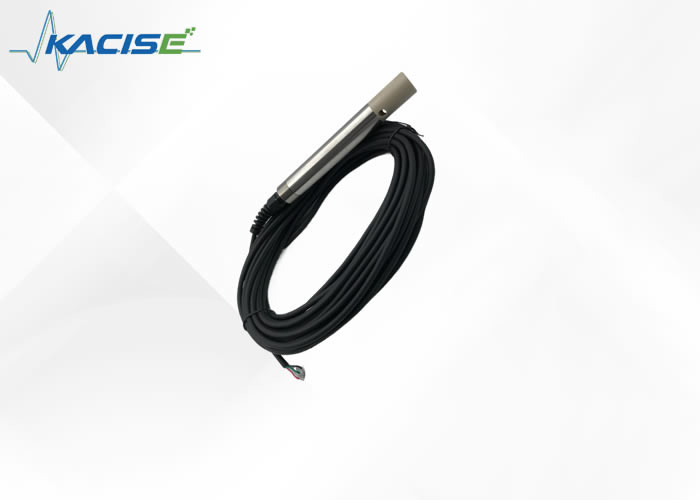

Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable 0



Accurate Water Quality Sensor Digital Conductivity Sensor Support Modbus With 5m Cable 1
