COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device

COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device

  • COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device
  • COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device
COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD300-USD1000
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
SAC: 0.5 To 250 1/m COD: 0.75 To 370 Mg/l Equiv. KHP
Output: RS485 TOC: 00.3 To 150 Mg/l Equiv KHP
High Light:

water turbidity sensor

,

oil in water sensor

KWS-100C Online COD/TOC Sensor RS485 Output With Automatic Cleaning Device Water Quality Sensor 6mm Gap

1. Applications



The Kacise COD/TOC sensor is new generation of environmentally friendly COD / TOC sensors. It does not require reagents. It is non-polluting, more economical, and more environmentally friendly. It is small size, easy to install. It can perform online monitoring the water quality. It can Automatically compensate for turbidity disturbances. It is equipped with an automatic cleaning device. The sensor has excellent stability even in long testing periods.



2. Principle

Many organic substances dissolved in water absorb ultraviolet light. Therefore, by measuring the absorption of these organic substances by ultraviolet light at a wavelength of 254 nm, the total amount of organic pollutants in water can be measured. The Kacise COD series sensor uses two light sources, one 254nm ultraviolet light and one 360nm ultraviolet reference light, which can automatically compensate the optical path attenuation and turbidity effects, thus achieving more stable and reliable measurement values.



3. Feature

  • Digital sensor, RS-485 output, support MODBUS
  • No reagents, no pollution, more economical, more environmentally friendly
  • Can measure SAC, COD, TOC and other parameters
  • Automatically compensates for turbidity interference for outstanding test performance



4.Technical Specifications



product Measuring range Application field
KWS-100C (6mm gap)

SAC 0.5 to 250 1/m

COD 0.75 to 370 mg/l equiv. KHP TOC 0.3 to 150 mg/l equiv KHP

natural waters, sanitary sewage monitoring

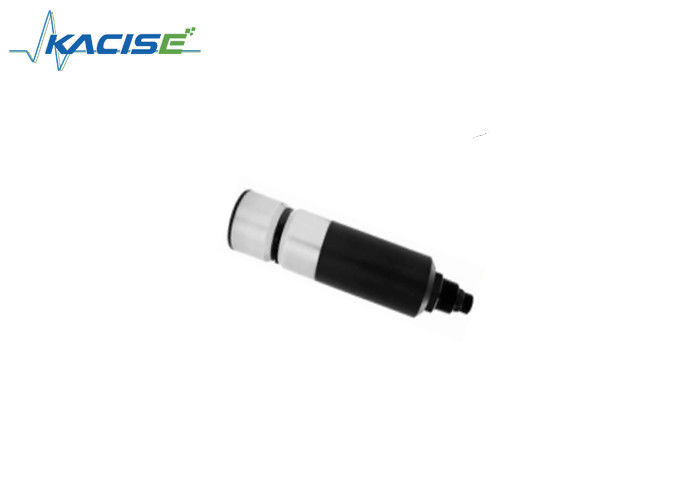

COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device 0

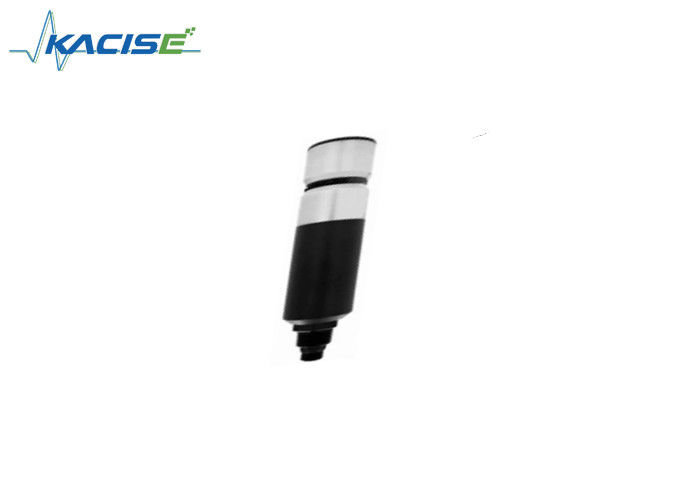

COD / TOC Sensor Water Quality Sensor 6mm Gap RS485 Output With Automatic Cleaning Device 1
