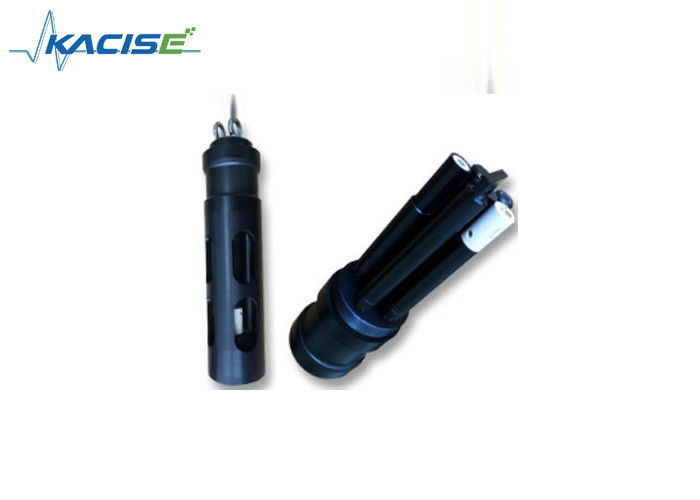

Waterproof Multiparameter Water Quality Probe Condcutivity Sensor Custom Cable Length

Waterproof Multiparameter Water Quality Probe Condcutivity Sensor Custom Cable Length

  • Waterproof Multiparameter Water Quality Probe Condcutivity Sensor Custom Cable Length
  • Waterproof Multiparameter Water Quality Probe Condcutivity Sensor Custom Cable Length
Waterproof Multiparameter Water Quality Probe Condcutivity Sensor Custom Cable Length
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD1500-USD4000
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-1000NTU Power Supply: 12V ±5%
Output: RS485 Current: 100mA
IP Grade: IP68 Cable Length: Standard 10m, Customizable 5m, 15m And 30m
High Light:

water turbidity sensor

,

oil in water sensor

RS485 Output Multi-parameters Water Quality Sensor with Self Cleaning Brush, Turbidity sensor, Condcutivity Sensor,



Introduction



The Kacise KWS-800 series of multi-parameter water quality sensors (seven optional parameters) are designed in an all-in-one configuration. Each sensor has a waterproof connector. Calibration data is stored in the sensor for field calibration and replacement. Up to 6 Kacise digital sensors can be connected at the same time, with optional fluori-dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen sensors. Equipped with an automatic cleaning device to eliminate air bubbles and prevent microbial growth, it can easily meet the needs of various water environment monitoring such as rivers, lakes, oceans and groundwater. Extremely reliable, it can run for months without maintenance in an unattended environment.



Feature



  •  Digital sensor, RS485 output, support MODBUS
  •  All calibration parameters are stored in the sensor, each with a waterproof connector for easy insertion and removal.
  • Equipped with automatic cleaning device, it can effectively remove the surface contamination of the sensor, prevent the growth of microorganisms, more accurate and lower maintenance.
  • Optional fluorimetry dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll, water oil and ammonia nitrogen
  • Sensor for long-term online monitoring.
  • All-in-one structure design, can connect six probes at the same time and measure seven parameters.

Technical Specifications



Fluorescent dissolved oxygen probe Range 0-20mg/L
Accuracy ±0.3mg/L
Resolution 0.01mg/L
Fiber turbidity probe Range 0-1000 NTU
  Accuracy <5% or 0.3NTU
Resolution 0.1NTU
Four-electrode conductivity probe Range 1us/cm-200ms/cm 1us/cm-100ms/cm
Accuracy 1% FS
Resolution 0-1000uS/cm; 0.1uS/cm; 1mS/cm-100mS/cm
Chlorophyll sensor Range 0~400 ug/L or 0~100RF
Accuracy 0.1 µg/L
Resolution 0.1 µg/L or 0.1% RFU
Digital pH probe Range 0-14pH
Accuracy ±0.1pH
Resolution 0.01
Digital ORP probe Range -999~999mV
Accuracy ±20mV
Resolution 1mV
Oil-in-water sensor probe Range 0-500ppb or 0-5000ppb
Accuracy 5%
Resolution 0.1ppb
Multi-parameter sensor other information Power supply 12V ±5%

Operating

temperature



0~50℃

Self-clean brush optional
Current 100mA
Output RS485
Cable length Standard 10m, customizable 5m, 15m and 30m
IP Grade IP68
