PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy

PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy

  • PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy
  • PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy
PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD200-USD600
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Product Name: Aquaculture Fluorescence Dissolved Oxygen Sensor Range: 0-20mg/L Or 0-200% Saturation
Accuracy: ±5% IP Grade: IP68
Sensor Drift: <1% Per Year Output: RS485
High Light:

water turbidity sensor

,

oil in water sensor

Optical Fluorescence Waste Sea Water Fish Farm Agriculture PPM DO Dissolved Oxygen Probe Transmitter Sensor



Introduction

The Kacise KWS-600 fluorescence dissolved oxygen sensor is designed for the aquaculture industry. It has the characteristics of stable online monitoring, and it has excellent characteristics compared with the traditional type sensor. It has no membrane, no need electrolyte, strong anti-interference, no need for frequent calibration, no consumption of oxygen, no flow rate limitation, auto matic temperature and Gas pressure compensation, gast reaction speed, long service life and more economical and convenient, so the fluorescence dissolved oxygen sensor is the best choice for real-time dynamic monitoring of oxygen content in aquaculture.

Features
  • No membrane, no need electrolyte
  • No need to consume oxygen, not affected by flow rate
  • Built-in temperature sensor, automatic temperature compensation
  • Free from chemical interferences such as sulfides
  • Small annual drift, fast response, and more accurate measurement
  • Free of maintenance, longer application cycle and lower cost of use
  • Fluor cap replacement is simple
  • Support RS-485, MODBUS protocol



Technical Specifications

Range 0-20mg/L or 0-200% saturation
Accuracy ±5%
Response Time 3 min
Ip Grade IP68
Sensor Drift <1% per year
Operating Temperature 0~50℃
Temperature Accuracy Temperature Accuracy
Output RS485, Modbus
Power Supply DC6-12V ±5%, current<50mA
Temperature Sensor NTC
Casing Diameter 22mm
Casing Length 188.3mm
Cable Length Standard 10m, customizable 5m, 15m and 30m
Fluorescent Cap Lifetime 1 year (under normal use)
Casing Material POM

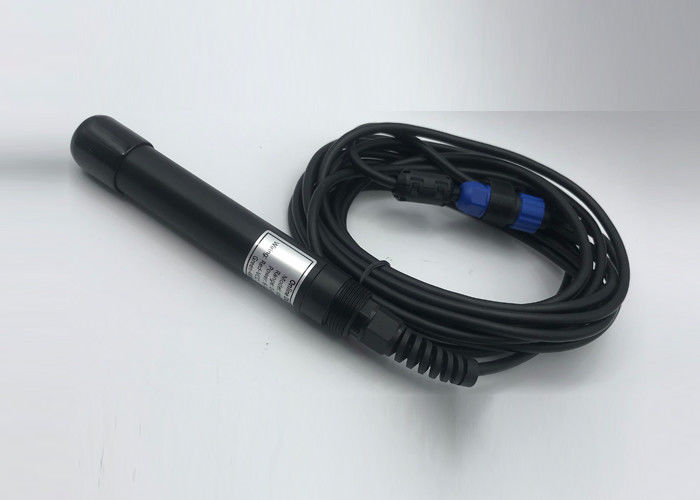

PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy 0

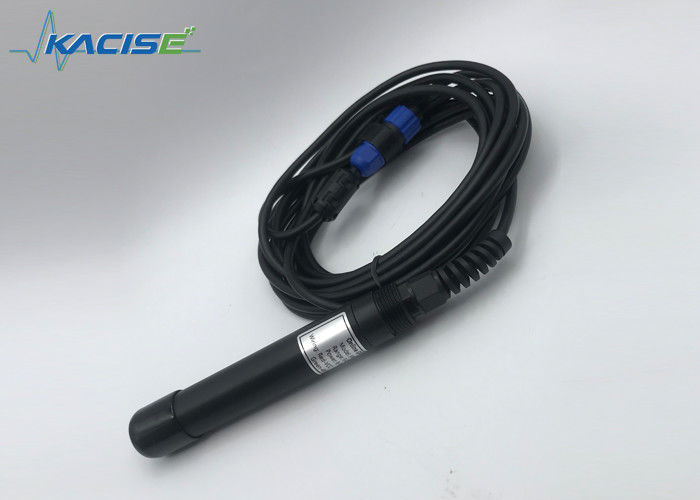

 PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy 1



PPM DO Dissolved Oxygen Probe Transmitter Sensor Fast Response High Accuracy 2
