IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring

IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring

water turbidity sensor

oil in water sensor

Place of Origin:

China

Brand Name:

KACISE

Certification:

CE

Model Number:

KWS-5000

Document:

KWS-5000 Dissolved CO2 Sens....4.pdf

Contact Us
Request A Quote
IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring
IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring
Product Details
Measuring Range:
2000ppm/5000ppm/10000ppm
Response Time:
10 Sec
Accuracy:
±20ppm/±50ppm/±300ppm
Protection Level:
IP68
Temperature Range:
0 ~ 80°C
Power Supply:
DC 5V
Size:
Φ27*104.8mm
Product Material:
POM
Highlight:

water turbidity sensor

,

oil in water sensor

Payment & Shipping Terms
Minimum Order Quantity
0-100
Price
Negotiable
Packaging Details
carton/wooden case, or customers requests
Delivery Time
5-8 working days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram， Paypal
Supply Ability
1000 Pieces per Week
RELATED PRODUCTS
Good price IP68 Anti Interference Online Turbidity Sensor with 0.1 NTU Resolution for Industrial Water Quality Monitoring online Video

IP68 Anti Interference Online Turbidity Sensor with 0.1 NTU Resolution for Industrial Water Quality Monitoring

Get Best Price
Good price IP68 POM Material Nitrate Nitrogen Water Quality Sensor with Ion Selective Electrode Method online Video

IP68 POM Material Nitrate Nitrogen Water Quality Sensor with Ion Selective Electrode Method

Get Best Price
Good price KWS-150 COD Sensor with 0.1NTU Turbidity Resolution and RS-485 Output Using Dual-wavelength UV Absorption online Video

KWS-150 COD Sensor with 0.1NTU Turbidity Resolution and RS-485 Output Using Dual-wavelength UV Absorption

Get Best Price
Good price KWS-380 Digital TDS Sensor with RS-485 Output and IP68 Protection for High Precision Water Quality Monitoring online Video

KWS-380 Digital TDS Sensor with RS-485 Output and IP68 Protection for High Precision Water Quality Monitoring

Get Best Price
Contact Us
Contact Now
Product Description

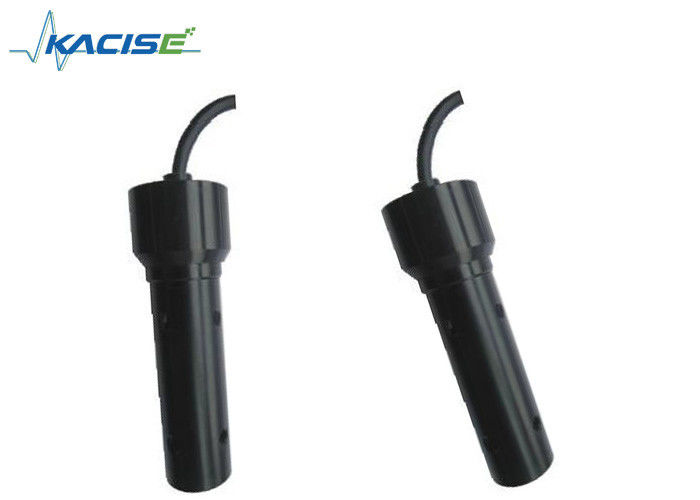

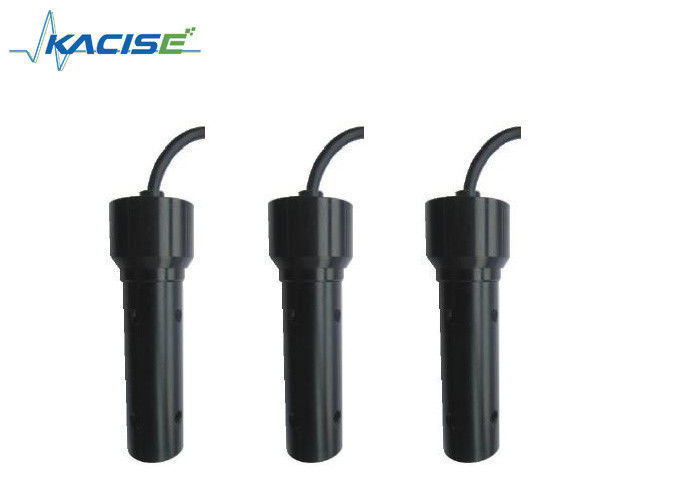

KWS-5000 Dissolved CO2 Sensor In Water
Introduction

KWS-5000 is a gas detection module based on NDIR infrared absorption principle, which is suitable for detecting the concentration of carbon dioxide in aqueous solution. KWS-5000 adopts a patented optical cavity, adopts convection diffusion ventilation method and protective cover, which not only accelerates the gas convection diffusion speed, but also waterproof and breathable. Unique waterproof structure, detachable, easy to clean the outer casing of the sensor.

Feature
  • Unique waterproof structure, can be disassembled
  • Lightweight housing for easy field installation
  • Rich interface, convenient for customers to choose
  • Provides zero calibration, sensitivity calibration and clean air calibration
Application
  • Aquaculture
  • Agricultural greenhouse environmental monitoring
  • Biopharmaceutical Environmental Monitoring
  • Water Quality Analysis
  • Solution analysis
Technical Specifications
Item Parameter
Measuring Range 2000ppm/5000ppm/10000ppm
Response Time <20 sec
Protection Level IP68
Storage Temperature -20 ~ 80°C
Operation Temperature -20 ~ 60°C
Output RS485 / 4-20mA / voltage, IIC, UART, PWM
Power Supply DC 5V (RS485 / 4-20mA is DC12V power supply)
Size Φ27*105mm
Probe Cable Length Default 0.5m
Maximum Working Pressure 1.5 bar
Product Material ABS
Dimensions

IP68 Protection Dissolved CO2 Sensor with NDIR Infrared Absorption and RS485 Output for Water Quality Monitoring 0

Signal interface definition

There is 3 kinds of signal output like below:

　 　 Signal definition
SN Wire color UART+IIC interface UART+485 interface UART+4-20mA interface
1 Red 5VDC 12V 12V
2 Black GND GND GND
3 Green Uart_RXD Uart_RXD Uart_RXD
4 Yellow Uart_TXD Uart_TXD Uart_TXD
5 White IIC_SDA RS485A 4-20mA(0.4-2V) output
6 Brown IIC_SCL RS485B Reserved
