IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode

IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode

  • IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode
  • IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode
IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KWS300
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: USD300-USD1000
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~20μS/cm(0.01cm-1),0~200μS/cm(0.1cm-1),0~5000μS/cm(1.0cm-1),0~600mS/cm Or 0~100PSU (Inductance Electrode) Range Can Be Set By Customer. Accurate: ±1.5%F.S.
Output: RS485 Resolution: 0.01μS/cm(0.01cm-1),0.1μS/cm(0.1cm-1), 1μS/cm (1.0cm-1),1mS/cm Or 0.1PSU
Installation: Input Type Protection Level: IP68
High Light:

water turbidity sensor

,

oil in water sensor

Online water treatment electrical conductivity TDS salinity temperature electrode

1. Description

Conductivity sensor technology is a very important engineering technology research field. It is used to measure the conductivity of liquids. It is widely used in human production and life. It has become an indispensable detection and monitoring device in industrial production and technology development, such as electric power, chemical industry, environmental protection, food, semiconductor industry, marine research and development. Conductivity sensor is mainly used to measure and detect industrial production water, human domestic water, seawater characteristics, and electrolyte properties in batteries.



The conductivity sensor can be divided into electrode type conductivity sensor, inductive type conductivity sensor and ultrasonic conductivity sensor according to the different measuring principles and methods. The electrode type conductivity sensor adopts the resistance measurement method according to the electrolytic conductivity principle. The conductivity measurement electrode is a complex electrochemical system in the measurement process; Inductive conductivity sensor realizes the measurement of liquid conductivity according to the principle of electromagnetic induction; The ultrasonic conductivity sensor measures the conductivity according to the change of ultrasonic in the liquid, and the former two sensors are most widely used.

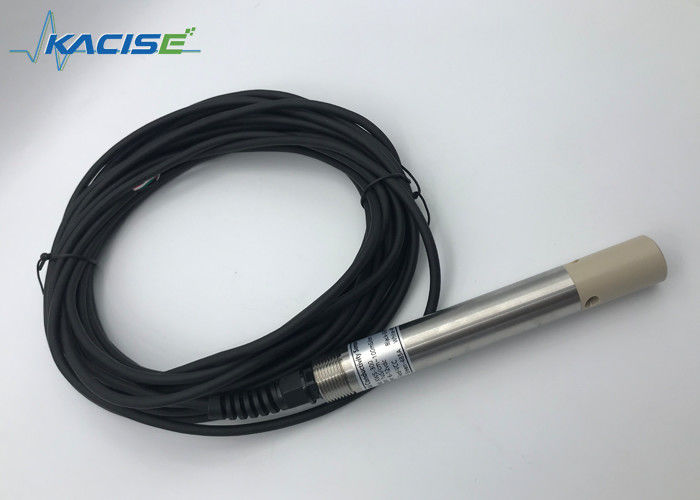

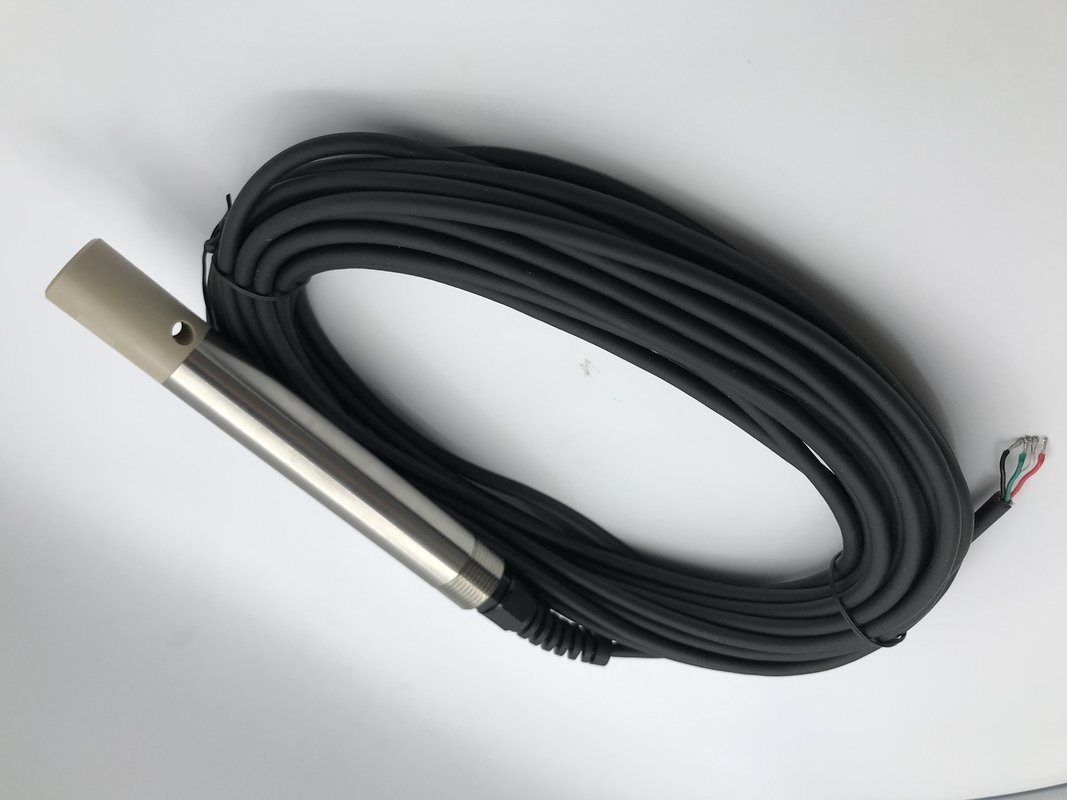

Kacise KWS-300 digital conductivity sensor with new generation of four-electrode / six-electrode technology. Wide range of measurement,automatic switching measurement range, built-in temperature sensor, Real-time temperature compensation. It has excellent anti-pollution ability. It can make long time monitoring even in the harsh environment. The sensor can realize networking and system integration without controller by RS485 output.



2. Feature

  • Digital sensor, RS-485 output, support MODBUS.
  • Wide range, automatic switching measuring range.
  • Built-in temperature sensor, real-time temperature compensation
  • Four-electrode / six-electrode technology, no polarization

3.Technical Specifications





Range 0~20μS/cm(0.01cm-1),0~200μS/cm(0.1cm-1),0~5000μS/cm(1.0cm-1),0~600mS/cm or 0~100PSU (Inductance electrode) Range can be set by customer.
Accurate ±1.5%F.S.
Resolution

0.01μS/cm(0.01cm-1),0.1μS/cm(0.1cm-1),

1μS/cm (1.0cm-1),1mS/cm or 0.1PSU

Protection level IP68
Max. Operation pressure <0.6MPa
temperature range 0 ~ 65℃
Output Support RS-485, MODBUS protocol
Power supply DC 12~24V±10%
Probe cable length 5 m, customized 10 m, 15 m and 30 m cable



4. Application

The goods can be widely used in drinking water, surface water, various water supplies and industrial water treatment.



IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode 0


IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode 1







IP68 Digital Water Quality Sensor RS485 Conductivity TDS Salinity Temperature Electrode 2
