90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range

90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range

  • 90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range
  • 90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range
  • 90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range
  • 90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range
90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiation
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-1000NTU Principle: Principle 90° Scattered Light
Accurate: <5% Or 0.3NTU(which Is Bigger) Power Supply: DC 5~12V,
Resolution: 0.1NTU Output: RS485
High Light:

water turbidity sensor

,

oil in water sensor

Aquaculture Industry Water Quality Measurement RS485 Output Non-self Cleaning Fiber Turbidity Sensor





1. Application

Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor has better repeatably and stability, not susceptible to ambient light coordination. The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.



2. Feature

Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeat-ability.



3.Technical Specifications

product

Fiber turbidity sensor

Self-cleaning turbidity sensor

Principle

90° scattered light

Measuring range

0-1000NTU

Resolution

0.1NTU

accurate

<5% or 0.3NTU(which is bigger)

Protection level

IP68

temperature range

0 ~ 50℃

Output

Support RS-485, MODBUS protocol

Probe cable length

10 m, customizable 5 m, 15 m and 30 m cable

Power supply

DC 5~12V, current <50mA

DC 5~12V, current <50mA (when not cleaned)

size

Φ22mm*120mm

Φ33mm*156mm

Self-cleaning system

No

Yes

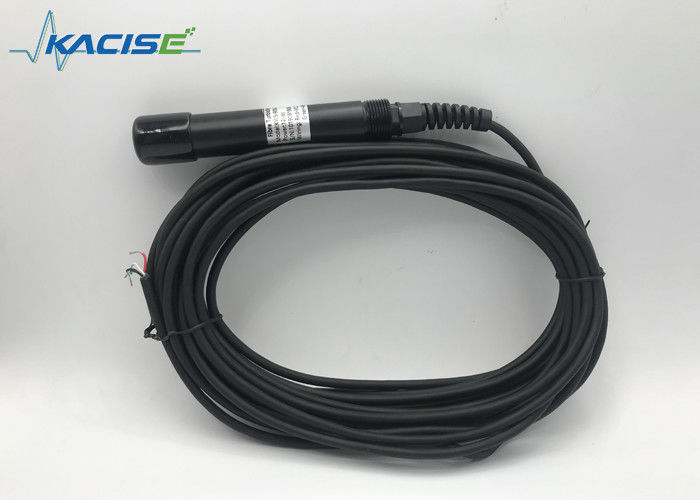

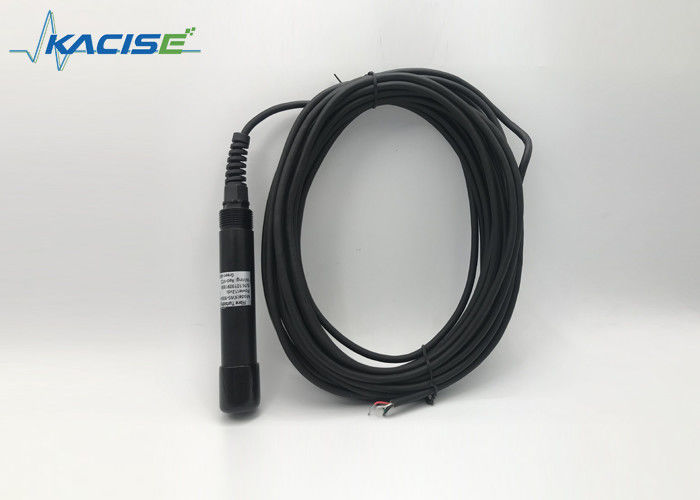

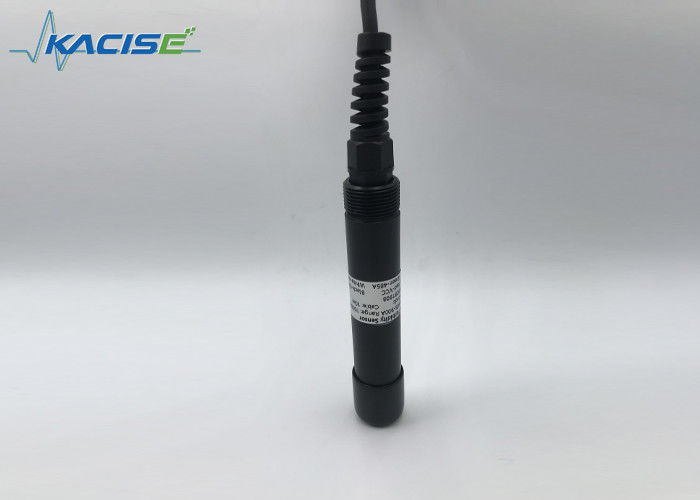

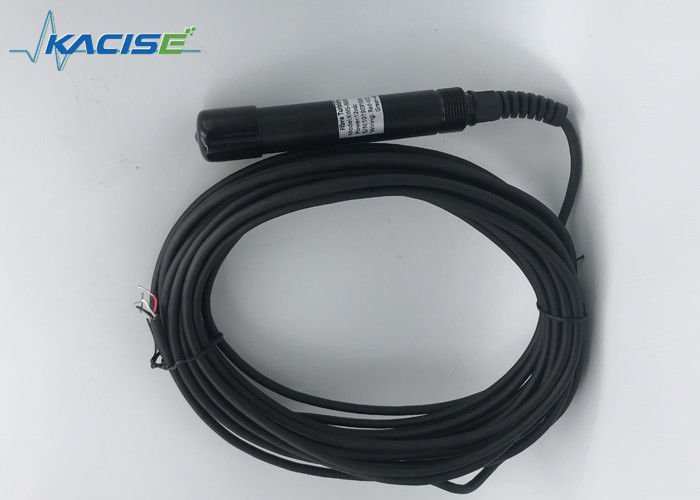

90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range 0



 90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range 1





90° Scattered Light Aquaculture Industry Water Turbidity Sensor 0 - 1000NTU Measuring Range 2
