Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

water turbidity sensor

oil in water sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KWS-300

Contact Us
Request A Quote
Product Details
Accuracy:
1%
Resolution:
1uS/cm
Response Time:
<2 Sec
Ip Grade:
IP68
Maximum Operating Pressure:
6 Bar
Temperature Range:
0~50℃
Output:
RS-485, MODBUS Protocol
Power Supply:
DC 5~12V, <50mA
Temperature Sensor:
NTC
Electrode Material:
Nickel
Highlight:

water turbidity sensor

,

oil in water sensor

Payment & Shipping Terms
Minimum Order Quantity
0-100
Price
Negotiation
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests avai...
Delivery Time
15
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100
Product Description
Product Description
KWS-300 Digital Conductivity Sensor





Introduction



Kacise KWS-300 digital conductivity sensor with new generation of four-electrode / six-electrode
technology. Wide range of measurement, automatic switching measurement range, built-in temperature
sensor, Real-time temperature compensation. Excellent resistance to pollution, even in harsh
environments long-term online monitoring, there will be no polarization. RS485 output, can be networked
without controller





Feature



Digital sensor, RS485 output, support Modbus
Wide measuring range, automatic switching measurement range
Built-in temperature sensor, real-time temperature compensation
Four-electrode / six-electrode technology, no polarization

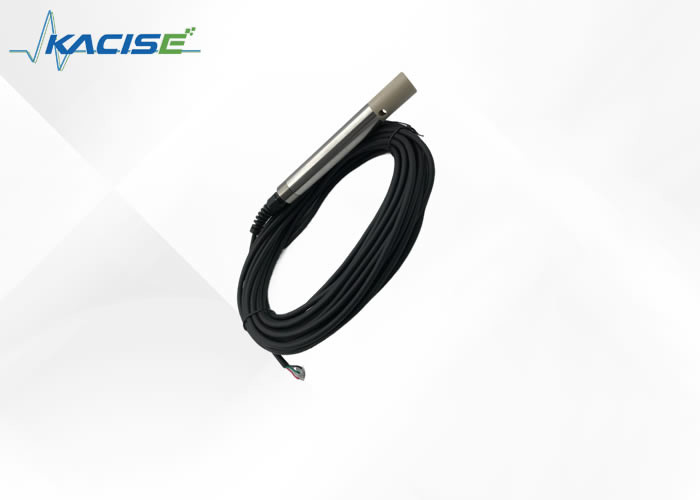

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68 0

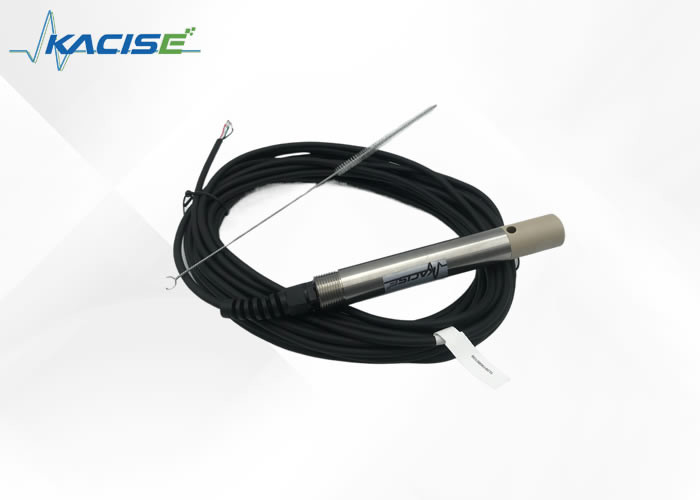

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68 1



Specification



Item Four-electrode conductivity sensor Six-electrode condutivity sensor
Model KWS-301 KWS-302 KWS-303
Measuring Range 1uS/cm~200mS/cm 1uS/cm~100mS/cm 1uS/cm~100 mS/cm
Accuracy 1%
Resolution 1uS/cm
Response time <2 sec
Ip Grade IP68
Maximum operating pressure 6 bar
Temperature Range 0~50
Output RS-485, MODBUS protocol
Power Supply DC 5~12V, <50mA
Temperature Sensor NTC
Electrode material Nickel
Wetted Part Material PEEK
Sensor size Φ 22*146.5 mm Φ 22*140 mm
Cable Length Standard 10m, customizable 5m, 15m and 30m cables
Calibration Method One/Two-point calibration

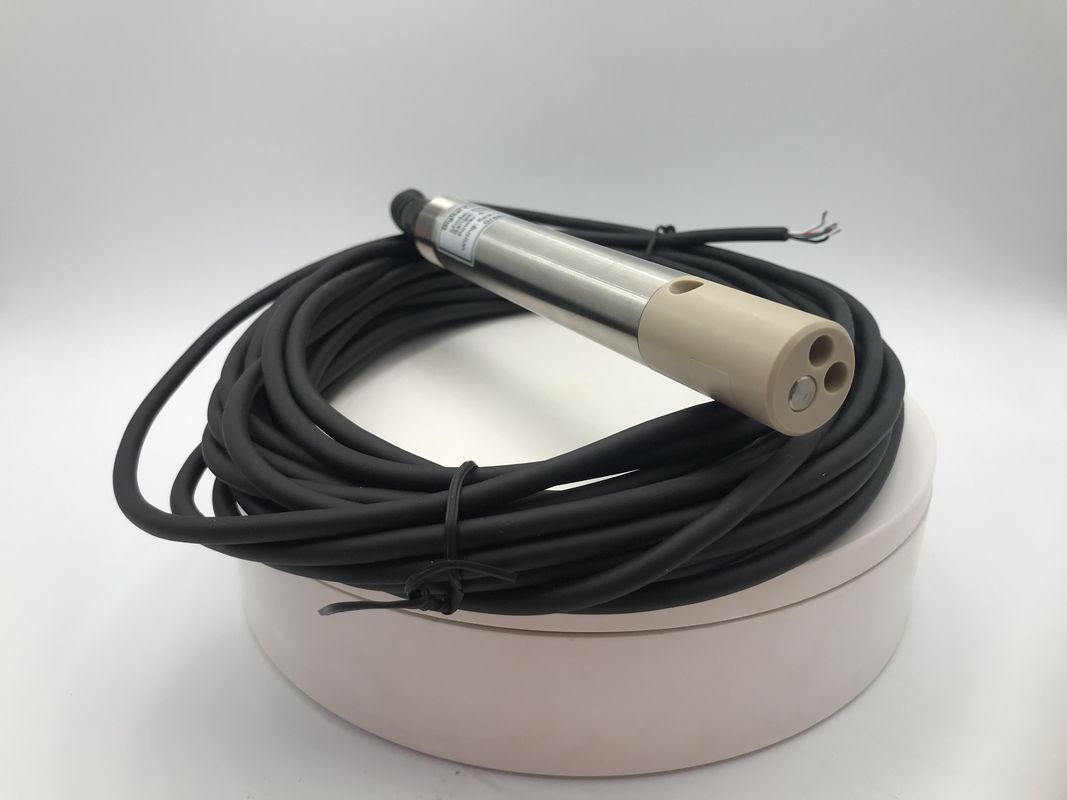

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68 2



Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68 3
