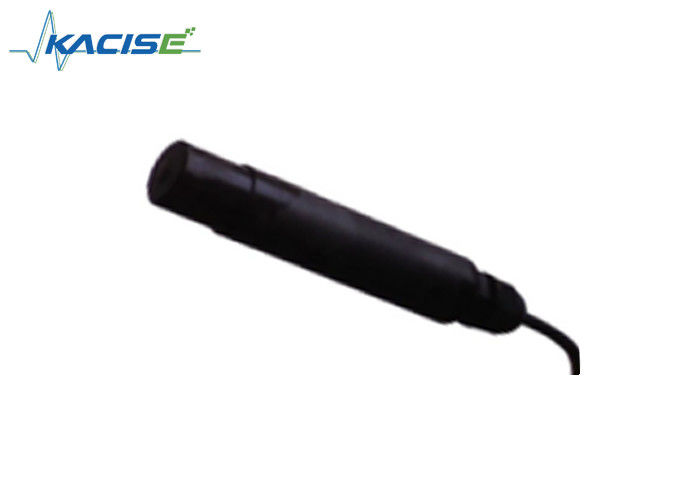

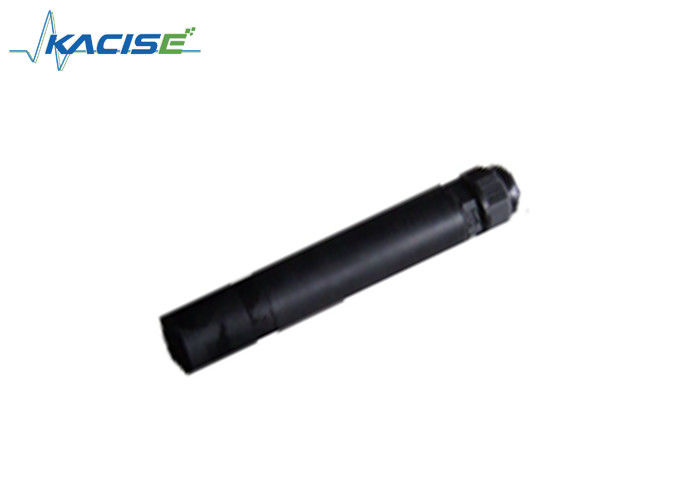

Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color

Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color

  • Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color
  • Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color
Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiation
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~2 Ppm PH: 5-9
Accuracy: ±0.1% Output: RS485, Modbus
Power Supply: 12V
High Light:

water turbidity sensor

,

oil in water sensor

Water Quality Sensor No Film Not Affected by Surfactants No Micropores NO2 - Nitrite sensor RS485 Modbus Output





1. Introduction

The reference electrode silver/silver chloride electrode is encapsulated in a closed electrolyte cavity, and the working electrode gold electrode is directly placed. Test solution contact, reference electrode through the ionic membrane and the external solution to complete the charge exchange NO2- in solution. Directly on the surface of the working electrode is oxidized to form a current, the current size and solution of NO2- proportional to content.



2. Features

  •  no pharmacy
  •  No film, not affected by surfactants.
  •  No micropores, there is no danger of holes blocking in the sewage.
  •  RS485 digital output.
  • Easy maintenance, no need to replace the diaphragm.
  •  Automatic temperature compensation
  • No pressure balance required

3.Technical Specification

Model KWS-1600
Range 0~2 ppm
Material

Polyacetal resin, PTFE, Gold, Silver

Polyformaldehyde resin, teflon, gold, silver.

Accuracy ±0.1%
Operating Temperature 5~50℃
PH 5-9
Power Supply 12VDC
Output RS485, Modbus
Electrolyte life One year
Power Supply 12V
Flow rate 10-40l/min
Installation

Flow cell installation



Calibration one-point slope calibration, zero calibration



4. Application range

  • Tap water
  • sewage
  • Fish pond
  • Natural water body

5.  Installation

Flow cell installation

Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color 0



6. Maintenance

  • Calibration:

                 Zero calibration:

                 This electrode has different zero points for different water bodies, so it is necessary to mark the zero point.

                 Calibrate the electrode with a standard solution:

                 At different concentrations of NO2- , from the lean to the rich, test the potential of the electrode. Record the value of mA and NO2- ,                        draw electrode"mA--NO2- "

                  Standard curve. Do not need to draw a standard curve if using ion meters. Operate accordingly to the user manual.

                  NO2- Standard solution, please see: GB5750.5.10-2006;

  •  Working electrode surface maintenance: brush the working electrode surface with a small brush every month.
  • Electrolyte replacement: Replace the electrolyte once a year.

7. Structure



Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color 1

Compay Introduction

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Application field, measuring range, accuracy, and other related parameters.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.





Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color 2



 Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color 3





Flow Cell Installation Water Quality Monitoring Sensors High Accuracy Black Color 4
