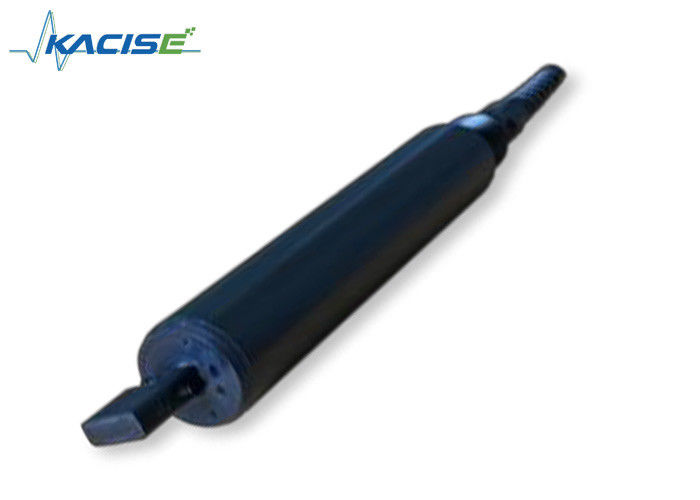

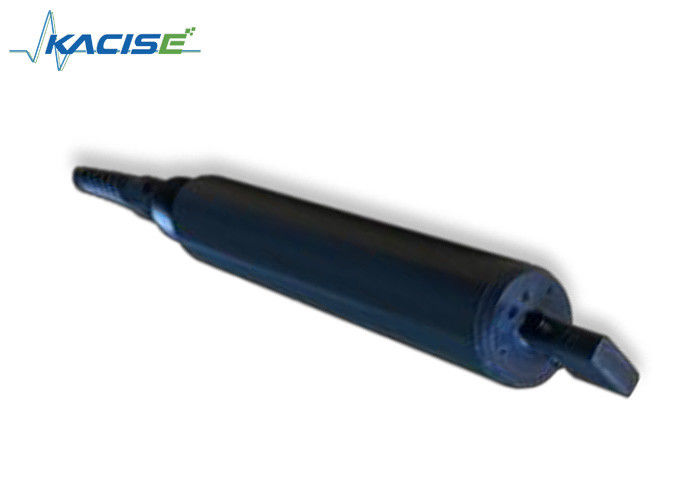

Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination

Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination

  • Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination
  • Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination
Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0~400ug/L Or 0~100RFU Linearity: R2>0.99
Protection Rate: IP68 Temperature Range: 0 ~ 50℃
Output: Support RS-485, MODBUS Protocol Cable Length: 10 M, Customizable 5 M, 15 M And 30 M Cable
Optical Window: POM Resolution: 0.1 µg/L Or 0.1% RFU
High Light:

water turbidity sensor

,

oil in water sensor

                                                     HACH KWS-400 Optical Fiber Chlorophyll Sensor











Introduction

Kacise fiber optic chlorophyll sensor measures the concentration of chlorophyll A in the water by using fluorescence principle. According to spectral absorption characteristic of chlorophyll A, the water body is
illuminated by a high-energy LED light, chlorophyll A in water body is stimulated to produce fluorescence
of specific wavelength. The sensor adopts fiber optic structure, which has excellent repeatability and stability. It does not affected by ambient light. With automatic cleaning brush, it can eliminate bubbles, reduce the impact of contamination on measurement. The sensor has the longer maintenance cycle. It has excellent stability after long-term online use.





Feature
Digital sensor, RS-485 output, support MODBUS.
With automatic cleaning brush, prevent contamination, eliminate bubbles.
Direct measurement is more convenient than traditional analysis method
On-line continuous monitoring, real-time control water quality dynamics



Technical Specifications



Item



Fiber Chlorophyll Sensor



Self-Cleaning Chlorophyll Sensor



Model



KWS-400A



KWS-400B




Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination 0



Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination 1



Principle



fluorescence principle



Measuring Range



0~400ug/L or 0~100RFU



Resolution



0.1 µg/L or 0.1% RFU



Linearity



R2>0.99



Protection Rate



IP68



Deepest Depth



Underwater 60 meters



Underwater 10 meters



Temperature Range

0 ~ 50℃



Output



Support RS-485, MODBUS protocol



Power Supply



DC 5~12V, current <50mA



DC 5~12V, current <50mA (not clean)



Installation



Input type, circulation type



Input type



Size



Φ22mm*120mm



Φ33mm*156mm



Cable Length



10 m, customizable 5 m, 15 m and 30 m cable



Self-Cleaning System



NO



Yes



Optical Window



POM



Field application example

Optical Fiber Chlorophyll Water Quality Sensor RS485 Output IP68 Protection Prevent Contamination 2
