Place of Origin:
China (Mainland)
Brand Name:
Kacise
Certification:
ISO9001:2008
Model Number:
JGX1 series

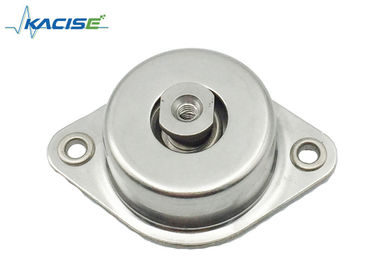

Wide working frequency Stainless Steel and aluminum Metal and Mesh Isolator
1. Product Description
With featuring of using the combined structure of couple springs and particular friction disk, JMZ Series Friction Damping Isolators have wonderful anti-vibration and anti-shock performance in any random directions.
Besides the characteristics of wide working frequency, long life span, JMZ Series can be used in harsh environments because of their outstanding performance of high and low temperature resistance, moisture-proof, salt moist-proof and mildew-proof.
JMZ Series apply to all kinds of onboard radios, instruments and meters, which belong to communication enterprises, institutes, universities and colleges.
Small, lightweight unit isolators for airborne, vehicular and industrial applications. The high damping and nonlinear characteristics of MET-L-FLEX load carrying element and limiter pads in the all metal JMZ-1-1.0 and JMZ-1-3.5 Series Isolators assure controlled shock and vibration isolation protection for mounted equipment.
2.Specific Applications
| Model /Dimension | B±0.5 | A±0.1 | H (Reference) |
H±0.5 | T | d | d+0.3 10 |
d2 | D | PW |
| JMZ-1©-1.0 | 35 | 26 | -40 | 29 | 11 | M4-7H | 3 | 14 | 28 | 0.1 |
| JMZ-1©-1.0A | 0.13 | |||||||||
| JMZ-1©-1.5 | 0.1 | |||||||||
| JMZ-1©-1.5A | 0.13 | |||||||||
| JMZ-1-1.4 | 44 | 35 | -50 | 36 | SW14 | M5-7H | 5.1 | / | 39.5 | aluminum shell 0.1 stainless steel 0.13 |
| JMZ-1-1.5 | ||||||||||
| JMZ-1-1.5A | ||||||||||
| JMZ-1-2.0 | ||||||||||
| JMZ-1-2.0A | ||||||||||
| JMZ-1-3.0 | ||||||||||
| JMZ-1-3.0A | ||||||||||
| JMZ-1-3.5 | ||||||||||
| JMZ-1-3.5A |
3.Technical Parameters
| Model/Technical Parameters | JMZ-1©-1.0 | JMZ-1©-1.5 | JMZ-1-2.0 | JMZ-1-3.0 | JMZ-1-3.5 |
| Nominal Load of Pz Direction (kg) | 1 | 1.5 | 2 | 3 | 3.5 |
| Displacement Manification (mm) | <2 | 2±1.5 | 3±1.5 | ||
| Frequency of Vibrating Isolation (Hz) | <15 | ||||
| Working Temperature (℃) | -65~+120 | ||||
| Impact test | 30g 11ms /up to the summit of G ≤0.9Km/S² | ||||
| Vibration Test | Up to GJB180-16 | ||||
| Validity (year ) | 3 | ||||
| Duration(year) | 3 | ||||
4. Our Services
Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton or wooden box, foam outside protecting the goods against damage.
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Paypal
Send your inquiry directly to us
