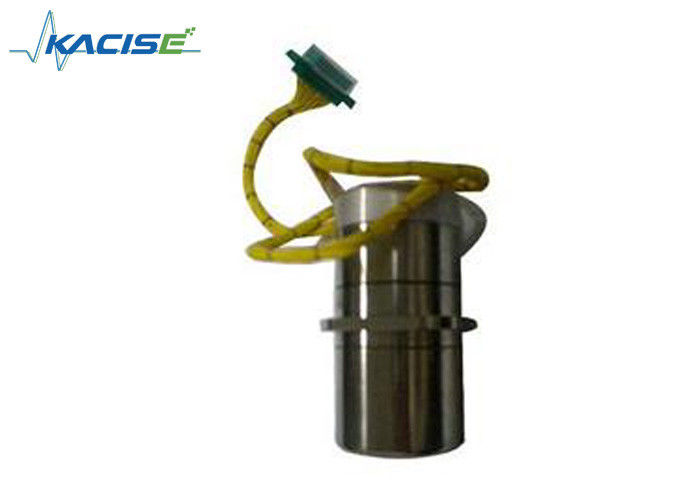

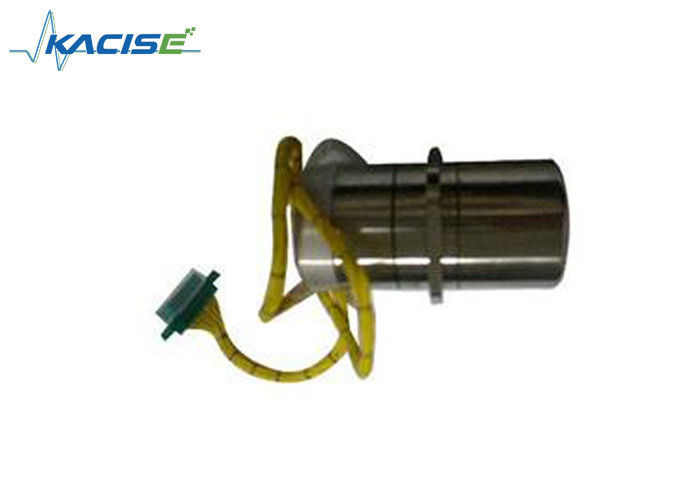

KTG-50 High Accuracy Dynamic Tuned Gyroscope with Wide Dynamic Range and ≤250g Weight for Inertial Navigation

• High accuracy
• Long service life
• Wide dynamic range
• High reliability

KTG-50 has been used for water surface, land strap-down system, fast true-north seeking, television antenna tracker, and widely used in spaceflight strap-down inertial system. The gyroscope also can be used for land, sea, aviation, space-flight transporter, strap-down platform attitude system.

Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.

1. Only products matching the appropriate power and locked loop circuit board in order to work properly, need circuit board, please explain in advance.
2. When the product under normal use, you should turn on the power to start the motor, about 10s, and then the on-lock loop, so that the products in closed loop state; shutdown, disconnect locked loop so that the product is in the open-loop operation, and then disconnect power supply.
3. Product energized, shut down in 20s, should avoid shaking the product, the installation process should be light, light up, the product non-collision, percussion.
4. Product in the use of the process is strictly prohibited to pull the plug.
5. Product in the use of the process, can`t short circuit between external power supply.
6. Abnormality occurs during use, should immediately turn off the power, fault isolation, if the product internal fault, the customer shall promptly notify my company, my company organized by the repair.

The socket type:J30J-15T (cable length160~175mm)

NOTE: The same applies to J30J-21T, if use other socket, please explain in advance.
