|Place of Origin:||China (Mainland)|
|Certification:||Intrinsically safe mode E, RoHS; CE|
|Minimum Order Quantity:||0-100|

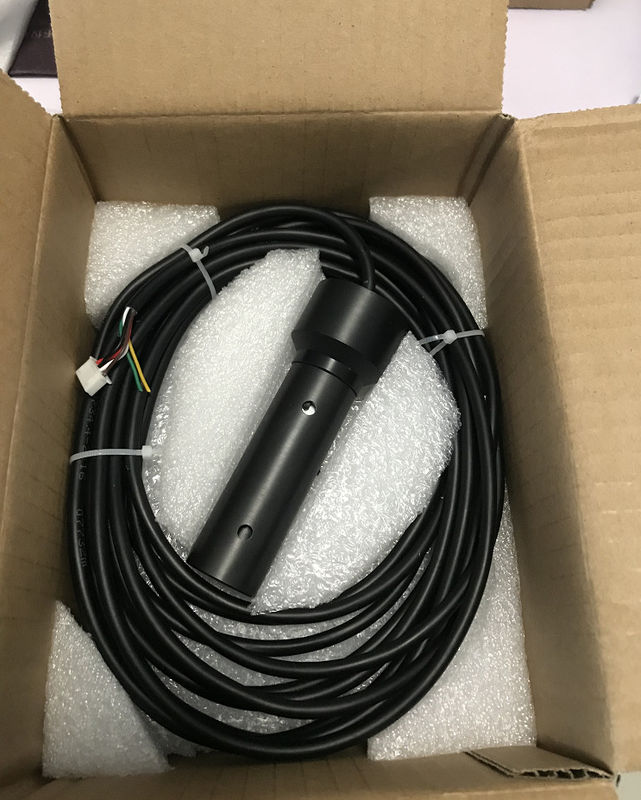

|Packaging Details:||each unit has individual box and all boxes are packed in standard packages or customers requests available|
|Delivery Time:||5-8 work day|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Principle:||NDIR Infrared Absorption||Measuring Range:||2000ppm/5000ppm/10000ppm|
|Response Time:||10 Sec||Accuracy:||±20ppm/±50ppm/±300ppm|
|Protection Level:||IP68||Deepest Depth:||Underwater 60 Meters|
water turbidity sensor,
oil in water sensor

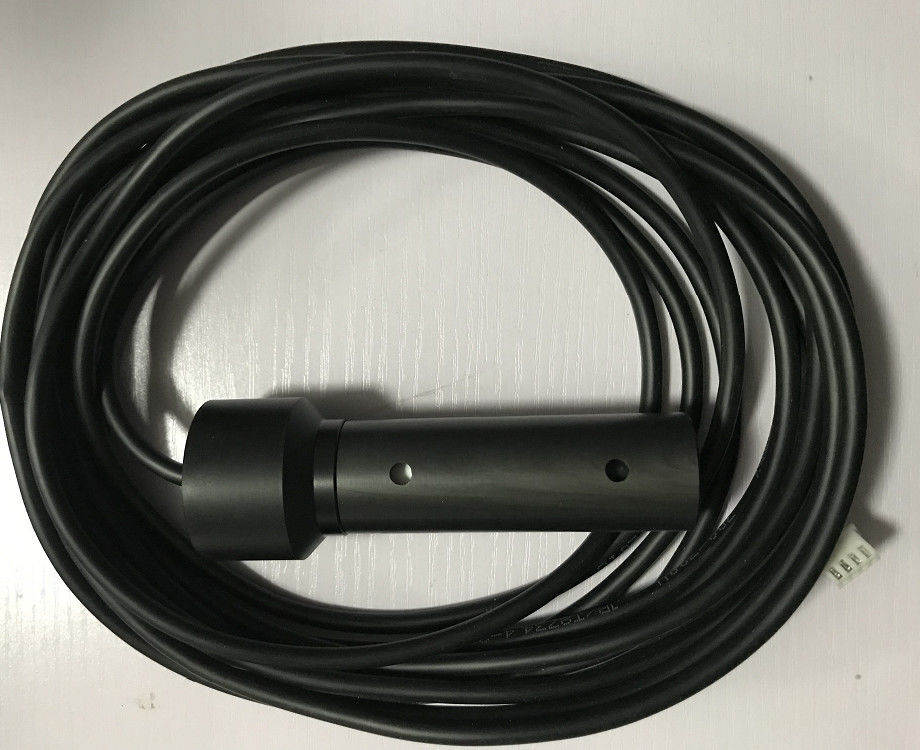

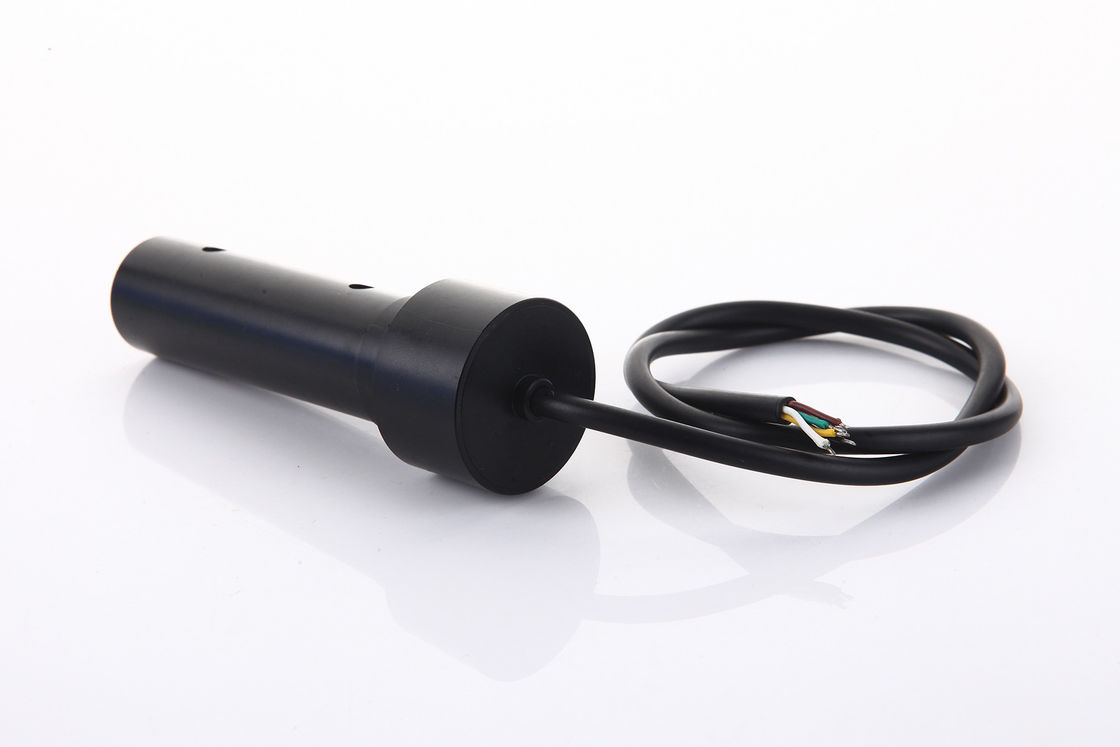

KWS5000 Dissolved CO2 Sensor In Water For Shrimp Fishing And Aquaculture In Seawater Or Fresh Water
The KWS5000 is a gas detection module for detecting the concentration of carbon dioxide in an aqueous solution. Patented optical cavity, imported light source and dual channel detector for spatial double reference compensation. KWS5000 has good selectivity, anaerobic dependence and long life. It also has UART, IIC digital output, analog voltage output and PWM frequency output mode, which is convenient for customers to choose applications. The KWS5000 provides customers with zero calibration, sensitivity calibration and clean air calibration commands, and provides customers with manually calibrated MCDL pins. The customer can conveniently use the external free-flowing clean air to perform a relative zero calibration of the sensor module. The KWS5000 uses a convection-diffusion venting method and a protective cover to accelerate the gas convection diffusion rate and protect the gas permeable membrane. Removable construction for easy cleaning of the sensor housing. The KWS5000's unique waterproof construction is removable for easy maintenance and cleaning. KWS5000 can be used to measure the concentration of dissolved CO2 gas in water. It can also be used for HVAC and indoor air quality monitoring, agricultural and livestock production process monitoring, and agricultural product storage status monitoring. It can be installed in home networks, ventilation systems and controllers. Wall-mounted, robotic and automotive applications can also be applied to other equipment to control air quality or hypoxia monitoring.
|Principle||NDIR infrared absorption|
|Response time||10 sec|
|Deepest depth||Underwater 60 meters|
|Temperature range||0 ~ 80°C|
|Output||Support RS-485, MODBUS protocol|
|Power supply||DC 5V|
|Probe cable length||Φ27*104.8mm|
|Probe cable length||10 m, customizable 5 m, 15 m and 30 m cable|
|cap life||1 year|
|Maximum working pressure||1.5bar|
