| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | GXEFM2000 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, T/T, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Application Range: | Electrically Conductive Fluids | Type: | GXEFM2000 |
|---|---|---|---|
| Measuring Principle: | Faraday’s Law | Primary Measured Value: | Flow Velocity |
| Secondary Measured Value: | Volume Flow | Product: | Electromagnetic Flow Meter |
| High Light: | wastewater flow meter,electromagnetic water flow meter |
||
Description

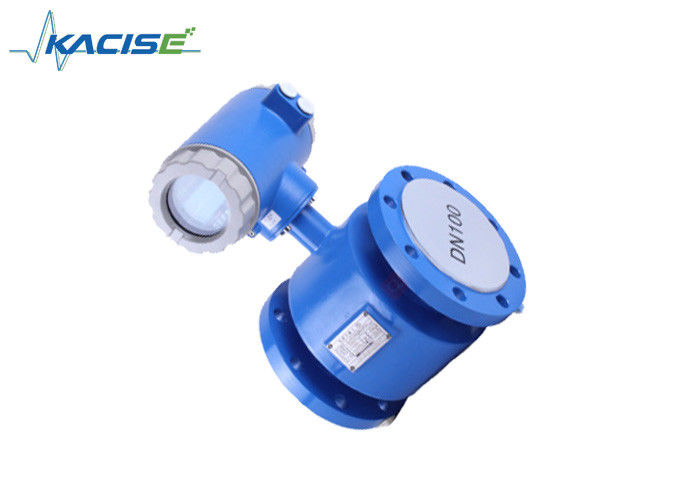

GXEFM2000 electromagnetic flow meters are intended for fluid measurement in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.

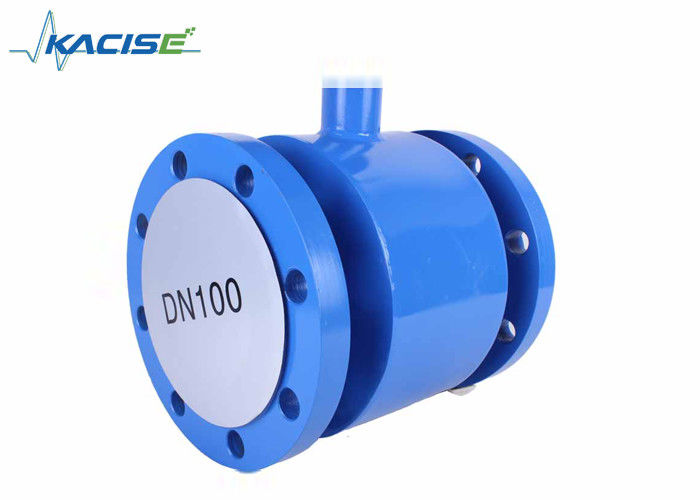

There are two basic components of electromagnetic flow meter:
1) The Detector,which includes the flow tube, isolating liner and measuring electrodes
2) The Converter, which is the electronic device responsible for signal processing, flow calculation, display and output signals.
The materials of construction of the wetted parts( liner and electrodes) should be appropriate for the specification on the intended type of service. Revise of the compatibilities consistent with the shipment of each meter.
Parameters
| Pipe diameter | DN6~DN2600 | |
| Accuracy | 0.3% (Option), 0.5%, 1.0% of F.S.. | |
| Repeatability | Below 0.25% | |
| Power | AC: 220V, 50-60Hz; DC: +24V(Option) | |
| Output Signals | 4~20mA, Pulse, 0~5V | |
| Conduit connection | M20 * 1.5 Thread | |
| Communication Interface | RS-232; RS-485; HART | |
| Operation Pressure | 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) | |
| Fluid Temperature | -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material | |
| Ambient Temperature | Sensor -40°C ~80°C. transducer -15°C ~50°C | |
| Ambient Humidity | ≤ 85%RH (at 20C) | |
| Cable Outlet Size | M20×1.5 | |
| Power Supply | 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) | |
| Power Consumption | ≤ 15W | |
| Protection Ratings | Remote type: sensor IP68, transducer IP65. | |
| Materials | Electrode | 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc. |
| Liner | PTFE, Soft rubb er, Hard rubber, F46, FS, PUR. | |
| Measuring tube | SS 304, carbon steel | |
| Flange | Carbon Steal, SS304 | |
| Ground ring | 316L (stainless steel), HC, Ti, Ta, Cu. | |
| Connection of Flange |
National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw. Tri-clamp for sanitary application Insertion type. |
|
| EX-proof protection | Exde ib ii BT2 | |
| Quality control |
ISO9001-2008, CE |
|
Ordering information
| Model Suffix Code | Description | ||||||||||
| GXEFM3000 | -1200 | -Com | -4mA | -Hart | -DC | -Pt | -Teflon1 | -GR | -D1400 | -Exd IIC T6 Gb | |
| Diameter | -XXXX | Four Digitals: for example:0010: 10mm: 0015:15mm 0100: 100mm 1000: 1000mm | |||||||||
| Transmitter | -Com | Compact type | |||||||||
| -Rem | Remote type | ||||||||||
| -Bat | Battery power supply type | ||||||||||
| -PRO | process control type | ||||||||||
| Signal Outpt | -N | No output | |||||||||
| -4mA | 4-20mA | ||||||||||
| -Pul | 1~5KHz pulse | ||||||||||
| -4Pul | 4~20mA / 1~5KHz | ||||||||||
| Communication | -N | No communication | |||||||||
| -Hart | HART | ||||||||||
| -MOD | MODBUS-RTU | ||||||||||
| -PRO | PROFIBUS | ||||||||||
| -GPRS | GPRS net | ||||||||||
| -CDMA | CDMA net | ||||||||||
| -WHRT | Wireless HART | ||||||||||
| -Other | special order | ||||||||||
| Power Supply | -AC | 85V～250Vac@46～63Hz nominal 20W |
|||||||||
| -DC | 20~36VDC nominal 20W | ||||||||||
| -Bat | Battery power supply | ||||||||||
| -Bat+ | Battery +12Vdc dual power supply | ||||||||||
| Other | special request | ||||||||||
| Electorde Material | -316L | Stainless steel 316L | |||||||||
| -HasB | Hastelloy B | ||||||||||
| -HasC | Hastelloy C276 | ||||||||||
| -Pt | Platinum | ||||||||||
| -Ta | Tantalum | ||||||||||
| -Ti | Titanium | ||||||||||
| -WC | wolfram carbide | ||||||||||
| Liner material | -Rub1 | Neoprene(-20-60℃) | |||||||||
| -Rub2 | Neoprene(-20-90℃) | ||||||||||
| -Tef1 | polytetrafluroethylene(-30-120℃) | ||||||||||
| -Tef2 | polytetrafluroethylene(-20-160℃) | ||||||||||
| -P | Polyurethane | ||||||||||
| -FVMQ | FVMQ | ||||||||||
| -PFA | DFA | ||||||||||
| -ETFE | Ethylene tetraflurorethylene | ||||||||||
| Grounding Ring | -N | No grounding ring | |||||||||
| -GR | Grounding ring | ||||||||||
| -GE | Grounding Electrode | ||||||||||
| Wet part Connection attribute | -DXX | DXX: D06, D10, D16, D25,D40 D06: DIN PN6: D10: DIN PIN10D16: DIN PN16; D25: DIN PN25 D40: DIN PN40 etc |
|||||||||
| -AX | AX: A1, A3, A6 A1: ANSI 150#; A3: ANSI 300# A6: ANSI 600# | ||||||||||
| -JX | JX: J1, J2, J3 J1: JIS10K; J2: JIS 20K; J3: JIS 30K |
||||||||||
| -WF | Wafer connection (available for DN2.5; DN6 flow meter) Body material: stainless steel | ||||||||||
| -TR | Tri-Clamp for sanitary type (Body material: stainless steel) | ||||||||||
| Explosive-proof grade | -Exd IIC T6 Gb | Exd IIC T6 Gb | |||||||||
| -N | don't need | ||||||||||
