Name: Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUFH2000
Price: 1,000.10 USD
Availability: InStock

Home > products > Ultrasonic Transducer Sensor >

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KUFH2000

Request A Quote

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation

Product Details

Display:

English Led Display

Digital Output:

RD485

Cable Probe:

No.

Installation:

Thread

Type:

Integrated

Range:

5-60m

Highlight:

waterproof ultrasonic sensor

ultrasonic fuel level sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

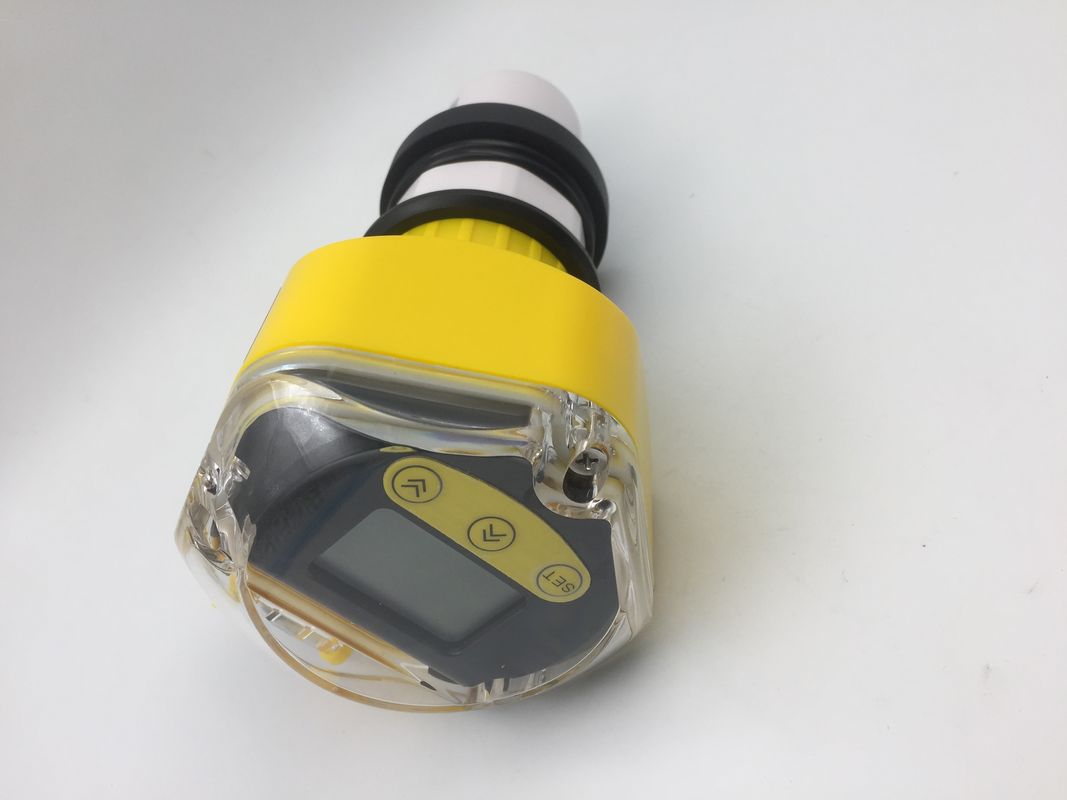

KUM-A Digital Intergral Intelligent Enhanced Ultrasonic Level Meter Non-Contact Level Sensor

KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 0

1. Technical Features:

Non-contact, can be used in various applications;
High accuracy: 0.5%, 1%
Various types of probes are available to meet the requirements of various applications.

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 1

2. Structure:

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 2

3. Technical Specifications:

Specs	Value
Pressure Voltage	5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy	0.5%, 1.0%
Display	LCD
Ambient Temperature	Display instrument-20～+60℃ transducer-20～+80℃
Medium	liquid and solid
Analog Output	4-20mA
Digital Output	RS485, RS232 (both are optional)
Power Supply	24Vdc
Protection Grade	Display instrument IP65,transducer IP68
Probe Type	PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

4. Model Selection:

KUM-A
	Measurement Range
	A	5m
	B	10m
	C	15m
	D	20m
	E	30m
	F	40m
	G	50m
	H	60m
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

5. Applications and Installations:

Distance measurement
Depth measurement

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 3

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 4

Non Contact Ultrasonic Transducer Sensor Explosion Proof Flow Meter High Accuracy Thread Installation 5
