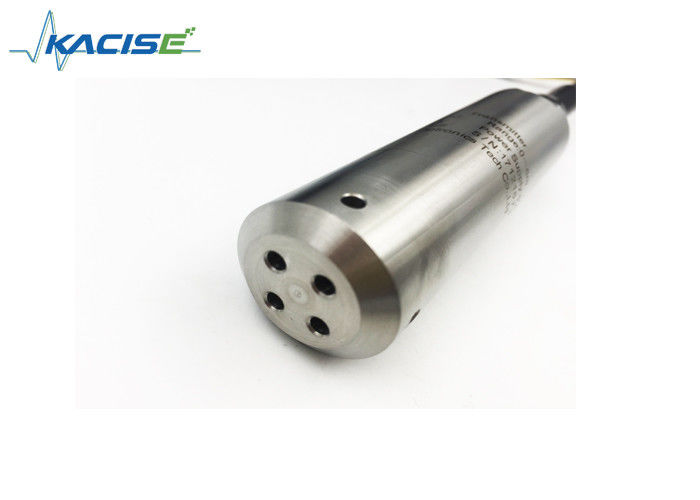

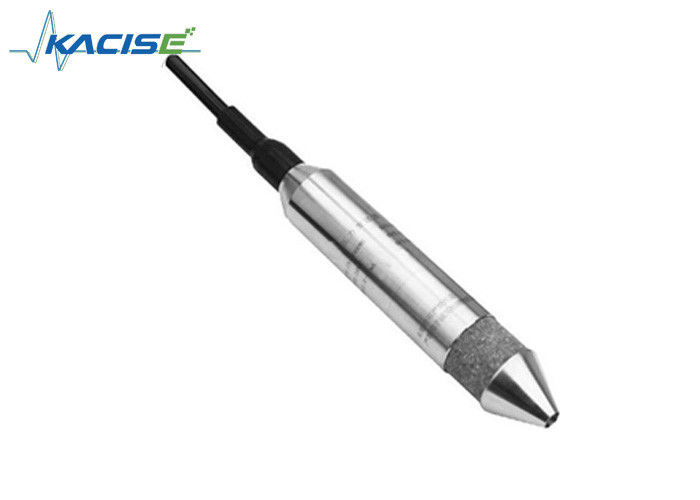

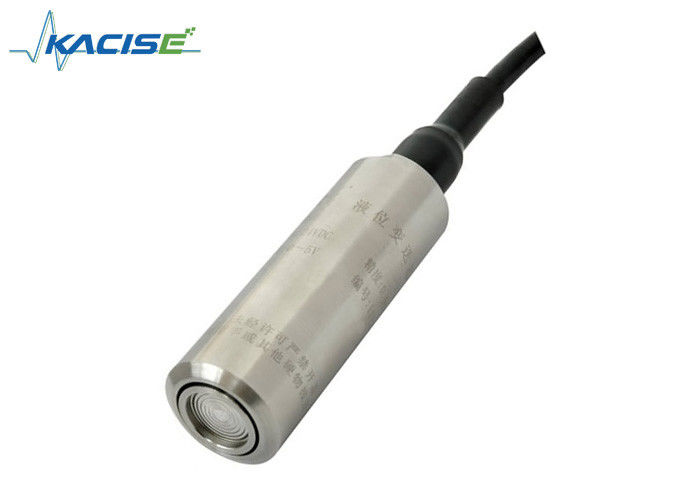

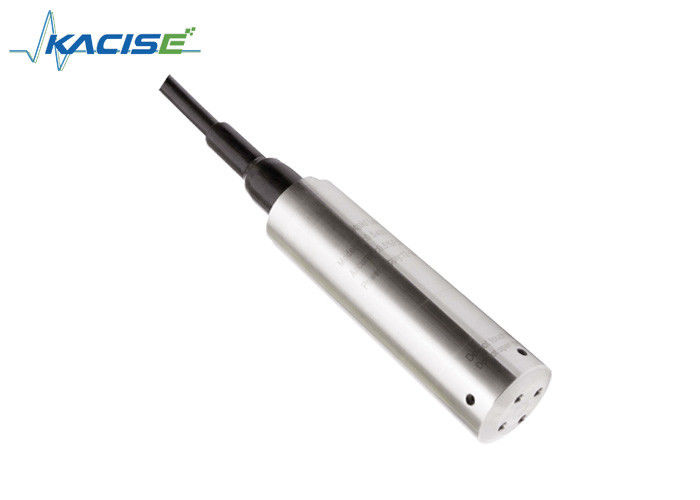

Name: High Accuracy Submersible Pressure Sensor with Stainless Steel Material and Explosion Proof for Liquid Level Measurement
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS400
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

High Accuracy Submersible Pressure Sensor with Stainless Steel Material and Explosion Proof for Liquid Level Measurement

high accuracy pressure sensor

piezoresistive pressure transmitter

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

Kacise

Certification:

CEISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates

Model Number:

GXPS400

Request A Quote

High Accuracy Submersible Pressure Sensor with Stainless Steel Material and Explosion Proof for Liquid Level Measurement

Product Details

Range:

0...200m

Power Supply:

9-30V

Accuracy:

±0.25%F.S, ±0.5%F.S

Material:

Stainless Steel Or Customize

Output:

4-20mA , 0-10V , 0-5V , 0.5-4.5V

Operating Temperature:

-40°C~85°C

Highlight:

high accuracy pressure sensor

piezoresistive pressure transmitter

Payment & Shipping Terms

Minimum Order Quantity

1 piece

Price

Negotiable

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

10000 Piece/Pieces per Week negotiable

Rigid Stem Sanitary Melt Pressure Transducer with Non Toxic Material and High Precision for Food Process Equipment

Get Best Price

High precision small size refrigerant wireless pressure sensor and transmitter

Get Best Price

Stainless Steel Submersible Pressure Sensor with 9-30V Power Supply and Anti-Block Spare Parts for Liquid Level Monitoring

Get Best Price

Video

GXPS900 Aviation High-speed Rail Pressure Transmitter with ±0.1%F.S Accuracy, 1Cr18Ni9Ti Stainless Steel, and 4~20mA Output Signal

Get Best Price

Contact Now

Product Description

GXPS400 Pressure Submersible Liquid Water / Fuel / Oil / Liquid Level Sensor With Vented Cable

Introduction
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.

Feature

Diffused-Silicon oil filled core
All kinds of structure to satisfy different users
Multiple pressure range and signal output
Non-polar 2 wire system current output
Easy to use with submersible measuring
Can be used in lightning protection products
Reinforcing rib for liquid cable available
Intrinsically safe explosion proof, Isolation explosion proof, CE

Application

Sewage treatment
Cloudy level measuring
Hydrologic measurement for river, lake, sea
Circulating liquid consumption monitoring
Deep well level measuring
Fluid reservoir level measuring
Water-saving irrigation
Diversion project

Electronic interface and signals definition

Parameter

Spec.	Numerical value
Pressure range	0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg
Overload pressure	1.5times Rated pressure
Secondary containment	3 times rated pressure
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	〉 100kΩ
Insulation	〉 100MΩ@50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface	G1/4,input type
Response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
Electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection	air conduction resistance 8000V,case, cable conduction

Ordering information
GX-Type-Range-Output-Accuracy-Power-Structure-Cable length-Package

Type: PS400=universal type, PS400E=intrinsically safe type, PS400D=isolation explosion proof ,PS400L= lighting protection, PS400A=thread mounted, PS400B=Submersible & thread type, PS400-TH=Sediment prevention, PS430=minor diameter, PS400-1=antifouling, PS400-2=High density, PS470=economical, RSV=Reserved
Range: 1m…500m= the upper limitation of the range
Output: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
Power: 24VDC, 11~30Vdc, or customized
Structure: T= submersible type, G=F=split, Ht=customized
Cable length: XXm=XX meter 1-150m
Package: Bb, Foam

e.g. GXPS400-2.5m-A-0.5-DC24-T-5m-Foam
PS400, measuring range is 0-2.5mH2O, accuracy is 0.5%, 24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
