Product Details:
Place of Origin: china
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Power Supply: 4.2V Rechargeable Lithium Battery Precision Grade:: 0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS
Pressure Range:: -100kPa~0~600kPa~250MPa Display:: SFTN Liquid Crystal Display,White Backlight,5 Digit Display.
Installation Method:: Radial Installation、axial Belt Mounting Plate、Split Type Installation Storage Temperature:: (-30~80)℃
High Light:

water turbidity sensor

,

oil in water sensor





Oil, gas and water pressure monitoring Storage Manometer Pressure Gauge Easy  Data Collect By USB



Specification



Item Spec.
Pressure range -100kpa~250pa~5kpa~250Mpa
Accuracy 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
Display 5-digit dynamic display + percentage indicator
Pressure unit Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
Overload pressure 150% FS
Destruction pressure 200% FS
Power supply 4.2V rechargeable lithium battery
Temperature -20 ℃ ~ 60 ℃
Humidity ≤ 85% RH
Calibration environment 20 ℃ ± 2 ℃
Explosion-proof level ExiaIICT4 optional
IP Grade IP66
Data record limit 11000 (50000 Selective)
Process connection M20 × 1.5 (male), special thread customizable
Dimensions height 170mm, width 110mm, thickness 50mm

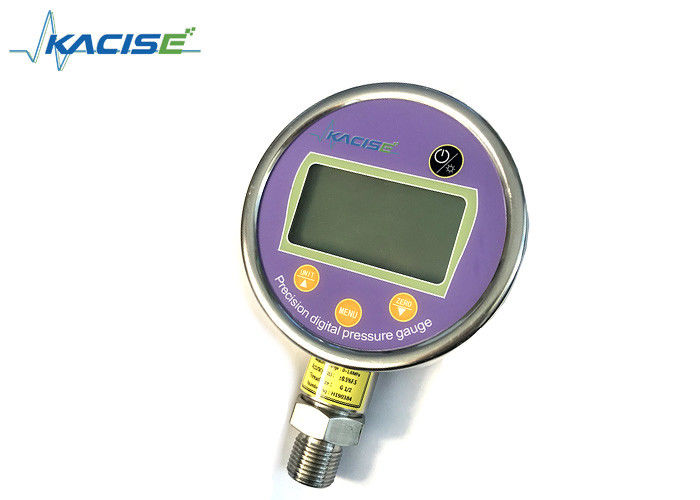

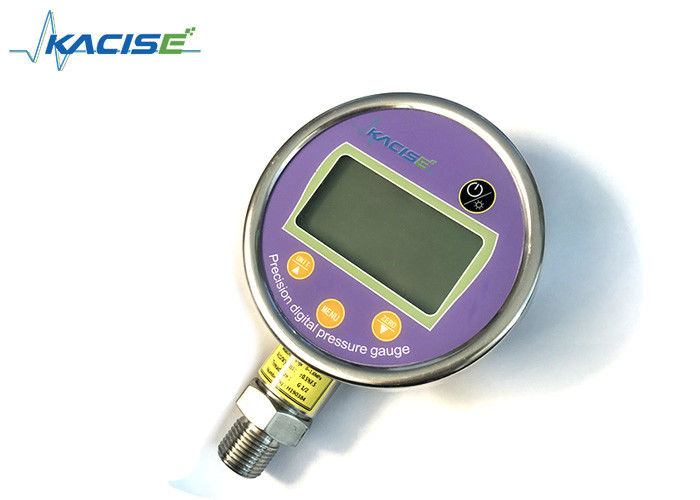

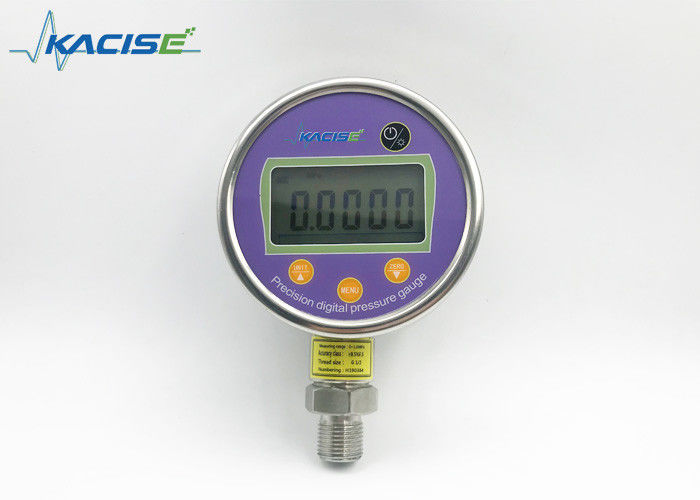

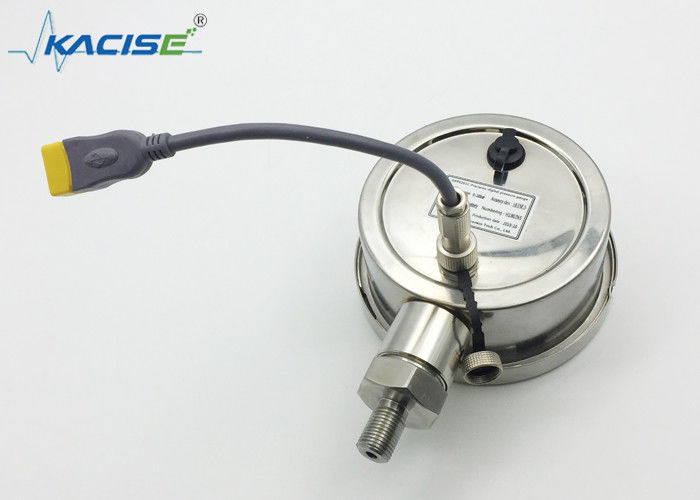

Description

KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.



Features



• Wide temperature compensation, ultra-low power consumption.

• Unit changing, peak valley and other functions fully preserved.

• Multi additional setting and functions available, user can set by environment and habits.

• IP grade ≧ IP66, higher than the industry level.







Precision Grade: 0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS Pressure Range: -100kPa~0~600kPa~250MPa
Ambient Temperature: (-20~50)℃ Relative Humidity: <95%
Atmospheric Pressure: (86~106)kPa Storage Temperature: (-30~80)℃
Display: SFTN Liquid Crystal Display,White Backlight,5 Digit Display. Power Supply Mode: 4.2V Rechargeable Lithium Battery
Installation Method: Radial Installation,axial Belt Mounting Plate,Split Type Installation




Storage Manometer Precision Digital Pressure Gauge Radial Installation
