| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | GXPS500 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Pressure Range: | 0~±5kPa……±5000kPa | Load Pressure: | 1.5 Times Nominal Value |
|---|---|---|---|
| Pipeline Isostatic Pressing: | 3, 5, 10 Times Nominal Value 20MPa | Accuracy: | ±0.25%F.S, ±0.5%F.S |
| Stability: | Typical Value 0.1%F.S, Max. Value: 0.2%F.S | Operating Temperature: | -40°C~85°C |
| Medium Compatibility: | All Caustic Medium Compatible With 1Cr18Ni9Ti & 316L | Response Time: | 10ms |
| High Light: | high accuracy pressure sensor,piezoresistive pressure transmitter |
||
GXPS 4-20ma differential pressure transmitter

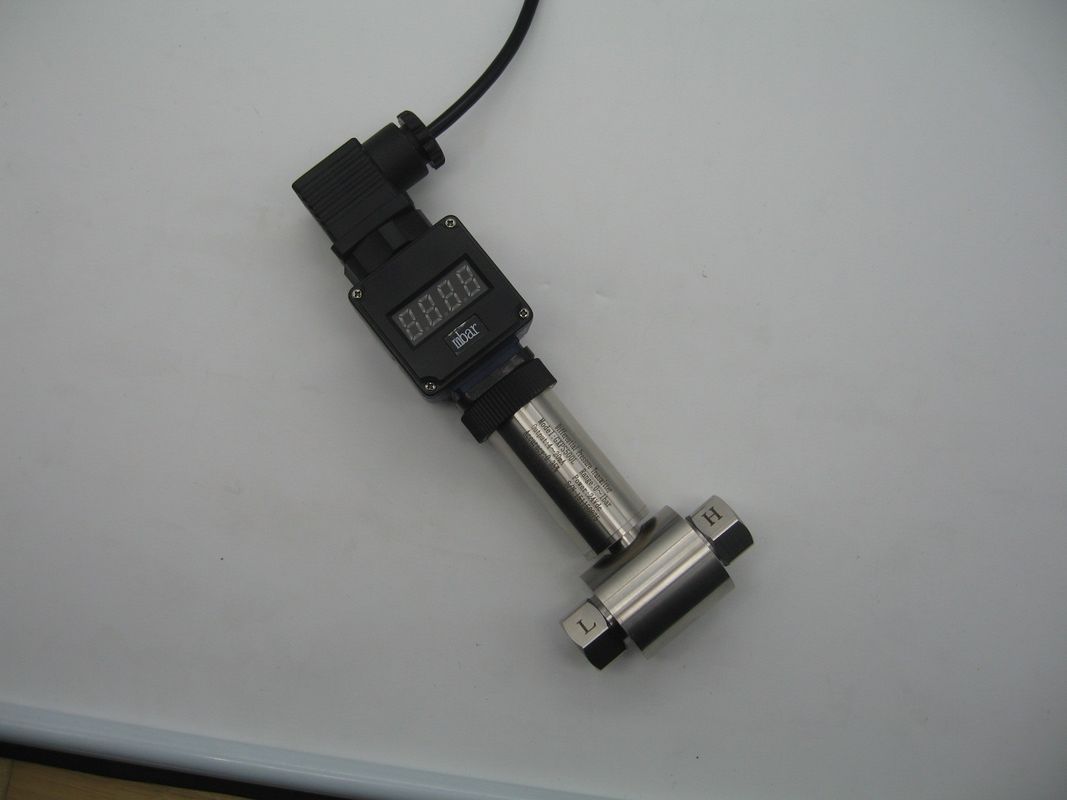

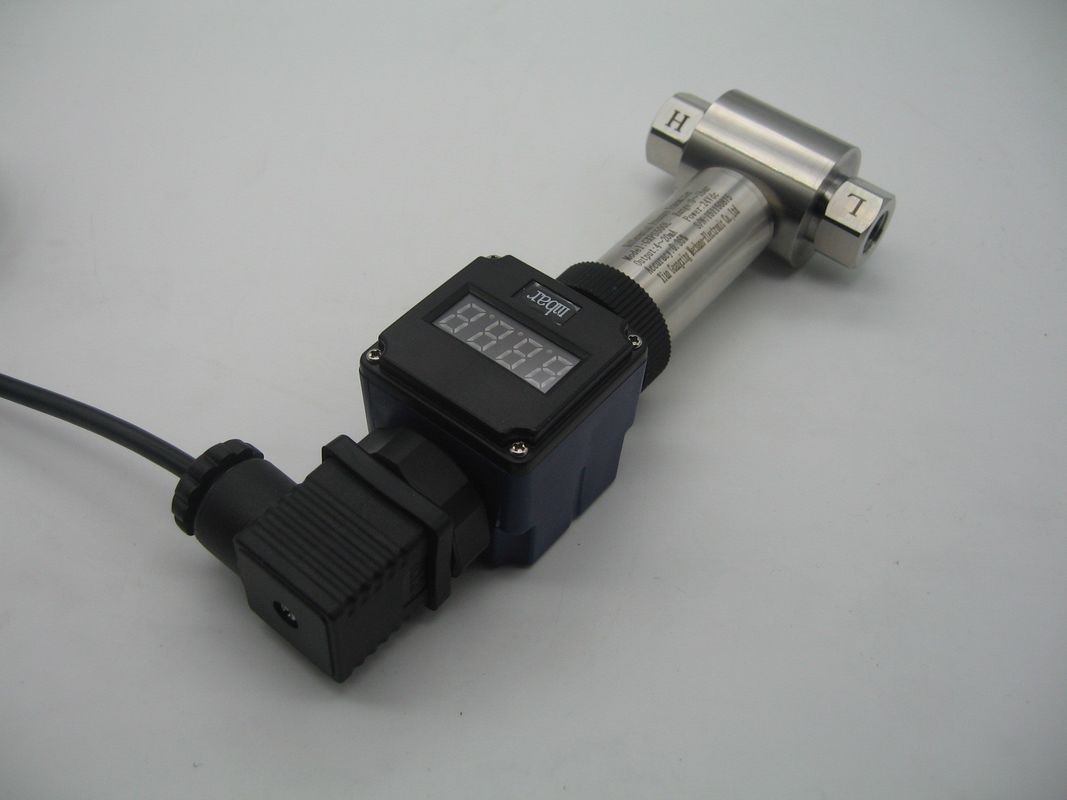

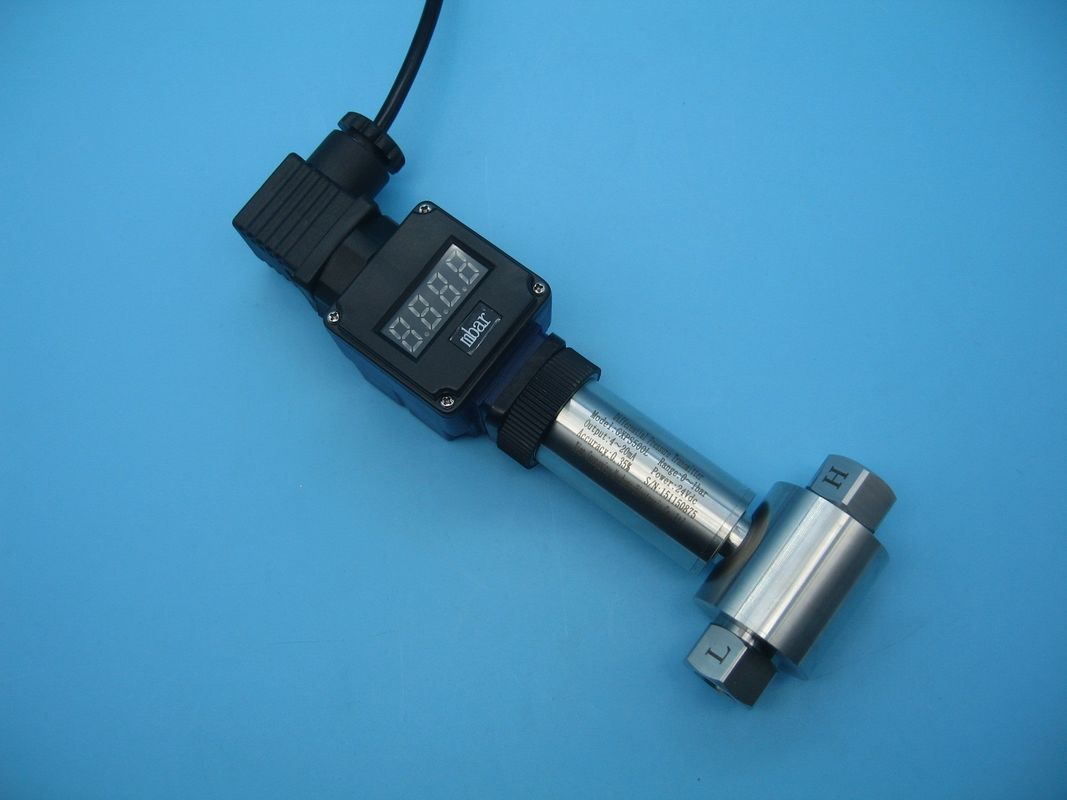

GXPS500 4-20ma differential pressure transmitter
1. Parameter--4-20ma differential pressure transmitter
| Spec. | Value | |||||
| Pressure range | 0~±5kPa...±5000kPa | |||||
| Load pressure | 1.5times nominal value pressure (1.5X) | |||||
| pipeline Isostatic pressing | 3, 5, 10 times nominal value 20MPa | |||||
| Accuracy | 0.25, 0.5%F.S | |||||
| Stability | Typical value 0.1%F.S, Max. value: 0.2%F.S | |||||
| Operating temperature | -40°C~85°C | |||||
| Compensation temperature | -10°C~70°C | |||||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||||
| Electrical performance | 2 wire system | 3 wire system | ||||
| Output signal | 4~20mA | 0~5V | 1~5V | 0~10V | ||
| Power supply | 10~30Vdc | 8~36Vdc | 11~30Vdc | |||
| Load pressure | (U-10)/0.02(Ω) | > 100kΩ | ||||
| Insulation | > 100MΩ @50V | |||||
| Electric strength | 500V@60 second | |||||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||||
| Pressure durable | 2×106pressure circle @25°C | |||||

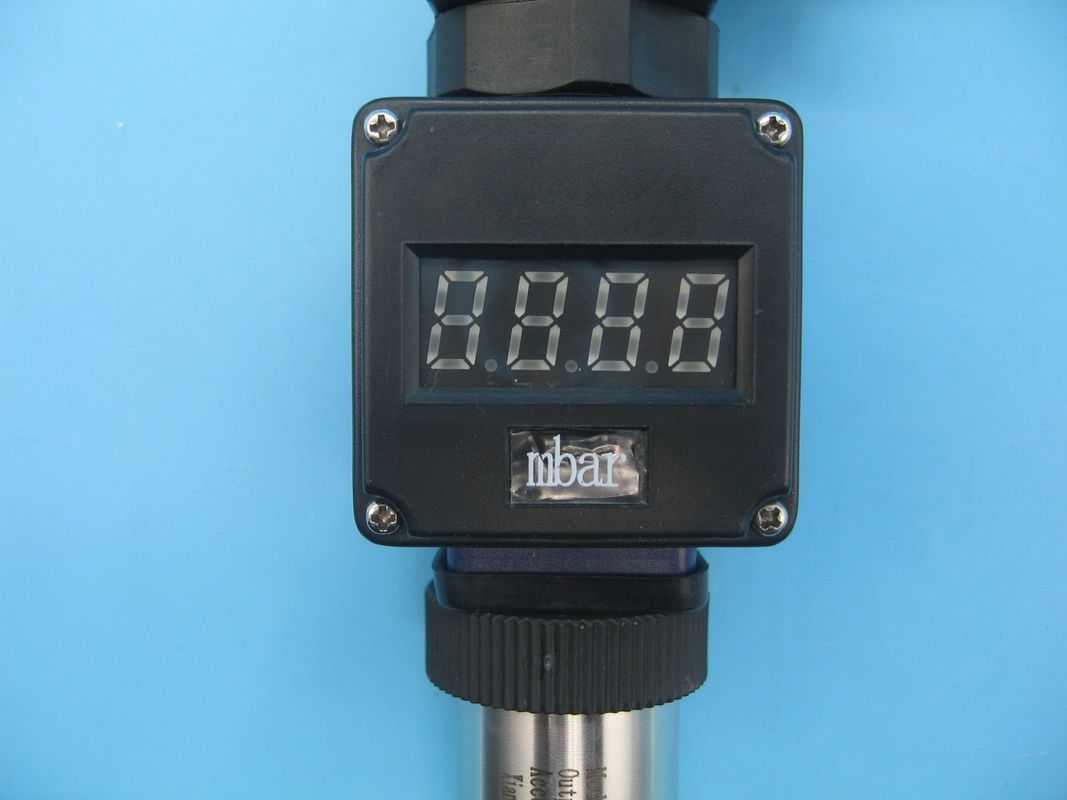

| Display range | -999~1999@(PS110&PS111) | |||||
| Contact capacity | (24V, 1A)@PS111 | |||||
| Electrical connection | Hirsmann , air plugs, fixed cable, water proof cable | |||||
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |||||
| Pressure type | G, S | Response time: 10ms | ||||
| Certificate | Intrinsically safe mode E, CE | |||||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||||
2. Electronic interface and signals definition
| Electric connection | |||||
| 2 wire | 3 wire | 4 wire | Cable | Hirsman | Connector |
| Power | Power | Power+ | Red | 1 | 1 |
| Output | Output | Output+ | Blue | 2 | 2 |
| Power ground | Power- | Black | 3 | 3 | |
| Output- | Green | ||||
| Shielded | Shielded | Shielded | Yellow | 4 | |
3. Feature
Accuracy: 0.25, 0.5%F.S
Diffused silicon oil-filed core
Multiple pressure range and output signal
Various screw connection
Non-polarity 2 line current output
DC&AC voltage output
CE certificate, intrinsically safe prevent explode, isolation explosion protection
Against servere electromagnetic interference, lightning protection
********************************************************************************************
GXPS540 Low Differential Pressure Transmitter
1. Instruction
GXPS540 Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.
2. Parameter
| Measuring range: | 0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa |
| Protection: | IP65 |
| Medium Measurement: | Non-corrosive dry gas; weak corrosive and damp gas |
| Output signal: | 4~20mA, 1~5V, 0~5V Optional |
| Operating voltage: | 24VDC |
| Accuracy: | ±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional |
| Adjustment | Zero and range are adjustable externally |
| Medium temperature: | -10~100°C |
| Ambient temperature : | -20~80°C |
| Electric Interface: | outlet cable |
| Shell material: | Aluminum alloy |
3. Dimension
4. Package:
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
Question1
How can I get the proper product?
Answer,
It's better if you can supply us the parameters, such as the power supply you request, the measure range you need.
the output signal you need,
also if you are not familiar with the parameters above ,you can supply us the application field information.
what kind product you used before.
Question 2
What about the warranty?
Answer,
The normal warranty is 12 months.
Question 3
We want samples first, do you support?
Answer,
Yes, we support samples. It's better for both sides.
