QA-750 Accelerometer Sensor ±30g Range Stainless Steel

linear acceleration sensor

triaxial acceleration sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

QA-750

Document:

Q-FlexQA-750Accelerometer_b...ro.pdf

Request A Quote

QA-750 Accelerometer Sensor ±30g Range Stainless Steel

Product Details

Name:

Accelerometer

Bias:

Input Range:

±30

Input Voltage:

±13 To±18

Case Material:

300 Series Stainless Steel

Type:

QA-750

Highlight:

linear acceleration sensor

triaxial acceleration sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Pieces per Week

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Get Best Price

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Get Best Price

Quartz acceleration sensors for microgravity measurement devices with Threshold ≤1 (μg) and Resolution ≤1 (μg)

Get Best Price

Quartz accelerometers for vibration detection with Bias ≤5mg and Bias One-month Composite Repeatability ≤30(μg)

Get Best Price

86--17719566736

Contact Now

Product Description

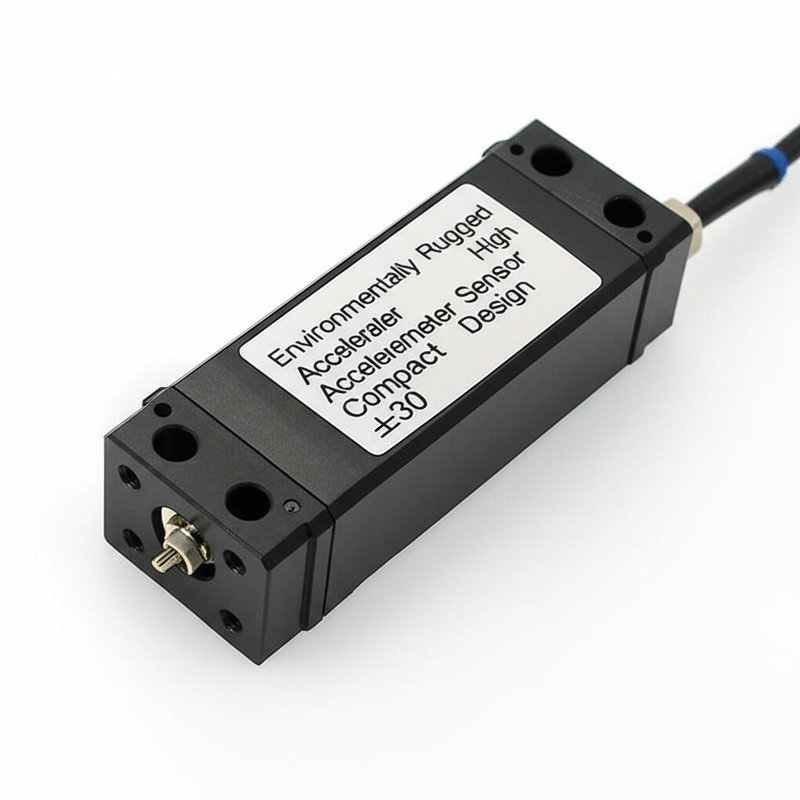

Environmentally Rugged Accelerometer Sensor High Precision Compact Design, Input Range ±30

Product Attributes

Attribute	Value
Name	Accelerometer
Bias	<8
Input Range	±30
Input Voltage	±13 to ±18
Case Material	300 Series Stainless Steel
Type	QA-750

Product Description

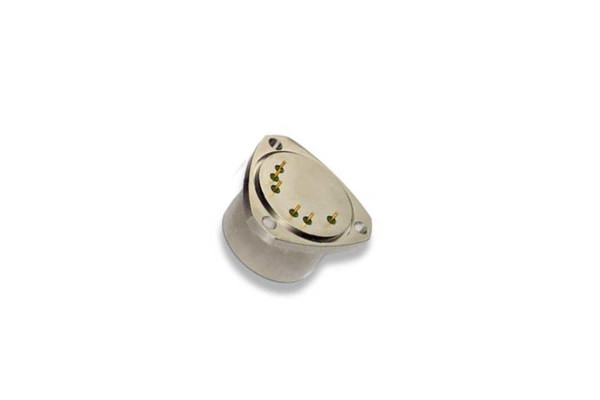

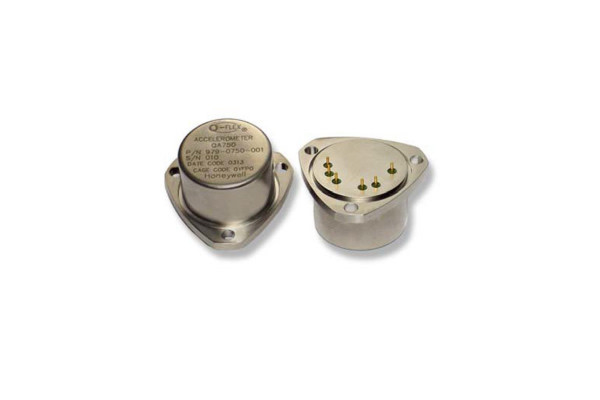

Q-Flex^® QA-750 Accelerometer

Cost-effective inertial-grade sensor

For Q-Flex technology in an economical package, Honeywell produces the QA750 for a broad array of moderate performance applications. As with the entire Q-Flex family of accelerometers, the QA750 features patented Q-Flex^® etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability.

The integral electronics develops an acceleration proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

As an option, the QA750 can be provided with the temperature-compensating algorithm where bias, scale factor, and axis misalignment performance are dramatically improved. Robust design and quality assurance provides superior reliability.

Features

High value
Environmentally rugged
Analog output
Compact design
Field-adjustable range
Built-in test
Optional thermal compensation

Configuration Drawings

Technical Specifications

Performance
Input Range [g]	±30
Bias [mg]	<8
One-year Composite Repeatability [µg]	<1000 (w/o model data)
Temperature Sensitivity [µg/ºC]	<60
Scale Factor [mA/g]	1.20 to 1.46
One-year Composite Repeatability [ppm]	<1000 (w/o model data)
Temperature Sensitivity [ppm/ºC]	<190
Axis Misalignment [µrad]	<7000
One-year Composite Repeatability [µrad]	<300
Vibration Rectification [µg/g2rms]	<60 (50-500 Hz) <200 (500-2000 Hz)
Intrinsic Noise [µg-rms]	<7 (0-10 Hz) <70 (10-500 Hz) <1500 (500-10,000 Hz)
Environment
Operating Temperature Range [ºC]	-55 to +95
Shock [g]	200
Vibration Peak Sine [g]	20 @ 30-500 Hz
Resolution/Threshold [µg]	<1
Bandwidth [Hz]	>300
Thermal Modeling
-010	NO
-020	YES
Electrical
Quiescent Current per Supply [mA]	<16
Quiescent Power [mW] @ ±15 VDC	<480
Electrical Interface	Temp Sensor Voltage Self Test Power / Signal Ground
Input Voltage	±13 to ±18
Physical
Weight [grams]	52.5 ±4
Diameter below mounting surface [inches]	Ø1.07 ±0.01
Height - bottom to mounting surface [inches]	.600 Max
Case Material	300 Series Stainless Steel
