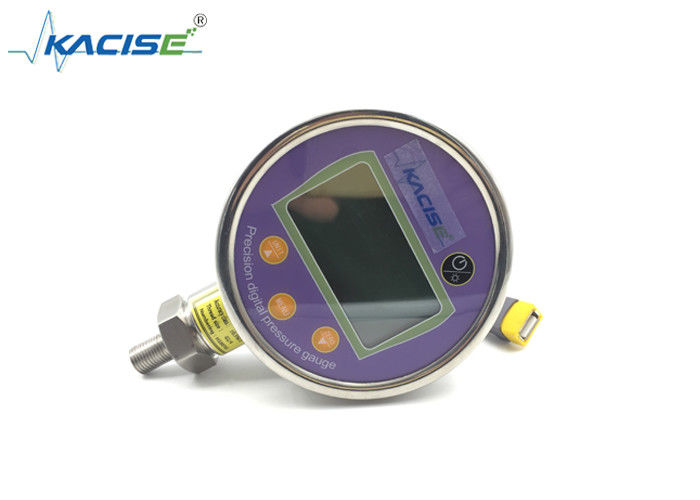

High accuracy precision data logger GXPS201C digital pressure gauge 5 digit dynamic display 3.6V lithium battery
Product introduction
The new generation of GXPS201C Digital Pressure Gauge with Data Logger uses touch button. Increase the lifespan and waterproof grade of keys simultaneously Improve the ability of human-computer interaction, All kinds of parameters are set. Convenient customer personalization are set.
Product features
● Touch key,and with a key tone,effectively improving the service life of keys.
● Using 4000mAh lithium battery for power supply (ER18505H),low power design.
● Battery replaceable design,It is convenient for customers to replace the batteries by themselves.
● Wide temperature temperature compensation,the application of various harsh environments.
● Peak record,Unit conversion,Complete function,Easy to use.
● Users can set their own acquisition rate according to their habits,automatic shutdown time,key lock
time,backlight automatic closing time and other parameters.
● 11 kinds of pressure unit conversion,and can set the unit that needs to be converted,shut down the
units that are not commonly used.
● Add the function of restoring the performance of the factory.
In the process of user operation,if the operation is wrong,you can use this function,Restore pressure
gauge to factory calibration data and set function.
● Prevent touching other keys, adding lock keys.
In use,You can press the lock key,there will be a lock - locked pattern on the screen,lock other touch
keys,and it doesn't affect pressure and use.After the completion of the use,can unlock and turn off the
machine.
Specification
| Item |
Spec. |
| Pressure range |
-100kpa~250pa~5kpa~250Mpa |
| Accuracy |
0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02% |
| Display |
5-digit dynamic display + percentage indicator |
| Pressure unit |
Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2 |
| Overload pressure |
150% FS |
| Destruction pressure |
200% FS |
| Power supply |
4.2V rechargeable lithium battery |
| Temperature |
-20 ℃ ~ 60 ℃ |
| Humidity |
≤ 85% RH |
| Calibration environment |
20 ℃ ± 2 ℃ |
| Explosion-proof level |
ExiaIICT4 optional |
| IP Grade |
IP66 |
| Data record limit |
11000 (50000 Selective) |

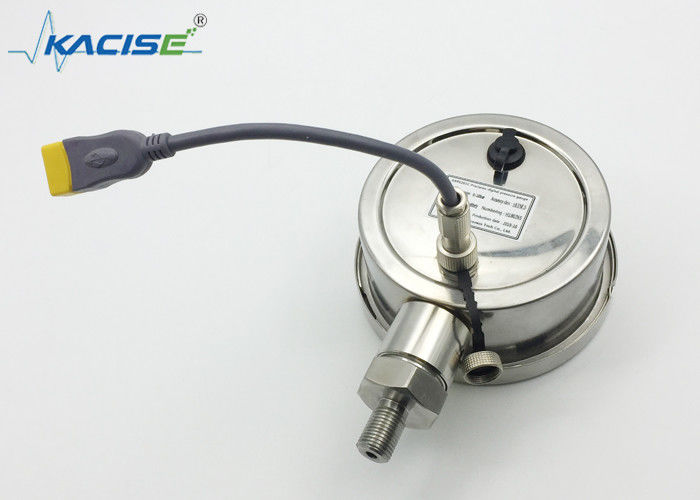

| Process connection |
M20 × 1.5 (male), special thread customizable |
| Dimensions |
height 170mm, width 110mm, thickness 50mm |
Description
KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.
Features
• Wide temperature compensation, ultra-low power consumption.
• Unit changing, peak valley and other functions fully preserved.
• Multi additional setting and functions available, user can set by environment and habits.
• IP grade ≧ IP66, higher than the industry level.
| Precision Grade: |
0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS |
Pressure Range: |
-100kPa～0～600kPa～250MPa |
| Ambient Temperature: |
(-20～50)℃ |
Relative Humidity: |
＜95% |
| Atmospheric Pressure: |
(86～106)kPa |
Storage Temperature: |
(-30～80)℃ |
| Display: |
SFTN Liquid Crystal Display,White Backlight,5 Digit Display. |
Power Supply Mode: |
4.2V Rechargeable Lithium Battery |
| Installation Method: |
Radial Installation,axial Belt Mounting Plate,Split Type Installation
|
Display:
SFTN liquid crystal display,White backlight,5 digit display.
Power supply mode:
4.2V rechargeable lithium battery；
Power supply for external AC220V adapters；
Can be connected between DC12V~DC36V.
