Detailed Product Description
Usage:: Industrial Machinery Application:: Aerial Camera Gimbal Photography Drone Shooting Shock Vibration Insulation GR1 Series Camera Vibration Isolator
Type:: Noise And Attenuation Material:: Aluminum Or Stainless Steel
Certificate:: ISO9001:2008
High Light:

wire rope shock absorber

,

vibration isolation dampers

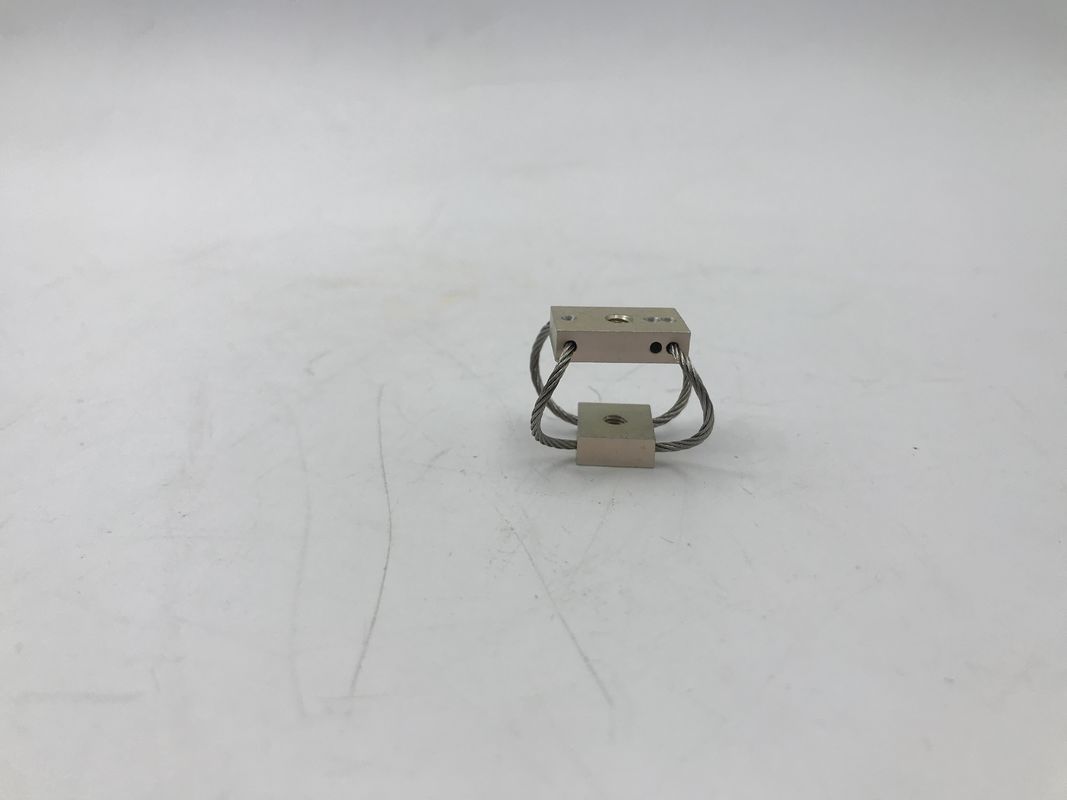

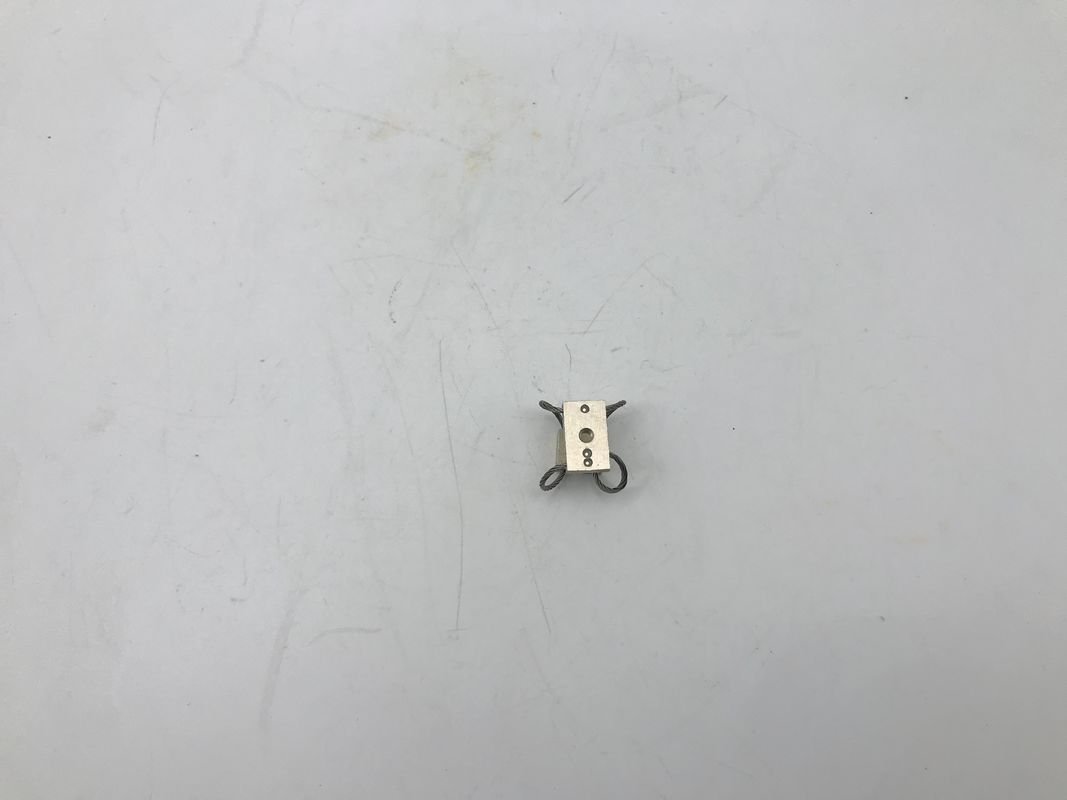

GR4 Exquisite Camera Gimbal Stabilizer Helicopter Drone Shock Vibration Insulation Stainless Steel Camera Vibration Isol





1. Feature



● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices







2. Product Description







GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.



Lightweight Small Size Wire Rope Vibration Isolator For Industrial Machinery 0



3.Parameters



Dimension Parameter Table

Model Height ±1.5(mm) Width (mm) Weight (kg) MountingOptions Thru Hole(mm) Thread (mm) C’sink
GR4-100 42 47 0.63 A,B,C,D,E,S φ7 M6x1.0 90
GR4-200 53 54 0.63
GR4-300 60 59 0.68
GR4-400 75 58 0.77



Table 1 GR4 Series Technical Parameters

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR4-100 24 19.6 12 5.8
GR4-200 18 29.7 6 2.5
GR4-300 13 35.8 4.4 1.6
GR4-400 6.7 49.3 2.2 0.7



Table 2 GR4 45°Compression/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR4-100 11 19.3 6.4 2.8
GR4-200 6.7 29.5 3.1 1.1
GR4-300 5.3 37.1 2.2 0.7
GR4-400 3.6 52.3 1.1 0.4



Table 3 GR4 Shear/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR4-100 8.5 17.3 1.9 1.9
GR4-200 7.1 26.4 1.1 1.1
GR4-300 5.3 33.3 0.7 0.7
GR4-400 3.3 47 0.4 0.5





4. Application Field

Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers,
Machinery
Explosive blast,
Inherent vibration, Storms
Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection
Rough Terrain Vehicles Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



Lightweight Small Size Wire Rope Vibration Isolator For Industrial Machinery 1Lightweight Small Size Wire Rope Vibration Isolator For Industrial Machinery 2
