Pressure Plate Industrial Vibration Isolators 7Hz - 15Hz Military Grade ISO9001

5 6KG Dynamic load Military-grade Pressure plate Symmetrical and Antisymmetric Wire Rope Isolator

1. Product Description

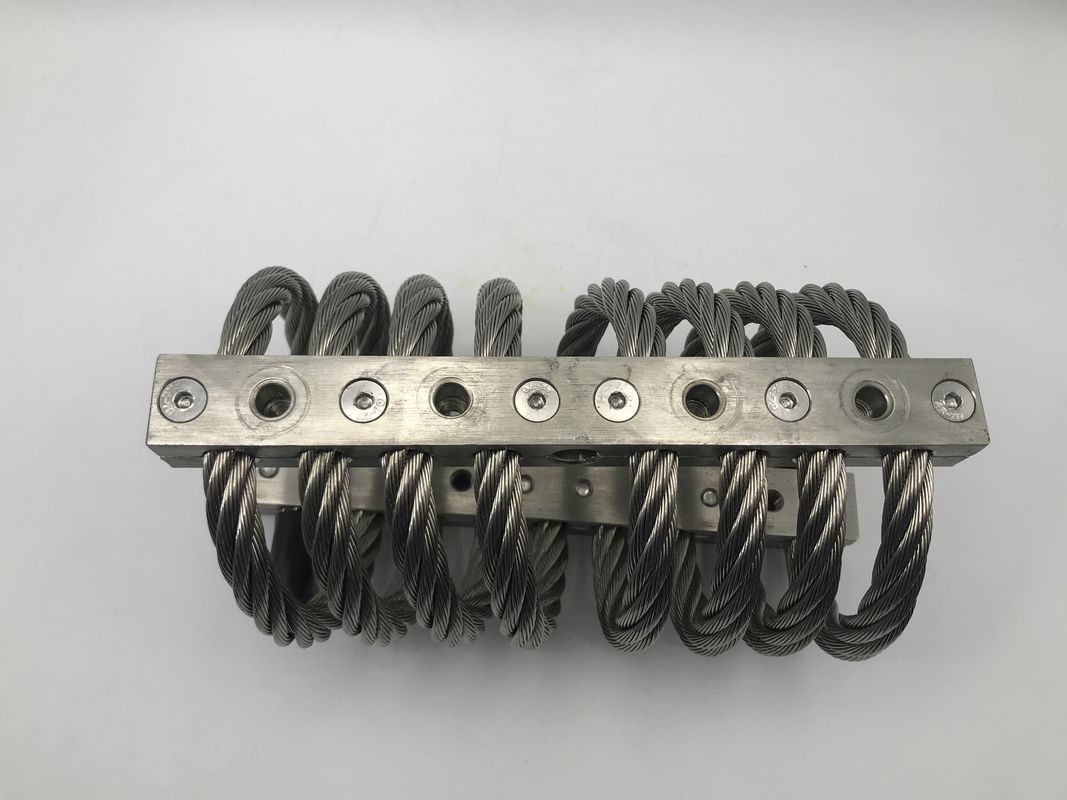

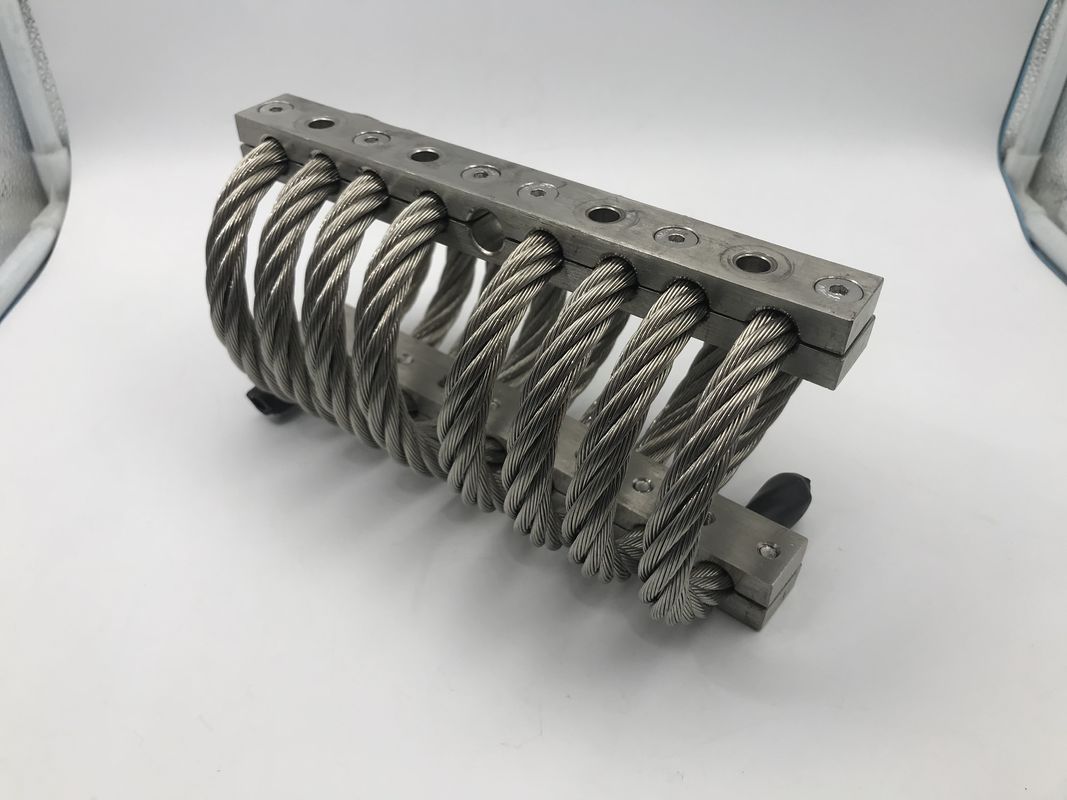

Wire rope isolators are robust mounting systems consisting of high-quality stranded wire ropes secured by rugged metal retainers. Each isolating component possesses a distinct response profile determined by factors such as wire rope diameter, strand count, cable length, twist or lay of the cable, and the quantity of cables per section.

The inherent damping is introduced through flexure hysteresis, which arises from the friction generated by the rubbing and sliding between the wire rope strands.

These isolators offer superior levels of isolation compared to other mediums or designs, showcasing exceptional vibration damping. Cable mounts are truly distinctive, tailored to a wide array of physical and engineering prerequisites that span nearly every conceivable isolation demand. They have dispelled the belief that a solitary mount cannot effectively manage both shock and vibration.

For instance, consider the GH Series ALL Metal Wire Rope Isolator: It displays dynamic features of three-dimensional variable stiffness and variable damping. This design serves to fulfill isolation and noise reduction necessities for applications encompassing aircraft, communications equipment, oil tanks, logging trucks, ocean transportation, and more. It allows electronic devices to function seamlessly in challenging mechanical environments, positioning isolators as an ideal replacement for traditional methods.

2. Type

3. Feature

● High temperature resistance, strong corrosion resistance, easy to install and install

● Universal damping,strong impact resistance,durable

● Good earthquake resistance

● Mounting holes can be customized

4. Application Field
