| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KUA-40-12PB-F |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 9 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Model: | KUA-40-12PB-F | Frequency: | 40KHz±5% |
|---|---|---|---|
| Range: | 0.5～12m | Minimum Impedance: | 390Ω±20％ |
| Capacitance: | 5200pF±20％ @1KHz | Sensitivity: | Emits Voltage:700Vpp,distance 0.6m, Echo Amplitude 450mV |
| Working Voltage: | Peak Point Voltage＜1500VPP | Working Temperature: | -40～+80℃ |
| Pressure: | ≤3kg Or 0.3MPa | ||
| High Light: | waterproof ultrasonic sensor,ultrasonic fuel level sensor |
||
| Item | Parameters |

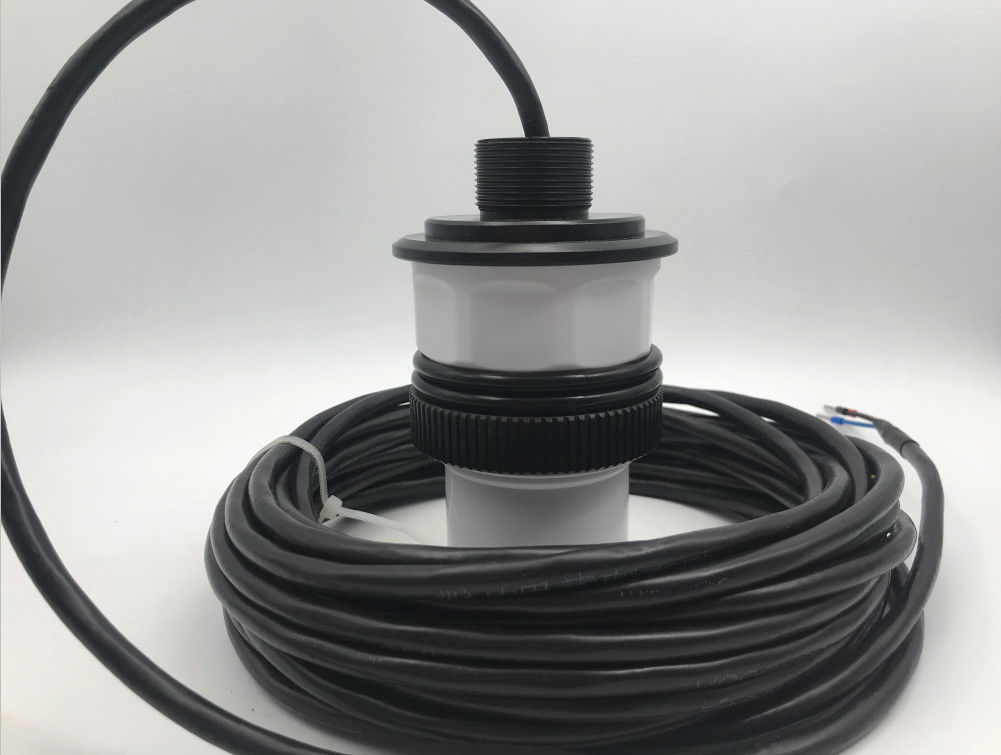

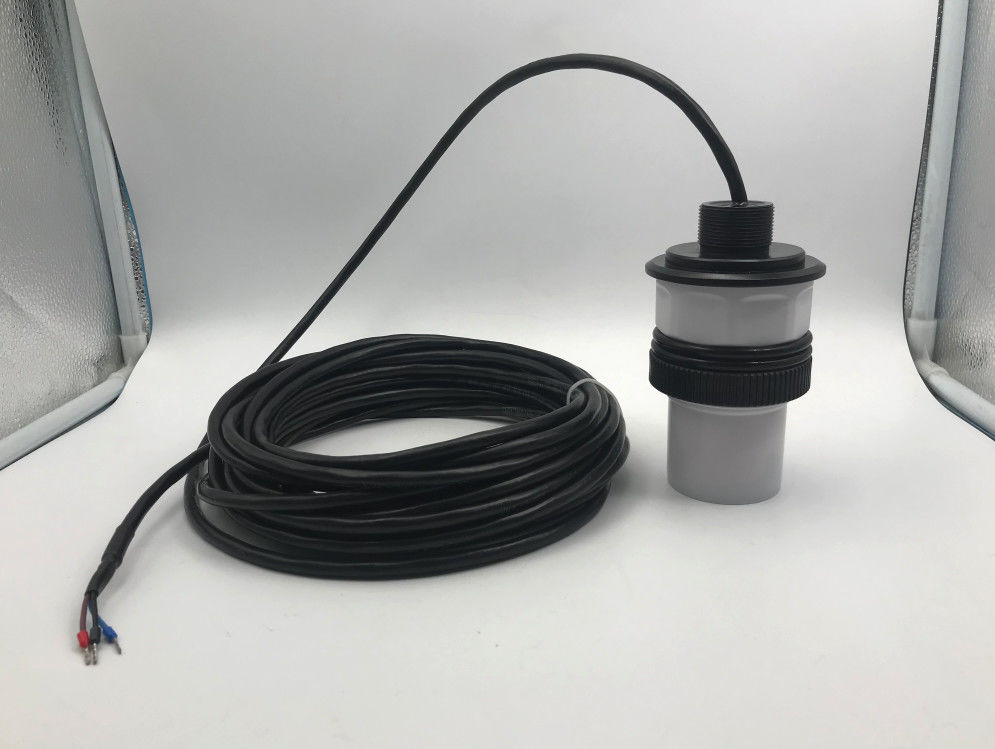

| Name | 12m Anti-corrosion Transducer Model PB |
| Model | KUA-40-12PB-F |
| Frequency | 40KHz±5% |
| Range | 0.5～12m |
| Minimum impedance |
390Ω±20％ |
| Capacitance | 5200pF±20％ @1KHz |
| Sensitivity | emits voltage:700Vpp,distance 0.6m, echo amplitude 450mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature |
-40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle | (Beam width) half-power angle@-3dB:10°±2, Sharpness angle: 23°±4 |
| Housing material | POM, PVDF |
| Usage | ultrasonic level sensor, monitor, anti-collision, security |
| IP grade | IP68 |
| Weight | 950g±5％(cable length: 10m) |
Company Information
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years.
