| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KXTUF |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD200~USD1000 |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 10000pcs/month |
| Accuracy: | 0.5 Grade, 0.2 Grade,1 Grade | Product Name: | Turbine Flow Meter |
|---|---|---|---|
| Range Ratio: | 1:15, 1:20, 1:10 | Sensor Mateiral: | 304, 316(L) Stainless Steel Etc. |
| Connecting Method: | Flange | Power Supply: | +12V DC, +24V DC (optional) |
| Medium Temp.: | -20~120 | Protection: | IP65 |
| High Light: | Diesel Fuel Turbine Flow Meter,Flanged Type Digital Meter,Liquid Water Turbine Flow Meter |
||

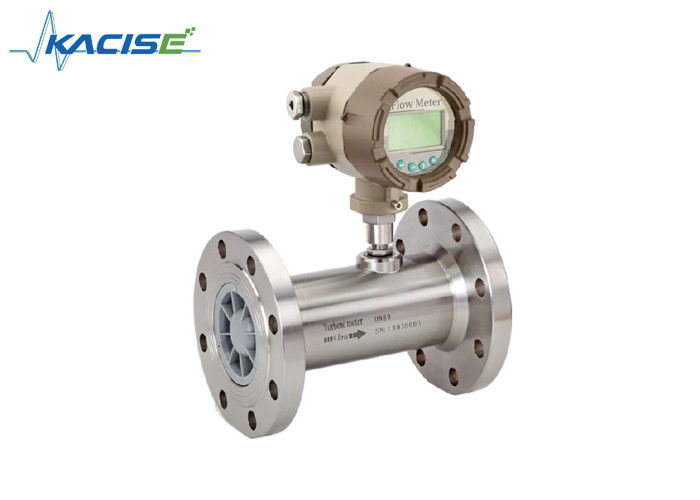

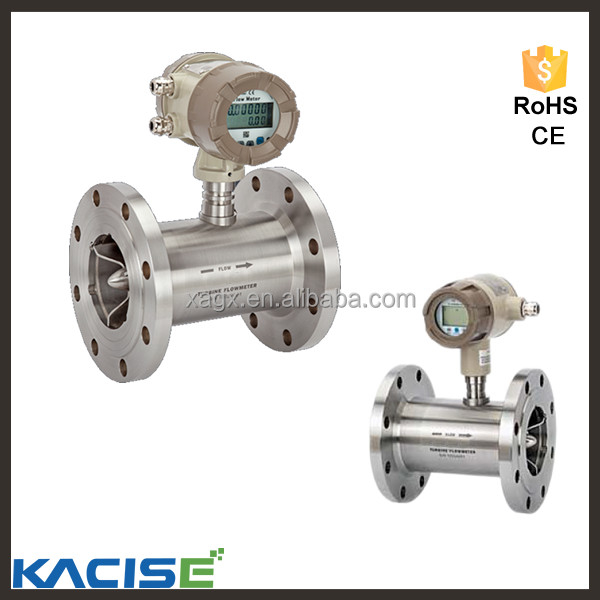

KXTUF flanged type Digital mettering liquid diesel fuel water with turbine flow meter high accuracy 4-20ma output
Description
KXTUF turbine flow meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
Turbine flow metera flow meter that widely applied in industries of pharmaceutical, food, beverage for measurement, batching, control, filling, etc. Rotating part of the flow meter is made of special material that possesses good anti-corrosive and rust proof performance. Structure of the flow meter is special designed and greatly approved accuracy and repeatability of the flow meter. Product also with easy maintenance connection, which is suitable for pharmaceutical and beverage industries.
Features
☆ High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
☆Good repeat-ability, short-term repeat-ability up to 0.05% ~ 0.2%, in the trade settlement is the preferred choice of flow meter.
☆ Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong interference resist
☆ High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
☆ Wide range, medium and large diameter up to 1:20, small caliber 1:10.
☆ Compact structure & convenient maintenance
Specifications
| Paremeter | Value | Unit | |
|
Diameter |
Thread | 4, 6, 10, 15, 20, 25, 32, 40 | mm |
| Flange(Clamp) | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200 | mm | |
| Accuracy | ±1, ±0.5, ±0.2 (customized) | %R | |
| Range ratio | 1:10, 1:15, 1:20 | ||
| Sensor material | 304, 316(L) stainless steel etc. | ||
|
Working environment |
Medium temp. | -20~120 | °C |
| Ambient temp | -10~55 | °C | |
| Relative humidity | 5%~90% | ||
| Atmospheric pressure | 86~106 | KPa | |
| Signal output |
Sensor: pulse frequency signal, low electrical level≤0.8V, high level≥8V Transmitter: two wire, 4-20 mA DC current signal |
||
| Comm interface | RS485 | ||
|
Power supply
|
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell or +24VDC external |
||
| Signal Transmission Wire | STVPV3×0.3 (3 wire), 2×0.3 (2 wire) | ||
| Transmission Distance | No more than 1000 | m | |
| Signal Line Interface |
Basic type: Hausman connector or 3-core wire; Explosion-proof type: M20 × 1.5 (F) |
||
| Explosive-proof grade |
Basic type: non-explosion proof; explosion proof type: ExdIIBT6 |
||
| Protection level | IP65 | ||
Measuring Range & Working Pressure
|
Diameter (mm) |
Standard Range (m3/h) | Extended Range (m3/h) |
Normal Connection & Pressure Rating (MPa) |
Special Pressure Rating (MPa) (Flange Connection) |
| DN4 | 0.04~0.25 | 0.04~0.4 | Thread connection/6.3 | 10, 16, 25 |
| DN6 | 0.1~0.6 | 0.06~0.6 | Thread connection/6.3 | 10, 16, 25 |
| DN10 | 0.2~1.2 | 0.15~1.5 | Thread connection/6.3 | 10, 16, 25 |
| DN15 | 0.6~6 | 0.4~8 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN20 | 0.8~8 | 0.45~9 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN25 | 1~10 | 0.5~10 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN32 | 1.5~15 | 0.8~15 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN40 | 2~20 | 1~20 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN50 | 4~40 | 2~40 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN65 | 7~70 | 4~70 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN80 | 10~100 | 5~100 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN100 | 20~200 | 10~200 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN125 | 25~250 | 13~250 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
| DN150 | 30~300 | 15~300 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
| DN200 | 80~800 | 40~800 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
Dimension
Diagram 1 (DN4~DN10): Threaded connection type turbine flow sensor (including straight pipe section).
Diagram 2 (DN15~DN40): Thread connected flow sensor size drawing.
Diagram 3 (DN4~DN10): Flange connected turbine flow sensor drawing.
Sensor installation method according to different specifications, Adopt thread or flange connection, the installation method is shown in diagram 1, 2, 3
Installation dimensions
| Diameter(mm) | L(mm) | G | K(mm) | D(mm) | n(hole) |
| 4 | 295 | G1/2 | |||
| 6 | 330 | G1/2 | |||
| 10 | 450 | G1/2 | |||
| 15 | 75 | G1 | Φ65 | Φ14 | 4 |
| 20 | 80 | G1 | Φ75 | Φ14 | 4 |
| 25 | 100 | G5/4 | Φ85 | Φ14 | 4 |
| 32 | 140 | G2 | Φ100 | Φ14 | 4 |
| 40 | 140 | G2 | Φ110 | Φ18 | 4 |
| 50 | 150 | Φ125 | Φ18 | 4 | |
| 65 | 170 | Φ145 | Φ18 | 4 | |
| 80 | 200 | Φ160 | Φ18 | 8 | |
| 100 | 220 | Φ180 | Φ18 | 8 | |
| 125 | 250 | Φ210 | Φ18 | 8 | |
| 150 | 300 | Φ240 | Φ22 | 8 | |
| 200 | 360 | Φ295 | Φ22 | 12 |
Ordering information
| Model | Remarks | |||||||
| KTF | ||||||||
| DN | 4 | 4 mm | ||||||
| 6 | 6 mm | |||||||
| 10 | 10 mm | |||||||
| 15 | 15 mm | |||||||
| 20 | 20 mm | |||||||
| 25 | 25 mm | |||||||
| 32 | 32 mm | |||||||
| 40 | 40 mm | |||||||
| 50 | 50 mm | |||||||
| 65 | 65 mm | |||||||
| 80 | 80 mm | |||||||
| 100 | 100 mm | |||||||
| 125 | 125 mm | |||||||
| 150 | 150 mm | |||||||
| 200 | 200 mm | |||||||
| Type | N | Sensor type: +12V or 24V power, output 3 wire system pulse signal | ||||||
| A | Transmitter type: +24V power, output 2 wire 4-20 mA | |||||||
| B | Smart type: lithium cell, local indicator, without signal output | |||||||
| C | Smart type: +24V power, local indicator, 2 wire 4-20mA/pulse output | |||||||
| C1 | Smart type: +24V power, local indicator, RS485 communication | |||||||
| protocol | ||||||||
| C2 | Smart type: +24V power, local indicator, HART protocol | |||||||
| Accuracy | 05 | 0.5 | ||||||
| 10 | 1.0 | |||||||
| 02 | 0.2 (Special order, long delivery time) | |||||||
| Range | W | Extended Measuring Range | ||||||
| S | Standard Measuring Range | |||||||
| Body Material | S | 304 SS | ||||||
| L | 316 (L) SS | |||||||
| Explosion Proof | N | Non Explosion proof | ||||||
| E | Explosion proof, ExdIIBT6 | |||||||
| Pressure Rating | N | Normal | ||||||
| H (x) | High Pressure | |||||||
