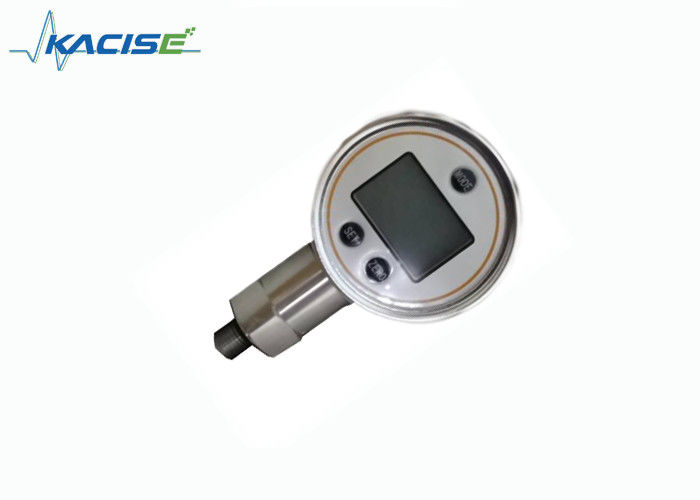

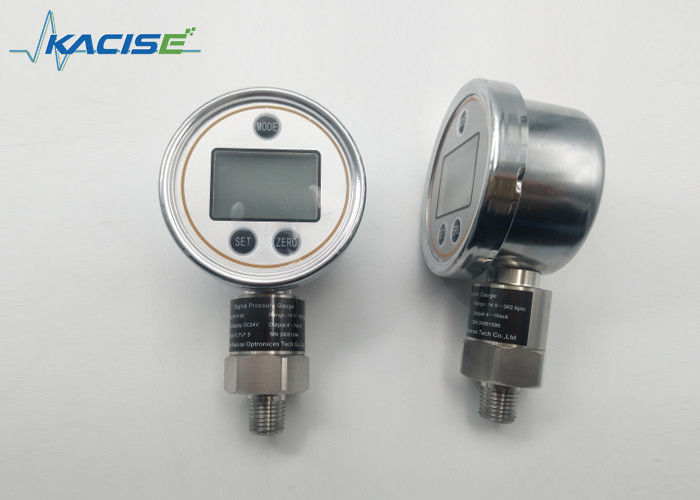

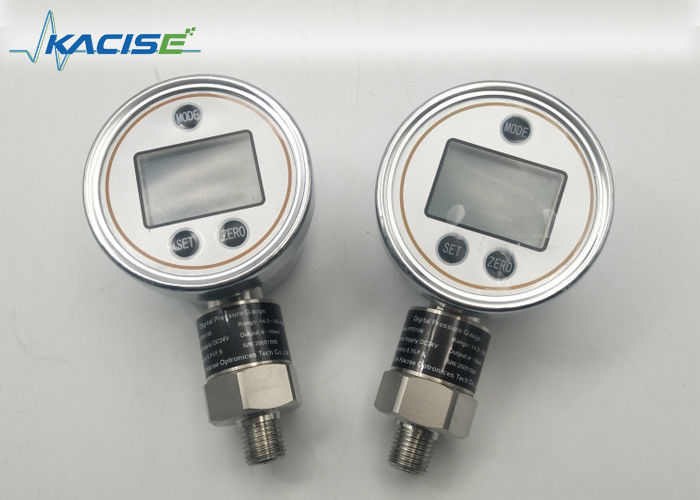

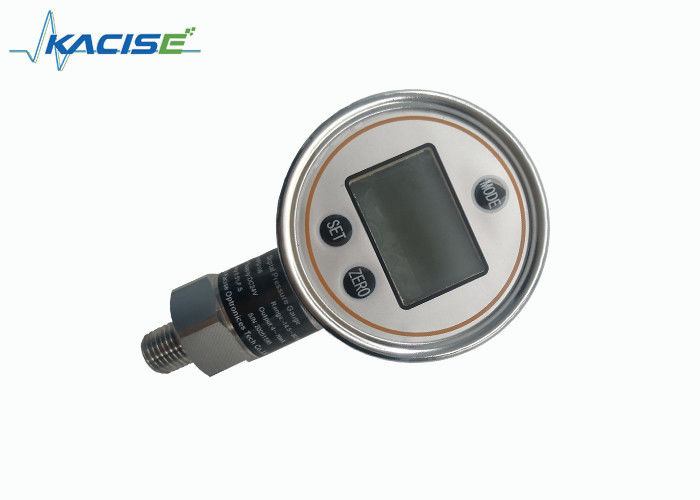

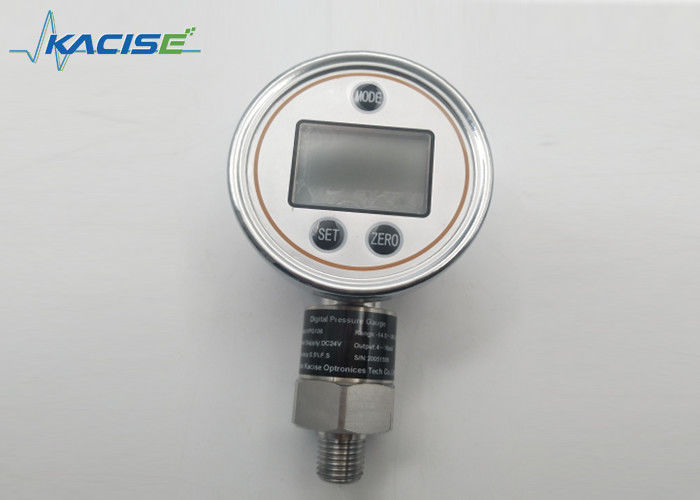

60mm Precision Digital Pressure Gauge Stainless Steel Digital / LCD pressure display

60mm Precision Digital Pressure Gauge Stainless Steel Digital / LCD pressure display

stainless steel pressure gauge

submersible pressure sensor

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KPG106

Contact Us
Request A Quote
Product Details
Range:
-0.1…0~0.01…100MPa
Accuracy:
±0.5%FS
Overload::
200%
Pressure Type::
Gauge
Long Term Stability::
≤0.1%/year
Power ::
24VDC /220VAC
Display:
0.56” LED
Display Range::
-1999~9999
Operating Temperature::
-20~70 ℃
High Light:

stainless steel pressure gauge

,

submersible pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability
1000 Pieces per Week
Product Description

High Accuracy 60mm Stainless Steel 5 LCD Digital Manometer Digital Vacuum Pressure Gauge Pressure Gauge Manometer





1. Product Description



KPG106 digital pressure gauge adopts imported pressure sensitive components, uses computer laser trimming for temperature compensation, and adopts integrated junction box design. With a dedicated terminal and digital display, easy installation, calibration, and maintenance. This series of products are suitable for various enterprises and institutions such as petroleum, water conservancy, chemical industry, metallurgy, electric power, light industry, scientific research, environmental protection, etc. to realize the measurement of fluid pressure and apply to all weather conditions and various corrosive fluids in various occasions.



2. Product features

  • Multiple range options
  • Digital, LCD pressure display;
  • Range debugging is convenient;
  • Reverse polarity protection and current limit protection
  • Lightning strike, shock resistance;
  • Small size, beautiful appearance, high cost performance;
  • High precision, high stability, high reliability

3. Parameter



Pressure range -0.1~0~100MPa Accuracy 0.2% , 0.5%
Overload capacity 200% Output signal 4~20mA
Stability ≤0.1% / year Power supply 12~30VDC

Display

LCD

Display range

-19999~99999

Ambient Temperature -20℃~70℃

Relative humidity

≤80%

Mounting thread

M20*1.5

Interface Material

Stainless Steel



4. Dimension (unit: mm)

60mm Precision Digital Pressure Gauge Stainless Steel Digital / LCD pressure display 0


5. ELECTRIC CONNECTION

Red: POWER +
Yellow: POWER -
Blue: OUT +
Green: OUT –

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.





6.Company Information

Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.



When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.



pressure manometer gauge can be customized by your special request, We can supply technical consulting service for your user.

The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:

1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.



7.FAQ



1. Q: What information need to be provided to choose the suitable model?

A: Application field, measuring range, output, accuracy, connection and other related parameters.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.

8. Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our pressure manometer gauge work perfectly for you.
