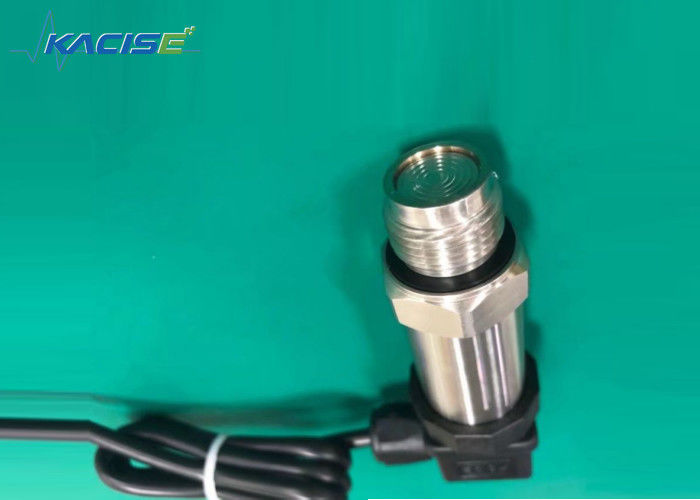

Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter

Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter

  • Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter
  • Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter
Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter
Product Details:
Place of Origin: CHINA
Brand Name: KACISE
Certification: CE
Model Number: GXPS100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 3-8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000000pcs/month
Contact Now
Detailed Product Description
Range: 0~500m Accuracy: ±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Output: 4-20mA, 0~5V, 1~5V, 0~10V Material: SS, 316L
Model: GXPS100 Name: Water Pressure Sensor
High Light:

high accuracy pressure sensor

,

piezoresistive pressure transmitter

Hirschman connector water pipe pressure sensor water tank pressure transmitter MEMS diaphragm 4-20mA output 24V input







Feature

DC&AC output

Accuracy: 0.5%F.S

Import high quality core

Non-polarity 2 line current output

Various connector and pressure port

Multiple pressure range and output signal

CE certificate, intrinsically safe prevent explode



Application

Petrochemical

Vessel pressure

Pipeline pressure

Gas storage facility

Refrigerating machine

Hydraulic and lubrication

Industrial Process Control

Constant pressure water supply



Introduction

The working principle of the pressure sensor is that the pressure of the measured water pressure directly acts on the diaphragm of the sensor, so that the diaphragm produces a micro displacement proportional to the water pressure, so that the resistance value of the sensor changes, and the electronic circuit detects the change, and converts a standard measurement signal corresponding to the pressure.



GXPS100 Series pressure transmitter is a high-volume, civil and industrial use, cost-effective products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.

The product uses 1Cr18Ni9Ti stainless steel structure, import the internationally famous brand of diffusion of oil-filled pressure core body, dedicated sensor instrumentation amplifier circuit which can facilitate to calibrate its zero and full scale.



Dimensions in mm

Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter 0

Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter 1

Micro Structure Water Pressure Sensor Water Tank Pressure Transmitter 2



Parameter



Spec. Value
Pressure range

0~0.2MPa...60MPa

2bar…600bar

29psi…8700psi

20000MmH20…6118000mmH2O

1.97atm…592atm

Load pressure 1.5 times nominal value pressure (1.5X)
Rupture pressure 3 times nominal value pressure (3X)
Accuracy ±0.5%F.S(PT 300 or MARS for higher accuracy are available)
Stability Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature -40°C~120°C
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0~5V 1~5V 0.5~4.5V 0~10V
Power supply 10~30Vdc 8~30Vdc 5V(ratio) 11~30Vdc
Load pressure (U-10)/0.02(Ω) >100kΩ
Insulation >100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure circle @25°C
Display range -999~1999@(PT110&PT111)
Contact capacity (24V, 1A)@PT111
Electrical connection Hirsmann , air plugs, fixed cable, water proof cable
Pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2



GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

  • Type: PS100=universal type, PS100E=intrinsically safe mode, PS110=PS100+indicator
  • Range: 0~0.2…60MPa, 0~2bar…600bar= the upper limitation of the range
  • Output:: A=4~20mA, V=0~5Vdc, V05=0.5~4.5Vdc, V1=1~5Vdc, V2=0~10Vdc
  • Power: 5Vdc, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
  • Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
  • Electric connection: H=DIN43650-A, GX=GX16-7, C=fixed cable outlet, CW=waterproof joint outlet
  • Cable length: XX m=XX meter 1-150m
  • Package: Bb, Foam



e.g. GXPS100-3MPa- A-0.5-DC24-P-Foam

PS100, test range is 0-3MPa, accuracy is 0.5%, 24Vdc power supply 4-20mA output, pressure port with M20X1.5, foam packaged.
