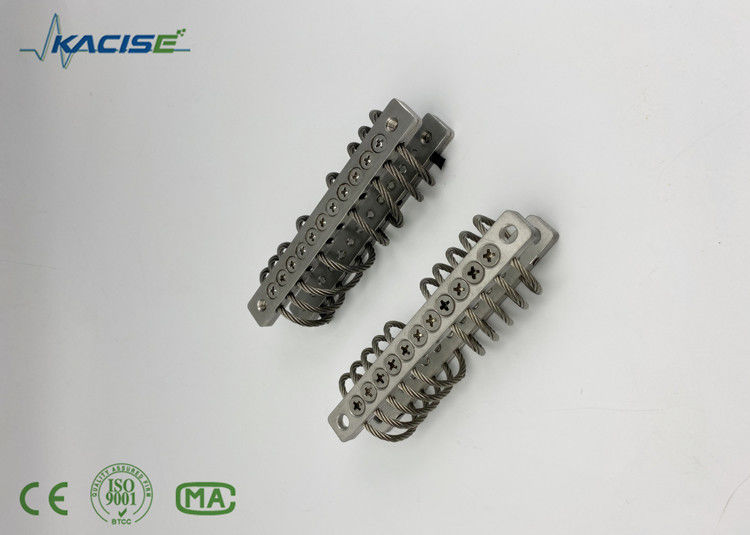

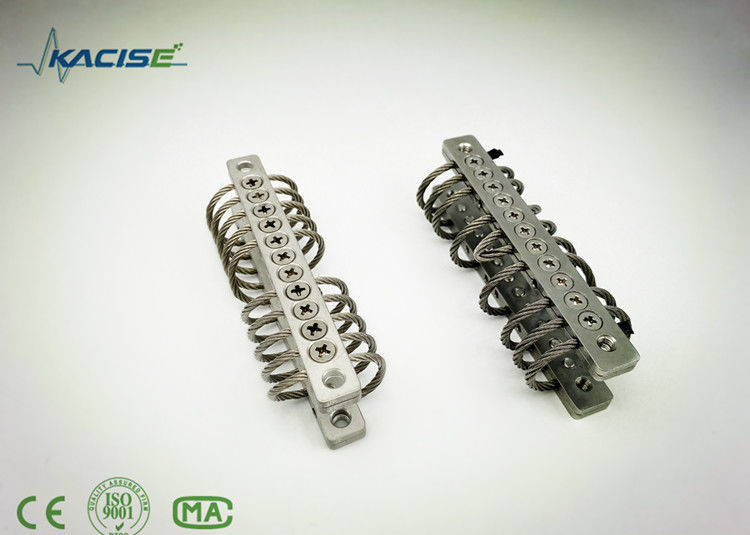

ISO9001 UV Radiation 178mm Wire Rope Vibration Isolator Durable And High Temperature Resistant Can Be Customized

Durable high temperature and customizable wire rope vibration isolator wire rope vibration isolator

1. Product Description

Wire rope vibration isolator is carbon steel or stainless steel frame and the standard of stainless steel cable according to certain elastic modulus calculation and design and manufacture of vibration and shock absorption device. Can effectively absorb vibration and impact energy, the protection device, reduce noise. The purpose of provides the high equipment life and system reliability. Our company produces the steel wire rope vibration isolator can effectively absorb vibration and impact, reduce noise. We use materials and
surface treatment, quality control methods, the properties of the product itself, guarantee the products in the high low temperature, chemical corrosion environment, strong oxidation reduction properties, much dust and high friction environment, excellent performance, stable and reliable. My company's widely used in wire rope vibration isolator, commercial transportation, navigation aviation, chemical engineering, national defense construction and other fields .

2. Materials & Finishes Products

Wire rope cable, we have adopted the international standard 304 stainless steel, plywood material, there are three ordinary steel, 304 stainless steel and aluminum alloy 6061-T6 material. All surfaces are made of plywood surface treatment to ensure that meet the relevant industry standards and military standard requirements. Can choose to have surface hot galvanizing wire rope or surface coating material such as nylon, can effectively increase the performance of the product in harsh environments.

3. Details

Schematic Diagram



Technical Parameters


Wire Rope Diameter

016-Wire rope diameter is 1.6mm
024-Wire rope diameter is 2.4mm
032-Wire rope diameter is 3.2mm
048-Wire rope diameter is 4.8mm
064-Wire rope diameter is 6.4mm
095-Wire rope diameter is 9.5mm
127-Wire rope diameter is 12.7mm
159-Wire rope diameter is 15.9mm
222-Wire rope diameter is 22.2mm
286-Wire rope diameter is 28.6mm
318-Wire rope diameter is 31.8mm

Wire Rope Loop

0—10 Loops of Wire Rope
8 -- 8 Loops of Wire Rope
6 -- 6 Loops of Wire Rope

4. Model Number Ordering Code



Splint Model

Empty:The default of the carbon steel material
C1A:The surface of galvanized white
C2B:The surface of galvanized blue and white
C2C:The surface of galvanized color
C2D:The surface of galvanized army green
C2E:The surface of galvanized gold
A:304 stainless steel surface passivation
B:316 stainless steel surface passivation
L:Grey anodized 6061 - T6 aluminum alloy
P:6061 - T6 aluminum alloy surface hard
CXX:Customers customized procurement

5. Feature


• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...


6. Application Field


7. How to choose Selection method of wire rope vibration isolator

Selection guide

Basic selection method, first need to know the product application scenario.

There are several elements of model selection:

1. Impact characteristics of the environment

2 load,

3. Energy spectral density of the environment,

4 Installation requirements,

5 other requirements.

1. Impact characteristics of the environment.From the different impact characteristics, it can be roughly divided into the following scenes:

1) Relatively common commercial application scenarios, such as road transportation, central air conditioning base, motor base, engine noise reduction, etc. Our conventional JGX series products can basically meet the requirements for such scenarios.

2) Harsh environment. Harsh environment includes armored vehicles, follow-through radar, high-power and strong vibration private service system, mining equipment, ocean-going ships, army mobile facilities, etc.The environment is harsh, the impact range is large, the temperature range is large, the working conditions are harsh.In this environment, the general impact is relatively large, complex working conditions, it is recommended to choose GX,GH, GN series products.

3) It is recommended to choose our JWZ series, JZP series and JMZ series under the condition of small installation space.

2. Load

After determining the application scenario, we need to confirm the range of static or dynamic loads which is the total weight of the equipment, and the vibration form of the environment in which the equipment is located, the vibration energy spectrum characteristics.For example, the static load is 100Kg. If four isolators are needed, the static load should be at least 25Kg.

3. Energy spectral density of the environment

The vibration isolator has its own resonant frequency, so we refer to the energy spectrum density of the application environment in the selection process, and choose the resonant frequency far away from the energy spectrum to compare several frequencies, so as to avoid the resonance of the load and isolator in the actual work, resulting in equipment and isolator failure.
