Place of Origin:
CHINA
Brand Name:
KACISE
Certification:
CE
Model Number:
KPT100

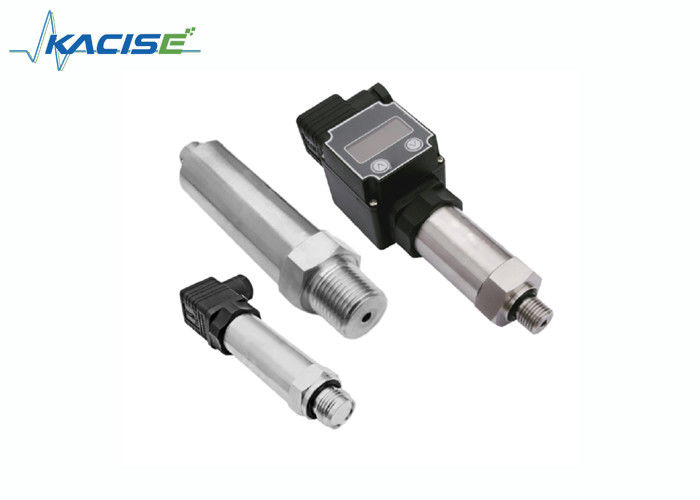

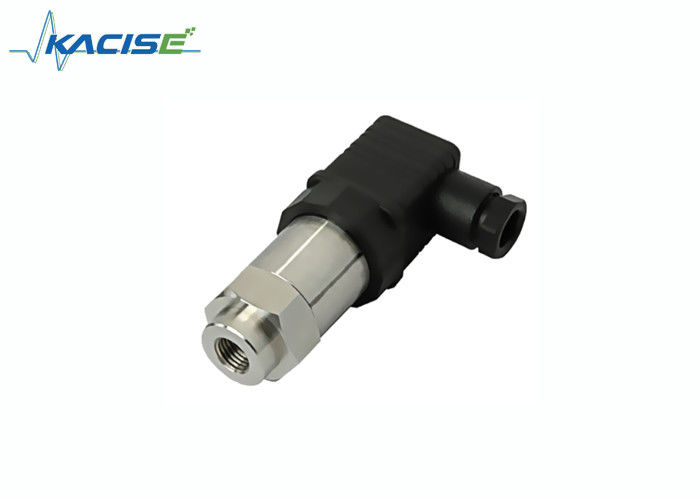

Stainless steel high precision IP65 standard industrial application low cost 4-20mA or 0-10V output pressure transducer
Introduction
KPT100 pressure transmitter uses diffused silicon pressure core as the sensing element, selects the all-digital circuit, the overall performance is stable and reliable, can carry on the long-distance signal transmission.All stainless steel structure, easy to install.Has the extremely high anti-interference and the anti-impact ability. Widely used in pneumatic, hydraulic, water supply, fire protection, environmental protection, medical and other industries.
Application
Specification
| Pressure range | -0.1...0~100Mpa | Accuracy | ≤0.25%F.S |
| Stability | ≤0.1%/year | Overload | ≤200%F.S |
| Power Supply | 12-30VDC | Wiring Way | A variety of optional |
| Protection | IP65 | Relative Humidity | 0~90%RH |
| Environment temperature | -30~80°C | Medium temperature | -40~150°C |
Dimensions in mm
| KPT100 | Universal pressure transmitter | ||||
| Range | Pressure range: -0.1MPa...0～100MPa | ||||
| ［0～X］bar | X: Actual pressure range | ||||
| Code | Signal output | ||||
| I | 4mA~20mA DC | ||||
| V | 0V~5V/10V DC | ||||
| R | RS485 | ||||
| Code | Electric connection | ||||
| H | Hirsman | ||||
| M | M12 | ||||
| P | PG7 Cable | ||||
| Code | Thread connection | ||||
| M20 | M20×1.5 Internal and external thread | ||||
| G14 | G1/4 Internal and external thread | ||||
| G12 | G1/2 Internal and external thread | ||||
Our Company
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
