Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display

Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display

  • Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display
  • Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display
Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display
Product Details:
Place of Origin: CHINA
Brand Name: kacise
Certification: CE,FDA
Model Number: KBU601
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: $0-$2000
Packaging Details: Common package or custom package
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100
Contact Now
Detailed Product Description
Measuring Range: 0-14PH;-2000mv-2000mv Operating Temperature: Transmitter 0-65°C
Power Consumption: <1W Installation Method: Bracket Drop-in Installation
Sensor:Protection Level: Ip68 Output Signal: 4~20 MA; RS485 Optional
High Light:

RS485 Water Quality Sensor

,

GPRS Water Quality Sensor

,

Ph ORP Water Quality Sensor

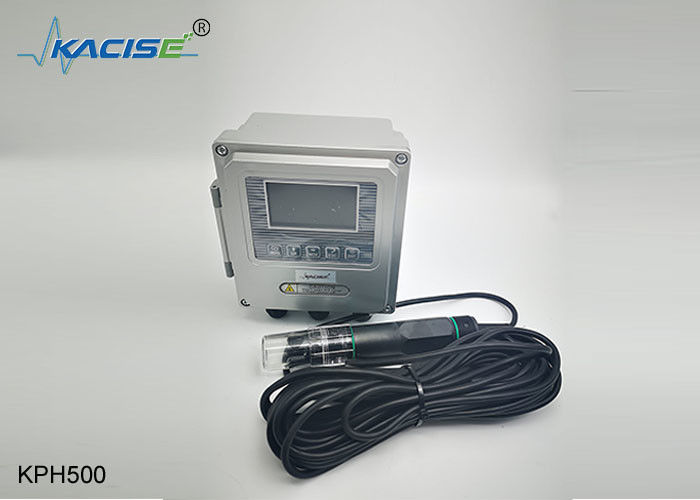

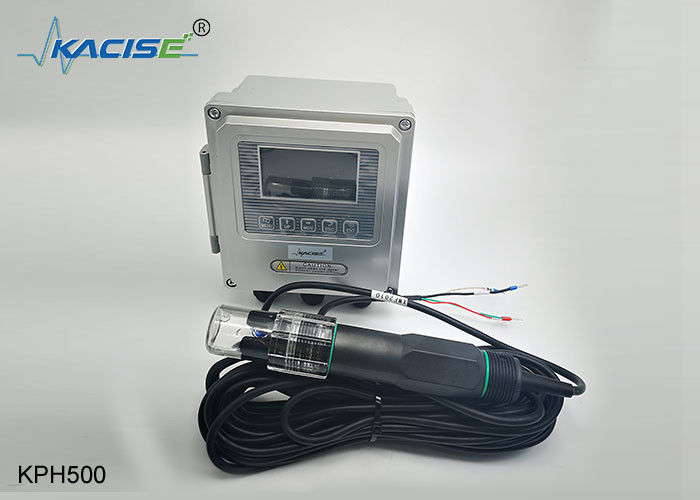

KPH500 Ph/ORP Meter Composite Electrode For Aquaculture POOL Use Water Quality Monitoring Equipment

The smart choice for accurate and reliable online process pH measurement



Production Introduction
The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.



The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,
A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.


Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display 0


This instrument connects to Kaise’s innovative Water Intelligence System, enabling you to seamlessly connect and manage instruments, data, and process – anywhere, anytime. The result is greater confidence in your data and improved efficiency in your operations.






Features


1. LCD display, Chinese menu operation, stable performance and strong reliability
2. High-performance operational amplifier, ORP positive and negative poles are symmetrical, small drift, high accuracy
3. Data is not lost after power off
4. Dual 4-20mA transmission output, relay high and low alarm control output, RS485 communication
Output
5. Simultaneous display of PH value, temperature value, output current value, high alarm value, low alarm value






PH/ORP size structure chart

Host size



Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display 1

















































Sensor size

Ph ORP GPRS online high precision aquaculture wastewater treatment water quality sensor RS485 communication LCD display 2


































































PH/ORP technical parameters




Class Performance PH parameter OPR parameter
Host Measuring range 0-14PH -2000mv-2000mv
Resolution 0.01PH 1mv
Precision 2% Calibration accuracy
Operating Temperature Transmitter 0-65℃
Material PVC
Protection Level I65/IP67(customized version)
Signal Output

485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA

Communication (function option)

Supply Voltage AC220V or DC24V (choose one of the two)
Power Consumption <1W
Display LCD Chinese display/TFT color LCD (customized version)
Installation Method Wall mount
Sensor Temperature Compensation Automatic temperature compensation
Protection Level ip68
Temperature 0-60℃
Sensor Material PVC
Cable Length Dedicated PH cable, standard 5 meters (extendable)
Operating Temperature 0-60℃
Storage Temperature -10-60℃
Installation Method Bracket drop-in installation






Ordering Information Selection Table
KPH500 PH/ORP analyzer
Power supply DC24V
AC220V
Cable length 5m
10m
15m
20m
Temperature compensation Sensor without temperature compensation
Sensor with temperature compensation
Signal output Only 4-20mA
Only 485
Also with 4-20mA , 485 signal output
Special custom signal
KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485 PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication.
KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485

Optional ORP host, with 220V adapter, line between host and sensor
The cable length is 10 meters, the sensor with temperature compensation, and is equipped with only 485 communication signal output.



https://www.kacise.com/product/kws500-orp-sensor/

                                                                                                      Q&A

Why does the same sample give different readings on two pH meters?
PH measurement errors are due to pH electrode, pH meter host, and standard buffer.Due to two pH meter calibration conditions are not the same (e.g., correction made at different times), resulting in slightly different measurements, so use the same buffer at the same time.
Two pH meters were used for calibration, and then the pH value of the sample was determined simultaneously.


What is a composite electrode?
An electrode that combines a pH glass electrode with a reference electrode is called a pH composite electrode.The main advantage of the composite electrode is the combination of two
For one, easy to use.The structure of pH composite electrode mainly consists of electrode bulb, support rod, reference electrode, reference solution, shell and liquid
Junction, electrode cap, electrode wire, joint, etc.
