| Place of Origin: | CHINA |
| Brand Name: | kacise |
| Certification: | CE,FDA |
| Model Number: | KBU601 |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | $100-$2000 |
| Packaging Details: | Common package or custom package |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 |
| Measuring Range: | 0-14PH;-2000mv-2000mv | Precision: | 2% Calibration Accuracy |
|---|---|---|---|
| Supply Voltage: | AC220V Or DC24V (choose One Of The Two) | Power Consumption: | <1W |
| Display: | LCD Chinese Display/TFT Color LCD (customized Version) | Sensor:Protection Level: | Ip68 |
| High Light: | 14PH Water Quality Monitoring Equipment,AC220V Water Quality Monitoring Equipment,ORP water turbidity sensor |
||

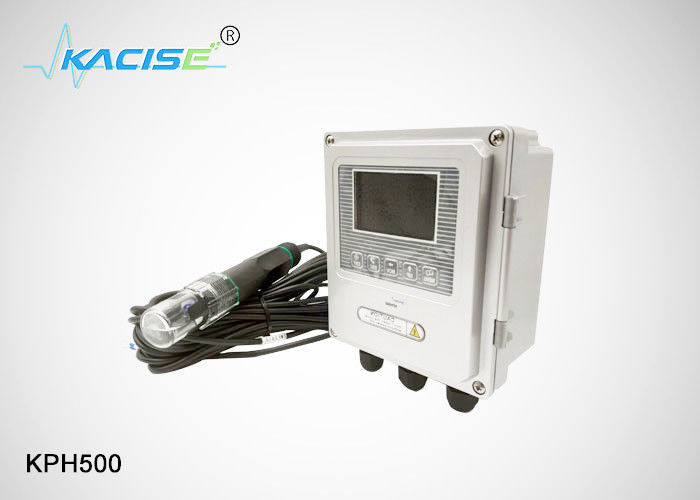

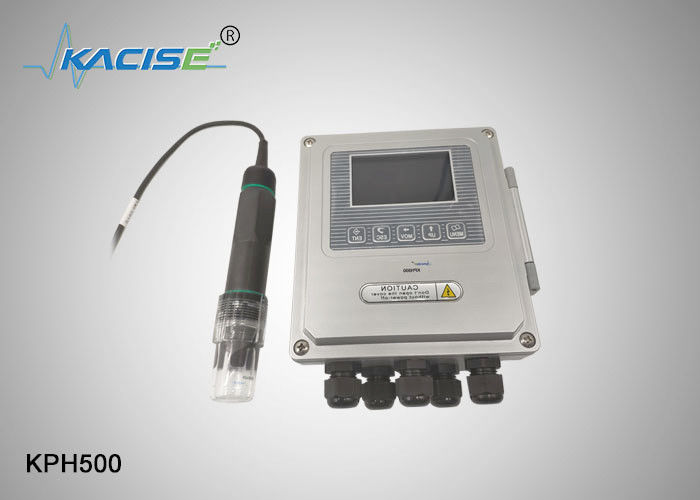

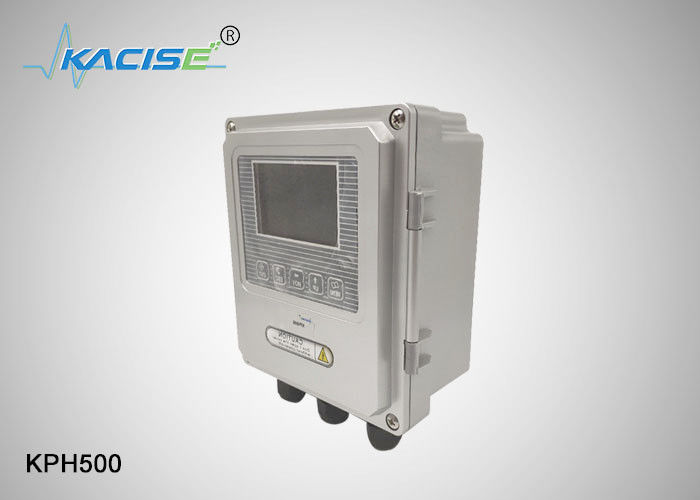

KPH500 Ph Sensor Ph0-14 Ph Test Sensor Module Water Quality Probe Ph water quality monitoring equipment
Production Introduction
The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.
The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,
A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.
Features
1. LCD display, Chinese menu operation, stable performance and strong reliability
2. High-performance operational amplifier, ORP positive and negative poles are symmetrical, small drift, high accuracy
3. Data is not lost after power off
4. Dual 4-20mA transmission output, relay high and low alarm control output, RS485 communication
Output
5. Simultaneous display of PH value, temperature value, output current value, high alarm value, low alarm value
PH/ORP size structure chart
Host size
Sensor size
PH/ORP technical parameters
| Class | Performance | PH parameter | OPR parameter |
| Host | Measuring range | 0-14PH | -2000mv-2000mv |
| Resolution | 0.01PH | 1mv | |
| Precision | 2% Calibration accuracy | ||
| Operating Temperature | Transmitter 0-65℃ | ||
| Material | PVC | ||
| Protection Level | I65/IP67(customized version) | ||
| Signal Output |
485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option) |
||
| Supply Voltage | AC220V or DC24V (choose one of the two) | ||
| Power Consumption | <1W | ||
| Display | LCD Chinese display/TFT color LCD (customized version) | ||
| Installation Method | Wall mount | ||
| Sensor | Temperature Compensation | Automatic temperature compensation | |
| Protection Level | ip68 | ||
| Temperature | 0-60℃ | ||
| Sensor Material | PVC | ||
| Cable Length | Dedicated PH cable, standard 5 meters (extendable) | ||
| Operating Temperature | 0-60℃ | ||
| Storage Temperature | -10-60℃ | ||
| Installation Method | Bracket drop-in installation | ||
| Ordering Information Selection Table | ||
| KPH500 | PH/ORP analyzer | |
| Power supply | DC24V | |
| AC220V | ||
| Cable length | 5m | |
| 10m | ||
| 15m | ||
| 20m | ||
| Temperature compensation | Sensor without temperature compensation | |
| Sensor with temperature compensation | ||
| Signal output | Only 4-20mA | |
| Only 485 | ||
| Also with 4-20mA , 485 signal output | ||
| Special custom signal | ||
| KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485 | PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication. | |
| KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485 |
Optional ORP host, with 220V adapter, line between host and sensor The cable length is 10 meters, the sensor with temperature compensation, and is equipped with only 485 communication signal output. |
|
Q&A
How is ORP calculated?
ORP is determined by measuring the potential of a chemically-inert (platinum) electrode which is immersed in the solution. The sensing electrode potential is read relative to the reference electrode of the pH probe and the value is presented in millivolts (mV).2015年11月19日
How do I lower my ORP?
Factors that can lower ORP in pools.
In pool water chemistry, once added to the water all chlorine oxidizers, including salt, produce hypochlorous acid (HOCl), hypochlorite ions (OClᐨ) and a by product specific to the type of chlorine being used.2019年2月15日
Does pH affect oxidation?
The dissolved oxygen concentration increases and because the reaction in the broth is an oxidation process, the redox is also increasing. Oxidation also increases with pH decreasing but why? When I am supplying oxygen for a long time, redox decreases as well as the pH also behaves the same way.
How can I lower my water ORP?
Lowering the pH to 6.0 raises the ORP, as more hypochlorous acid (HOCl) becomes available. Raising the pH to 8.0 lowers the ORP value, as more hypochlorite ions (OCl–) are present. Maintaining constant pH but adding more chlorine raises the ORP to a plateau of 900 to 950 mV, generally around 25 ppm HOCl.
What is pH?
pH is a measure of how acidic/basic water is. The range goes from 0 to 14, with 7 being neutral. pHs of less than 7 indicate acidity, whereas a pH of greater than 7 indicates a base. The pH of water is a very important measurement concerning water quality.
